47642 1/4 Inch Shank CNC Extension Adapter for 1/4 Inch Shank Router Bits

$54.87

Usually ships on the 2nd business day from order date.
Diameter (D) 5/8
Shank (d) 1/4
Overall Length (L) 2-5/8
Max Rpm 18,000
L1 15/16
L2 1-3/16
L3 1/4
D1 1/4
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685476420 SKU: 47642 Categories: , ,

Description

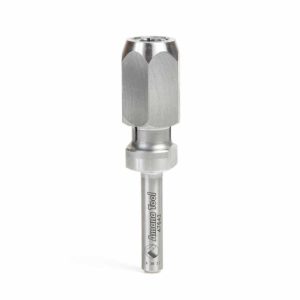

CNC Extender Adapter made especially for 1/4″ shank router bits.

Total Indicated Run-out (TIR) is 0.00118″ (0.03mm)

Max RPM 18,000

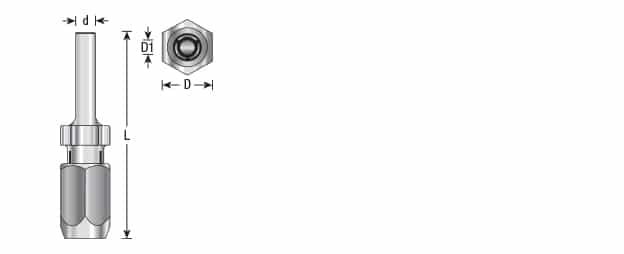

Specifications

Diameter (D) 5/8
Shank (d) 1/4
Overall Length (L) 2-5/8
Max RPM 18,000
L1 15/16
L2 1-3/16
L3 1/4
D1 1/4
