D-23LT miniTron

$5,150.00 $4,370.27

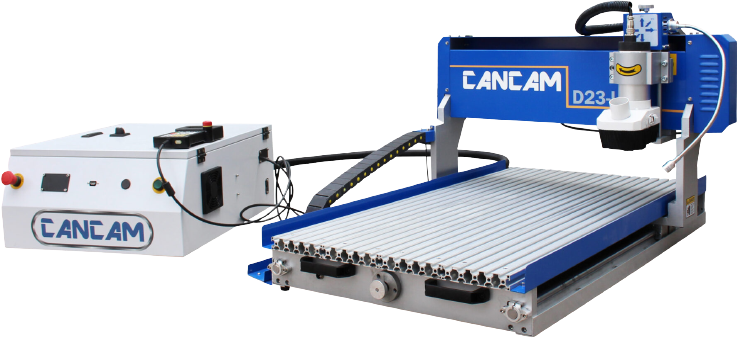

The miniTron D-23 desktop CNC router with optional fold-out legs fits into tight work areas. Perfect for small manufacturing jobs and home or hobbyist applications.

Features:

  • High Speed Machining
  • Hand-Held Pendant (NK105 G3)
  • Fits On A Desktop
  • Detachable Legs

Custom order your machine today!

Inquire Now

  • Name: * Required
  • Collapsible Legs: * Required
  • This field is for validation purposes and should be left unchanged.

SKU: miniTron D-23-1 Categories: , Tag:

Description

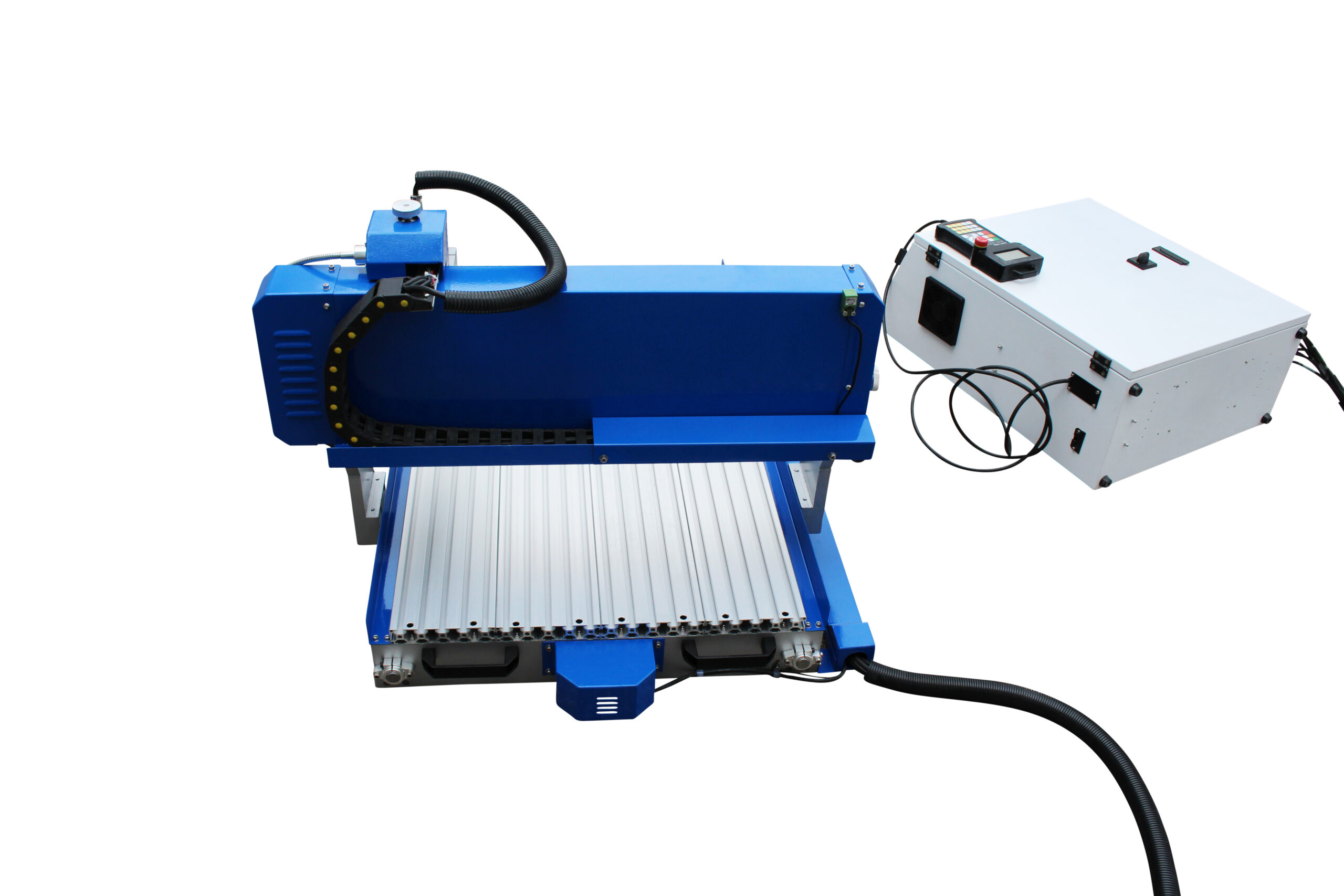

The miniTron D-23LT desktop CNC router  fits into tight work areas. Easy operation with convenient hand-held pendant. Perfect for small manufacturing jobs and home or hobbyist applications.

The constant power air-cooled high frequency spindle performs reliably at high speeds. Low noise operation, low maintenance and long service life is to be expected. .

Technical Specification

Specification Description

Physical Features

Machining Bed 25 in x 37 in/63.5 cm x 93.98 cm
Machine Footprint 54.70 x 37.08 x 27.59″ / 139 x 94.2 x 70 cm
Table Top T-Slot Table
Gantry Height  4.25in/15.24 cm or 9.5 in/24.13cm

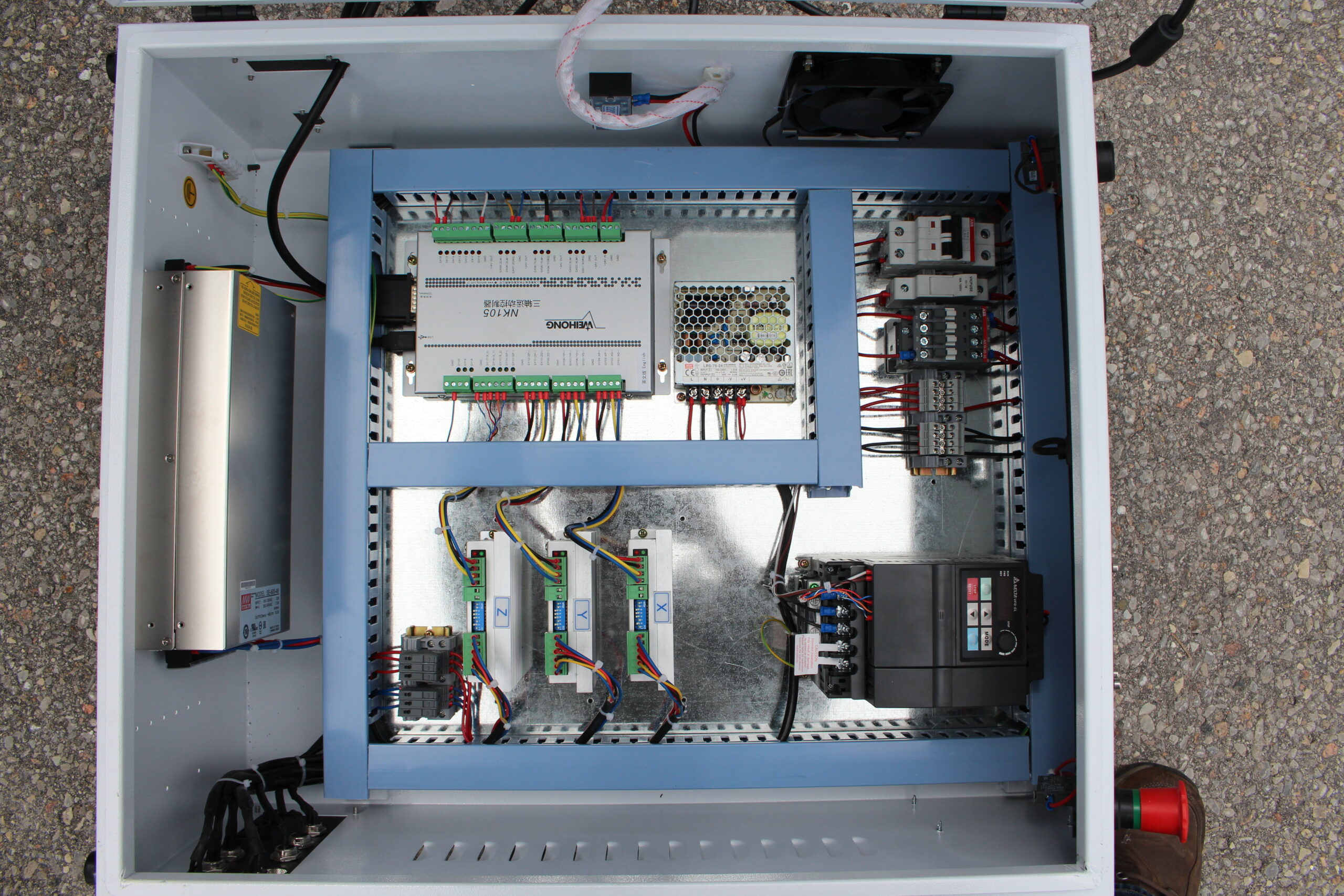

Electrical Cabinet Size  26.5 x 19.7 x 9.85 in / 67 x 50 x 25 cm
Weight 250lbs/115 kg
Colour White/Blue
Table Structure Cast Aluminum

Controller

Interface NK105 G3
Type Handheld DSP
Screen Size 4 in/10.16 cm
Touch Screen No
Inputs USB

Spindle

Model Generic
Power 2.2 kW / 3 HP
Max Speed 24000 RPM
Variable Frequency Drive Delta VFD B – 22E21VFD022E21A
Cooling System Air Cooled

Drive System

Motor & Driver (X & Y) Yako YKC2405M
Motor & Driver (Z) Yako YKC2405MS
Type Micro Stepper NEMA 34
Power
Transmission (X & Y) – TBI Ball Screw Drive
(Z) – TBI Ball Screw Drive
Round Guide rails for all axes
Rapid Speed  300 IMP
Max Cutting Speed 240 IMP

Tool Change

Automatic No
Tool Holder Positions 0

Accuracy

Positioning 0.0079 in/0.2 mm
Repositioning 0.0020 in/0.05 mm

Power

Voltage 220V Single phase 60Hz
Amperage (Standard)
Total Power 3.5 kW
Total Amperage 16A

Standard Features

  • NK105G3 Pendant 2

    NK105 DSP Controller

    The NK105 is an embedded IPC-based controller which provides a wide range of solutions and convenient hand-held pendant for flexible manual control.

  • CNC Router Ball Screw

    TBI Ball Screw Drive

    High efficiency TBI ball screw drive, for smooth and durable performance. Long service life with minimal maintenance.

  • CNC Router Variable Frequency Drive Delta

    Delta Variable Frequency Drive

    Delta Variable Frequency Drive for constant torque thanks to Auto Torque Boost & Slip Compensation.

  • CNC Router Ball Screw Drive TBI

    TBI Ball Screw Drive

    High efficiency TBI ball screw drive, for smooth and durable performance. Long service life with minimal maintenance.

  • CNC Router Servo Driver Yako

    Yako Drives

    High performance Yako Stepper Motor Drive for reduced noise and increased steadiness.

  • CNC Router Linear Guide Rails Hiwin

    PMI/THK Linear Guide Rails

    THK guide rails for precision machining at high-speeds. Energy-saving operation and long service life.

Options

Configuration Options
Spindle Upgrade 2.2KW HSD Spindle
3KW HSD Spindle
Table Top Options Matrix Vacuum Table
T-Slot Vacuum Combo Table
T-Slot Table
Vacuum Pumps Airtech Vacuum Pump 3BA1500-7AT36 – 150 cfm- 3.4 HP
end vacuum capability- 8”Hg
BlackBox Vacuum Pump
Gantry Height Increase 10in
12in
Add-Ons
Dust Collection
Unist Mister System
Starter Tool Set
Rotary Axis
Controller Upgrade – Mach 3 with touch Screen
Detachable Legs
