Sale!

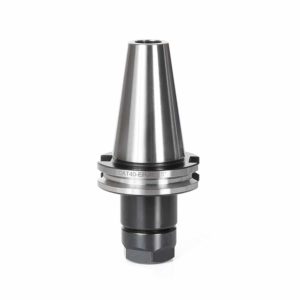

HO-206 CAT 40 High Precision ER Collet Chuck Tool Holder

$99.00 $89.00

  • Made from alloy steel hardened to 54 – 56rc
  • Tool Holders Balanced to G2.5 at 25,000 RPMs
  • Coolant thru capability
  • Concentricity is less than .0002 at collet face
  • Rear thread for pull stud is 5/8 – 11
  • Spring collet not included

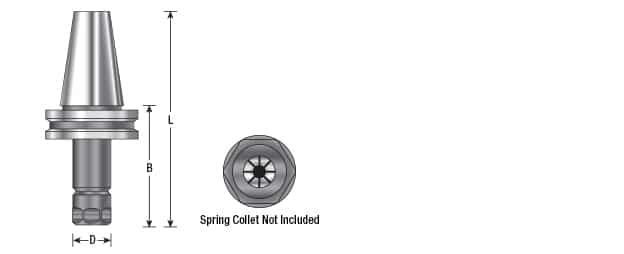

Description

Tool No. HO-206

(D) Diameter 35mm
(B) Cutting Height 2.5″
Overall Length (L) 165.1mm
Collet Standard ER20
Adapter Standard CAT 40
Thread 5/8 – 11
