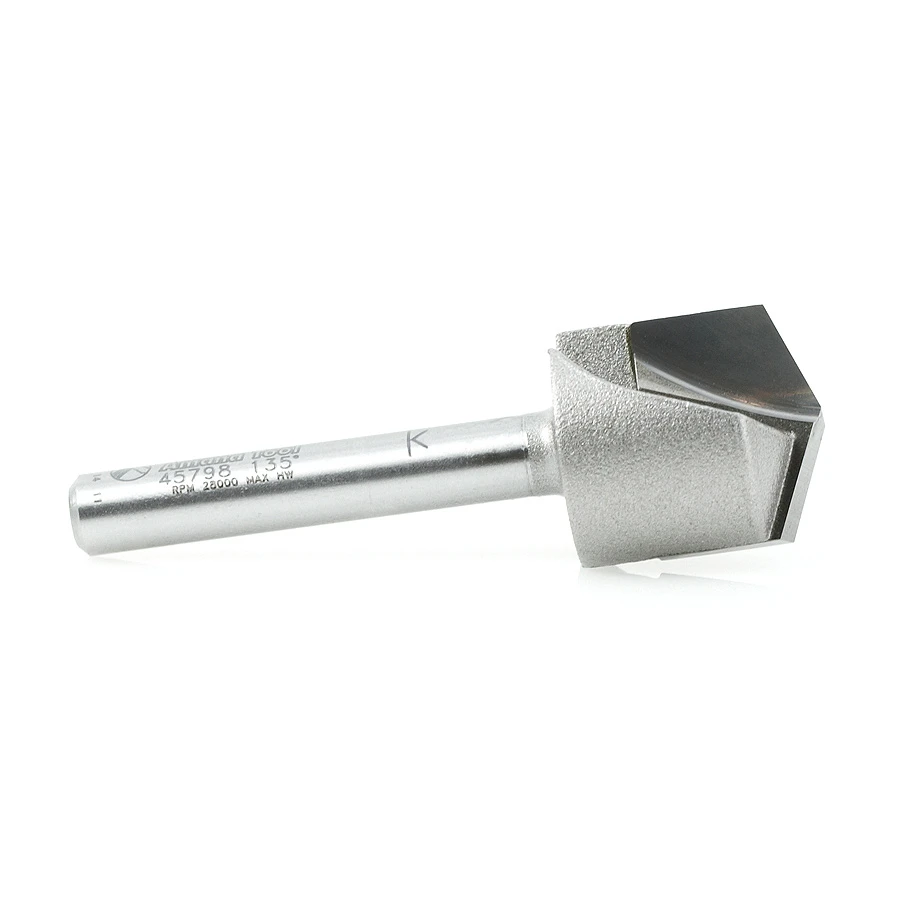

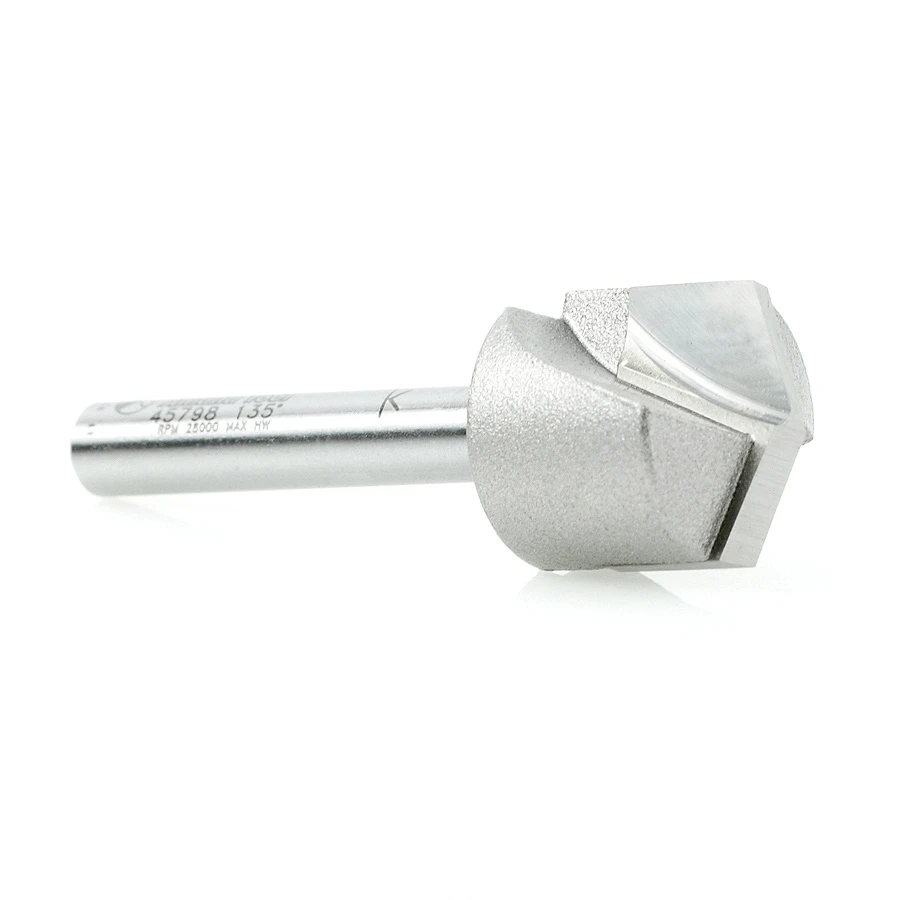

45798 Carbide Tipped Double Edge Folding V Groove 22.5 Deg x 0.080 Inch Tip Width x 23/32 Dia x 1/4 Inch Shank

$77.55 $58.16

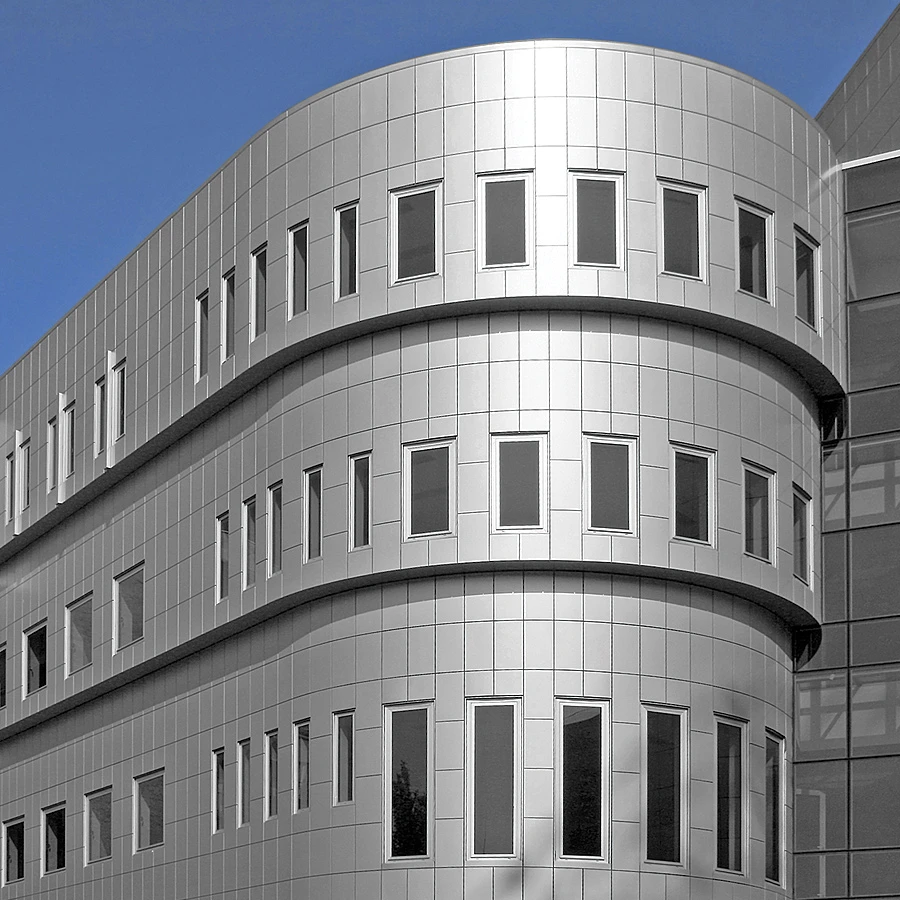

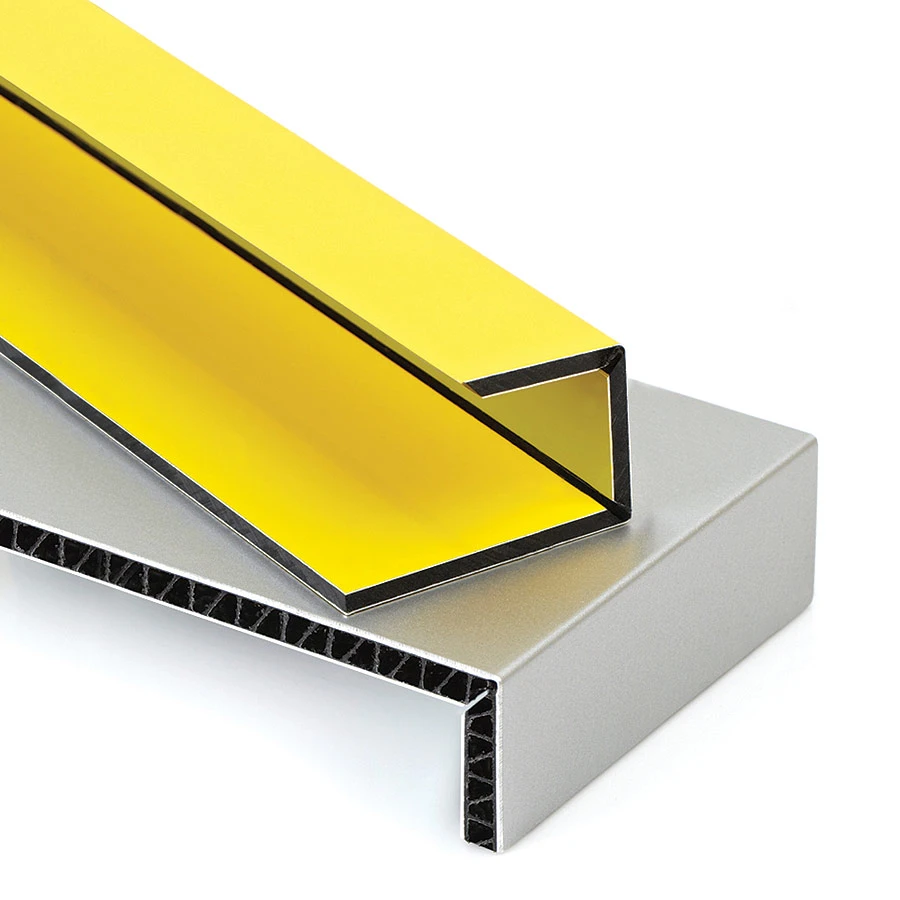

These bits are widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand.

Designed for cutting and scoring aluminum sandwich materials including:

  • Aluminum, Clay, Zinc & Wood Composite Panels
  • Aluminum Composite Materials (ACM)
  • Aluminum Composite Panel (ACP)*
  • ALPOLIC® Copper Composite Material (CCM)
  • Alucobond®
  • Alupanel®
  • Dibond®
  • Durabond**
  • e-panel™
  • Etalbond®
  • Phenolics
  • Plastic/Acrylic
  • Plexiglas®
  • Titanium Composite Material (TCM)
  • Wood

*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.

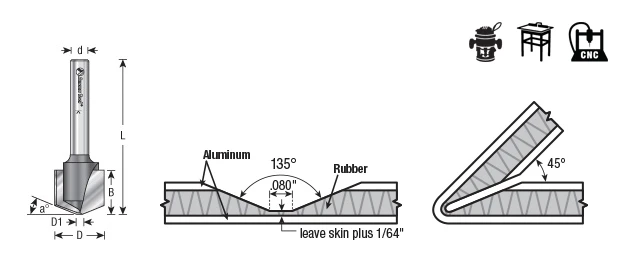

Tool No. 45798

Diameter (D) 23/32
Angle (a°) 135°
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2-1/4
B1 9/64
Type V Groove
Max RPM 28,000
Flutes 2
D1 0.080″
a1° 22.5°
Feed Rate IPM 120″

Speed and Feed Rate

Double Edge ‘V’ Grooving for ACM Materials Speed and Feed Chart

Download PDF
