1.5HP V-System 1500 35 Gal. Freestanding HEPA Cyclone Dust Collector

$5,124.00

  • Industrial 230V U.S. made fan motor provides ample CFM for up to 2 tools at once with 4″-6″ dust ports. Includes RF remote control starter.
  • High efficiency cyclone (over 99% separation) with smooth, compound molded surface.
  • Ultra-quiet noise level with included sound filters – only 74 dBA at 10 feet.
  • 35 or 55 gallon dust bin with quick-release lid and automatic fill level indicator.
  • HEPA-certified filter media with non-stick membrane for easy cleaning.
  • Durable, lightweight construction allows for quick and easy installation.
System Configuration Freestanding Leg Kit with 35-Gallon Steel Drum, Freestanding Leg Kit with 55-Gallon Steel Drum, Wall Mounting Bracket with 35-Gallon Steel Drum, Wall Mounting Bracket with 55-Gallon Steel Drum
Inquire Now
SKU: XXVM001500 Categories: ,

Description

Quiet, Compact, and Powerful – Ideal for Small Personal Workshops!

2019 Edition – New features for improved efficiency and ease of use!

This system is ideal for use in small 1-2 man shops operating tools such as lathes, planers, radial/miter saws, and more!

The V-System’s molded static dissipative resin construction speeds up and simplifies system assembly, maximizes airflow performance, and significantly reduces noise levels.

Learn how the V-System helped Kawneer North America improve their production workflows. Read the case study.

Included Features & Components:

  • Industrial 3HP 230V U.S. Made Motor (Only have 110V power?)
  • Magnetic Starter w/ Overload Protector
  • Wireless RF Remote Control Keyfob
  • High-Efficiency Molded Cyclone Separator
  • HEPA-Certified Filter Media
  • Stacking Sound Filter & Drop-in Silencer
  • Compact Steel Angle Frame Stand or Wall Mounting Bracket
  • 35 or 55-Gallon Reinforced Steel Dust Bin
  • Dust Sentryâ„¢ Bin Fill Level Indicator
  • D.I.Y. Ductwork Design Guide
  • 1 Year Limited Warranty

Features

Continuously High Airflow Performance

Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That’s why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior than the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.

  • High-efficiency, U.S. made fan motor
  • Delivers ample airflow for collecting from up to 2 machines with 4″ to 6″ dust ports.
  • Industrial brushless motor designed for continuous duty
  • Radio frequency (RF) remote control works through walls up to 100 feet away
  • System’s inlet and outlet rotate independently at 45 degree increments to suit your shop’s needs.
  • Low pitch noise level provides ideal operator comfort

Streamlined Integrated Cyclone Separator

The V-System features an ultra-high efficiency cyclone which pre-separates up to 99% of fine dust and bulk debris, removing it from the airstream and collecting it safely below the cyclone.

  • Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
  • Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
  • Smooth, molded design reduces air turbulence to improve airflow performance and lower overall noise output.
  • 7″ dia. neutral-vane inlet for use with common 6″ ductwork layouts (reducers available).
  • Patented “V-Shape” cyclone design minimizes the system’s overall height while maintaining airflow and separation efficiency.

High Quality & Serviceable Filtration

The V-System system uses certified H12 HEPA media cartridge filters that are specifically designed for dust collection applications – providing unbeatable airflow and filtration performance.

  • We full stand by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
  • Stacking Sound Filter and internal silencer reduce overall noise output of the system by up to 6 dBA. The V-3000 is one of the industry’s quietest dust collection systems!
  • Patented Flame Guardâ„¢ safety mesh rapidly dissipate any heat generated by a deflagration within your filter, helping to comply with future planned NFPA fire safety codes.
  • Fine dust pan captures residual dust that falls off the inside of the filter. Can be removed easily for cleaning after reverse blowing compressed air into the pleats.

Compact, Configurable Design

This unit is equipped with either a Freestanding Leg Kit or a Wall Mounting Bracket to suit the space needs of any shop.

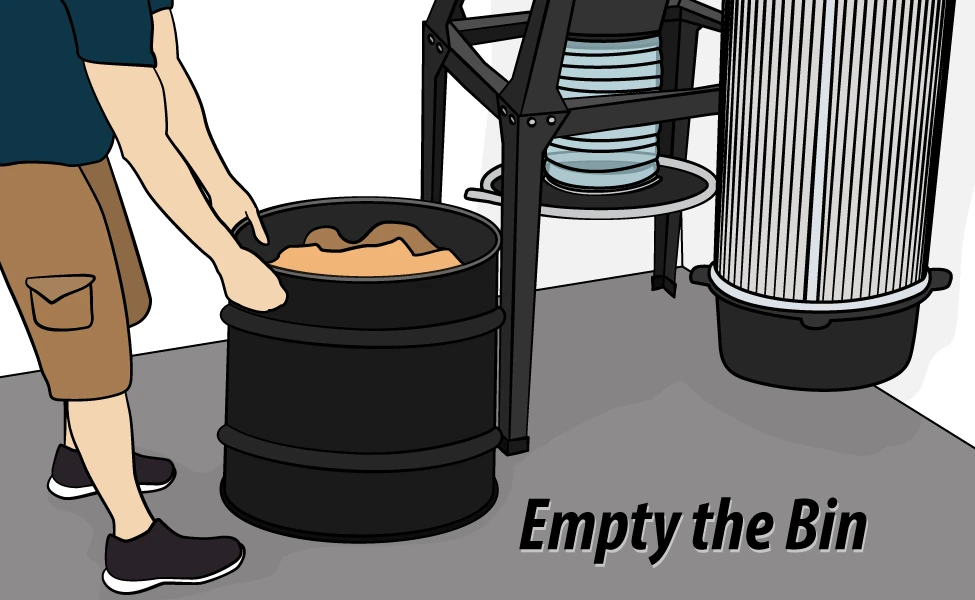

Convenient Pull-Out Dust Bin

Our dust collection bins are made simple for a reason: convenience. With no assembly required, these robust, steel drums are quick and easy to use when disposing of dust and debris. The dust collector comes equipped with a 35 gallon steel drum – best for holding a large amount of dust and debris without being overwhelming when full. Drum dollies and bag holding sleeves are also available to make emptying the drum cleaner and more efficient.

Specifications

Horsepower 3HP
Motor Type U.S. TEFC Motor
Voltage 230V
Amperage (Typical) 13A
Phase (Pre-Wired) 1-Phase
Frequency 60Hz
Power Connector
Power Cord Length 100 feet
Impeller Type Single-piece, backward inclined, non-sparking/non-ferrous
Impeller Size 15" Dia.
Real CFM Rating 1,349 Actual CFM at 2.3" WC
Free Fan CFM Rating 2,940 CFM
Maximum Suction 13" WC
Max. Open Blast Gates 2 Gates
Noise Level 74dBA @ 10 ft
Filter Type G.E. H12 HEPA Media
MERV Rating MERV 16 ±
Waste Capacity 35 Gallons, 55 Gallons
Remote Control Included
Primary Build Materials Static Dissipative Polyethylene
Static Resistance Rating Static Dissipative
Color Black
Inlet Size 7" OD
Outlet Size Square ID: 7-3/8"(W) x 6-3/8"(H)
Discharge Size 7" Dia.
Width 47
Depth 30"
Height 88" (35 Gal.)
100" (55 Gal.)
Height to Center of Inlet 63" (35 Gal.)
75" (55 Gal.)
Contents Blower Motor Assembly, Magnetic Starter, Fan Housing, Filter Plenum, Stacking Sound Filter, Internal Silencer, FlameGuard Cartridge Filter, Cyclone Separator, Steel Dust Bin, Bin Level Indicator, Remote Control, Hardware, Freestanding Leg Kit OR Wall Mounting Bracket
Country of Manufacture United States
Warranty Information 1 Year Limited Warranty
Applicable Patents US Pat. #8496719, #8377160, #8514090, #9370740, #D908854, #7247180, and Patent Pending
