C2 Series: 4x8 and 5x10 CNC Routers for Sale in Canada
The C2 Series are engineered and built for production applications at an impressive price point. They have a number of key design features that allow for fast, accurate cutting and guarantee long-term reliability.
If you need CNC routers for woodworking, signage manufacturing, wood slabbing or CNC engraving our C2 offers a wide range of solutions with a 8 and 10 piece tool change system for increases production or intricate jobs.
Quality components, such as helical rack & pinion with shimpo gear reducers, provide durable, high-speed, and precision performance through continuous duty. Minimal maintenance required to keep you up and running.
What makes this machine unique is the availability as a single phase CNC router.
Available in ATC (auto tool changer) and manual tool changer. Option to upgrade from manual to full ATC at a later date
Leadshine 7 Series servo motors deliver high performance and longevity
T-slot and vacuum table for doubly immobilizing production material
Solenoid actuated vacuum zones
Centralized lubrication system
Helical rack and pinion drive
Up to 15” gantry clearance
Available in 4x8’, 5x10’ and 5x12’
Custom sizes available up to 8’x30’
Available in single phase and 3 phase power

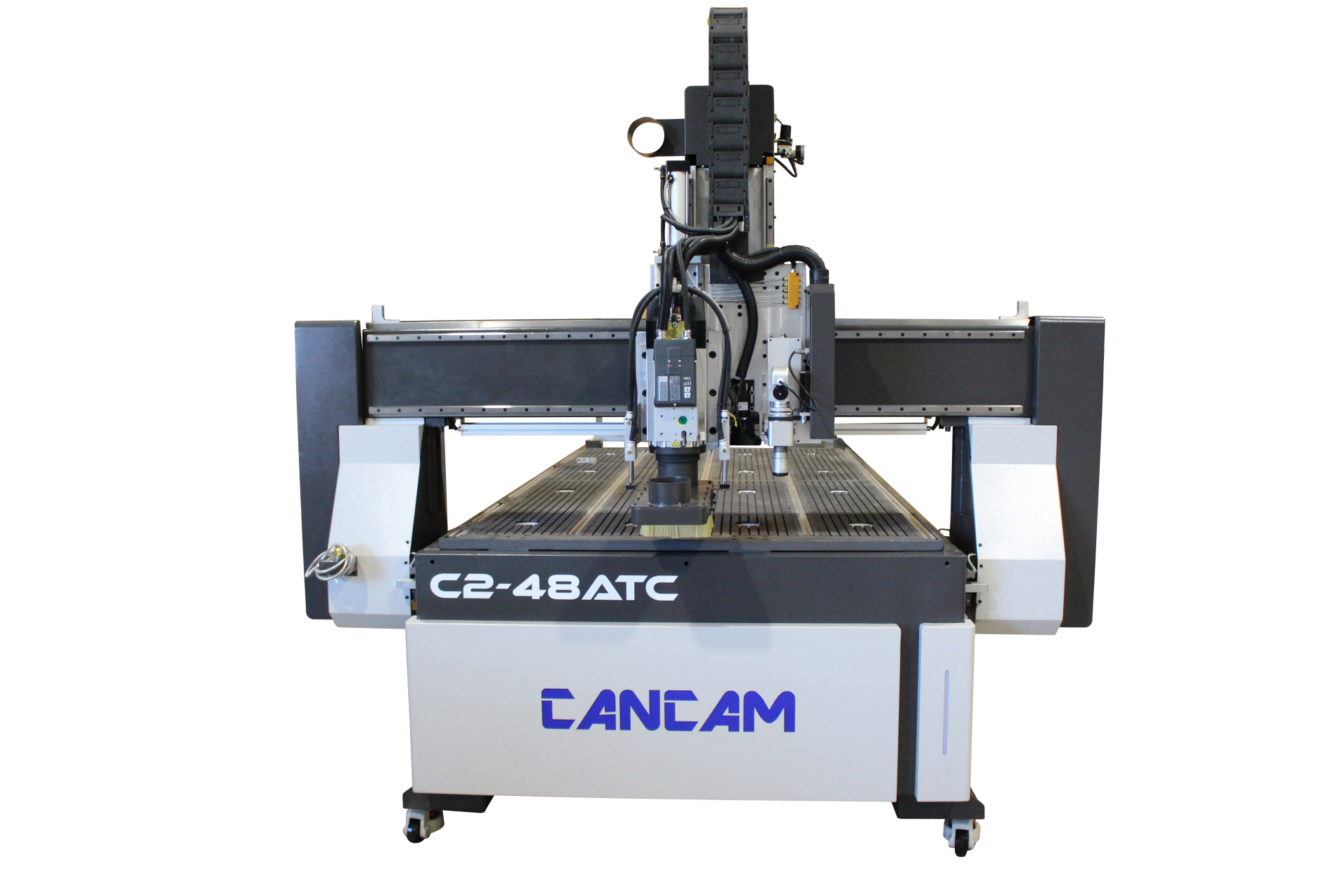

C2-48ATC
The C2-48ATC is a 4×8’ autotool change CNC router is engineered and built for production applications. Key design features allow fast, accurate cutting with guaranteed reliability.
CanCam includes a number of standard feature such as pneumatic solenoid-actuated vacuum zones, a plug and play outlet for a rotary lathe with a spare servo driver, pop up location pins, easy sheet rollers, castors, a T-slot/vacuum combination table, helical rack and pinion motor mount, planetary gear vs. belt driven gantry, centralized lubrication along with two calibrators, one fixed and one mobile.

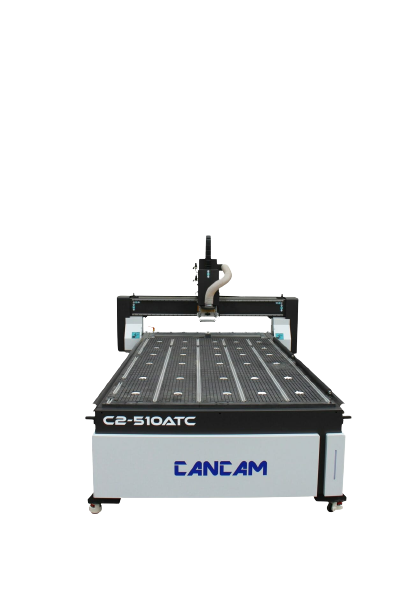

C2-510ATC
The C2-510ATC is a 5×10’ autotool change CNC router is engineered and built for production applications. Key design features allow fast, accurate cutting with guaranteed reliability.
CanCam includes a number of standard feature such as pneumatic solenoid-actuated vacuum zones, a plug and play outlet for a rotary lathe with a spare servo driver, pop up location pins, easy sheet rollers, castors, a T-slot/vacuum combination table, helical rack and pinion motor mount, planetary gear vs. belt driven gantry, centralized lubrication along with two calibrators, one fixed and one mobile.
C2-48ATC-CCD
CCD stands for charge coupled device camera. This technology is typically used to help guide your tangential and oscillating knives with the ability to overlay your cutting on screen to see the results before the cut. This is the perfect CNC router for signage or print and foam industry.
The camera registration system can quickly find and recognize conventional registrations marks to adjust the cutting path, providing exact alignment and high accuracy. It enables accurate cut-outs of digitally printed images.

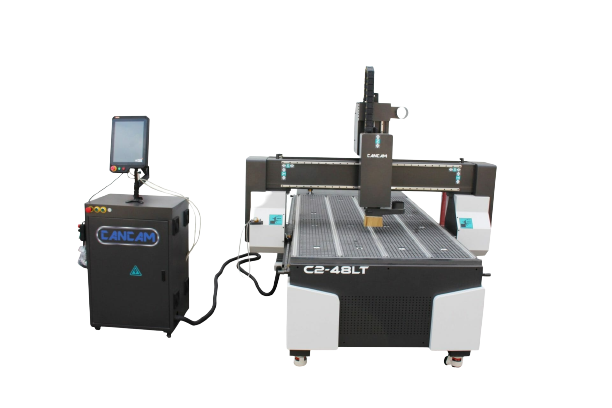

C2-48LT
The C2-48 LT is a modular CNC router, with a working envelope of 4×8′ at a price point accessible to individuals and small businesses looking to add automation to their building processes. Unlike other cheap CNC routers on the market this is a great solution for an affordable CNC router that delivers comercial grade results.
A modular CNC router box base frame design allowing installation through a single 36″ doorway (allowing the machine to be separated into 3-4 pieces.
