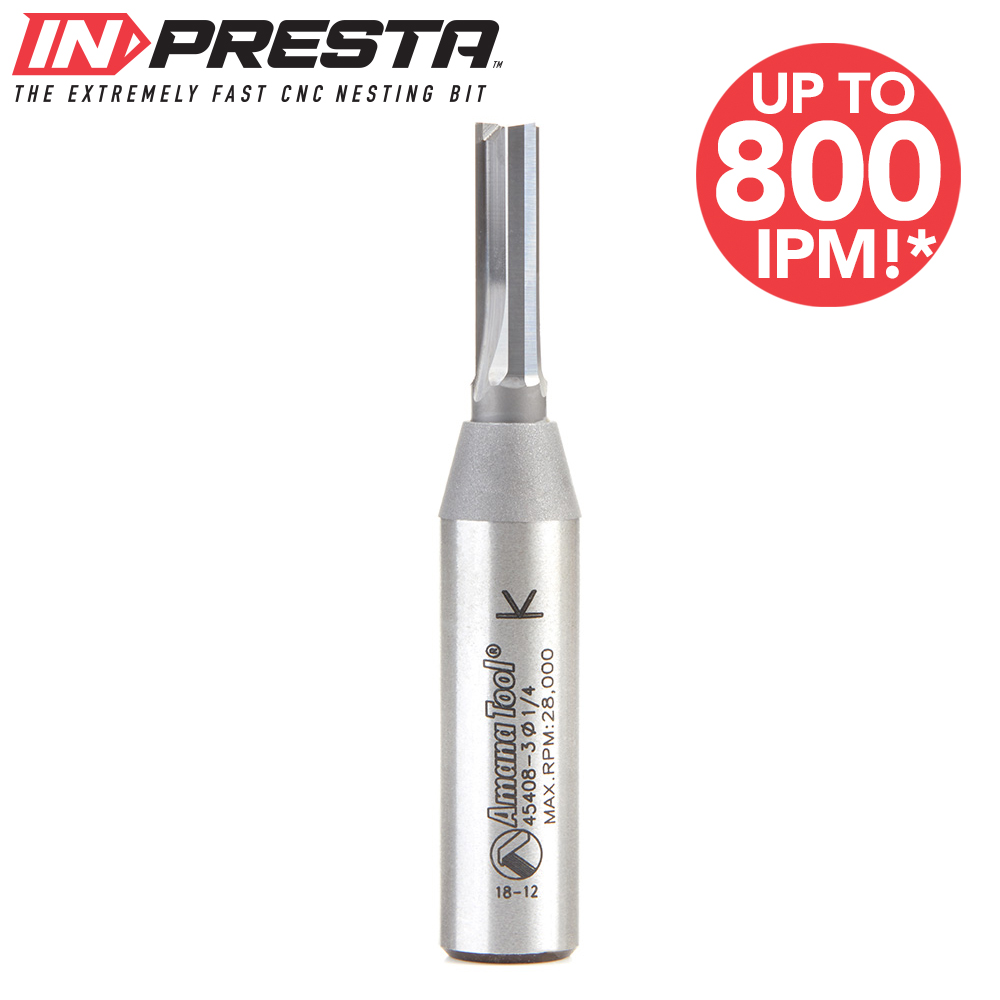

45408-3 CNC In-Presta™ 3 Flute Solid Carbide Cutting Edge Straight Plunge High Production 1/4 Dia x 3/4 x 1/2 Inch Shank
$81.29
Usually ships on the 2nd business day from order date.
| Diameter-d | 1/4 |
|---|---|
| B-cutting-height | 3/4 |
| Shank-d | 1/2 |
| Overall-length-l | 3 |
| Flutes | 3 |
Description
Up to 800 inches per minute!*
For cutting 3/4″ material thickness in one pass
3 Flute for improved surface finish
Only 1/4″ diameter equals minimal material waste
Use a three-flute bit where fine finish is paramount. Three flutes balance the bit, eliminating vibration that degrades the cut finish. Three cuts per revolution yield a smooth surface and increased feed rates. 45408-3 features a solid carbide cutting edge.
- Excellent for nesting and grooving at an extremely fast feed rate which increases cost savings
- 1/4″ cutting diameter CNC nesting router bit with solid carbide cutting edges brazed into steel 1/2″ shank
- The unique design contributes to superb performance and excellent cutting results
- Designed primarily for high speed CNC production
- Long lasting, fine micrograin extra hard carbide resulting in long tool life before re-sharpening
Excellent for Cutting:
- Laminated Particle Board, MDF & Melamine: Feed rate up to 800 IPM** at 18,000 RPM***
- Plywood: Feed rate up to 500 IPM** at 18,000 RPM***
*Up to 800 IPM feed rate at 18,000 RPM cutting laminated particle board. Rate may change depending on material and CNC machine type.
**IPM: Inches Per Minute
***RPM: Revolutions Per Minute

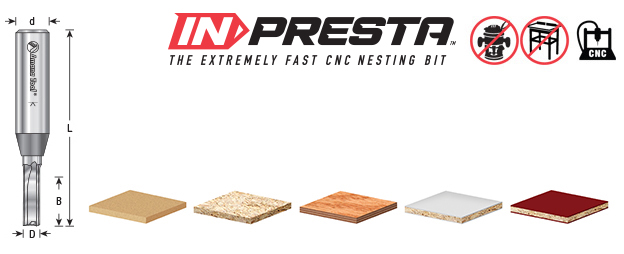

Specifications
| Diameter (D) | 1/4 |
| Cutting Height (B) | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3 |
| Flutes | 3 |
