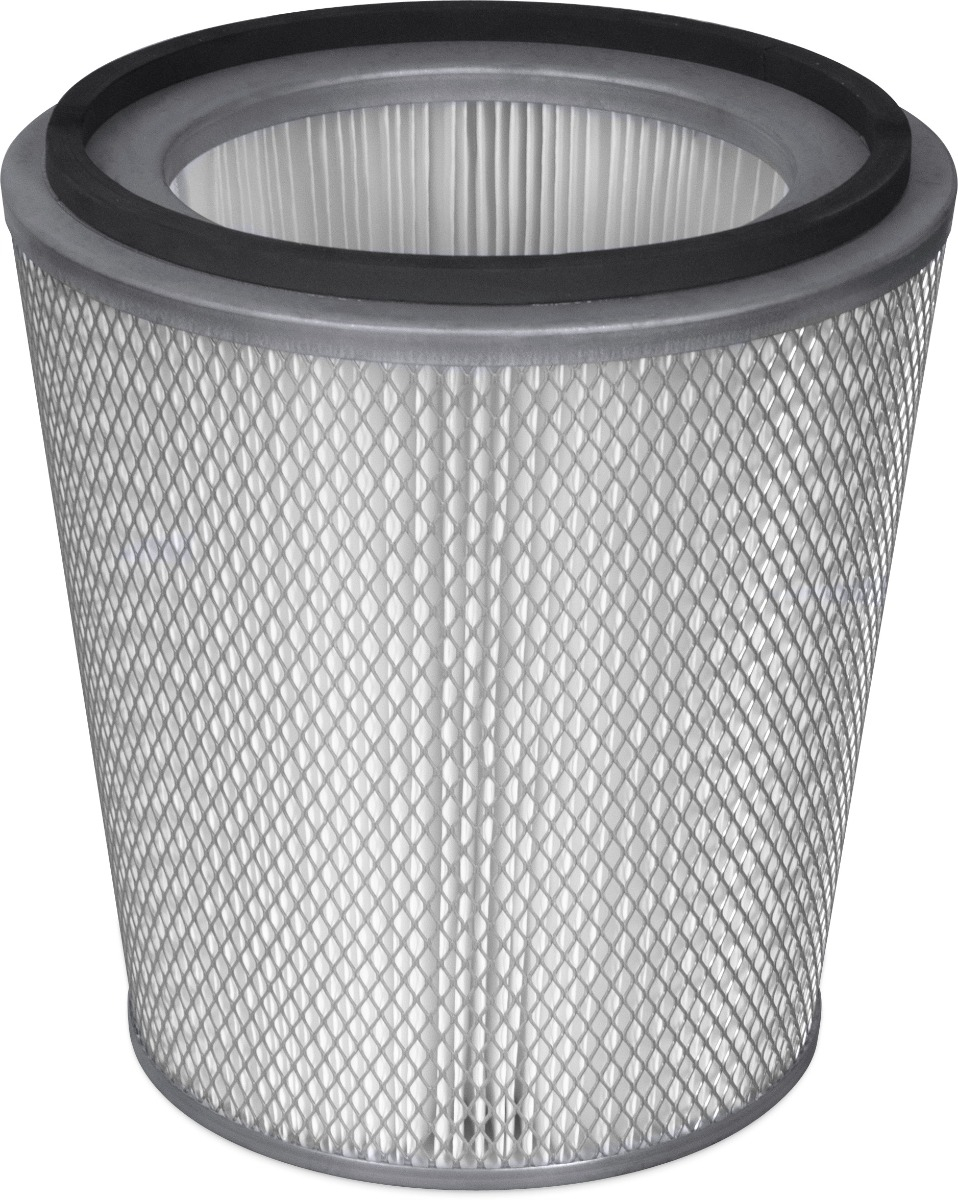

13″ x 13″ Conical HEPA Cartridge Filter w/ Pressure Vent
$420.00
Replacement filter for the CC500 Dust Extractor product line. G.E. certified HEPA filter media provides premium air quality for use with silica dust collection. Unique, conical design features wide-spaced pleating with non-stick coating for quick and easy cleaning. Features port for connecting to the CC500’s filter pressure sensor. Not compatible with the Supercell High-Pressure Dust Collector.
Usually ships in 2-4 weeksRecommended Product
-
$6738 -
-
$450
Description
OSHA Compliant, Premium HEPA Media
Oneida Air Systems’ CC500 Dust Extractors are equipped with premium HEPA media cartridge filters specifically made for fine dust collection applications. Unlike many other filters on the market, our filters work at peak efficiency right out of the box, require zero pre-loading, and are easily serviceable.
- Independently tested G.E. H12 HEPA filter media
- Unique conical shape greatly facilitates dust release during pulse cleaning
- Built-in pressure vent connects to the CC500’s automated filter pressure sensor to determine cleaning intervals.
- Specially designed for high airflow performance with minimal pressure drop
- Pleats are wide spaced and coated with a non-stick, PTFE membrane for easy cleaning using reverse blown air
- Durable polyester pleating material with external, reinforcing steel wire frame
Not compatible with the Supercell High-Pressure Dust Collector.
Specifications
| Filter Type | G.E. H12 HEPA Media |
| Filtration Efficiency | 99.97% @ 0.3 microns |
| Filter End Type | Single Open Ended |
| Total Filtration Area | 40 sq ft |
| Primary Build Materials | Galvanized Steel, Polyester |
| Reinforcement | Exterior Metal Wire Screen |
| Color | White |
| Shape | Conical |
| Inner Diameter | 8.375" |
| Width | 13" |
| Depth | 13" |
| Height | 13" |
| Country of Manufacture | United States |
