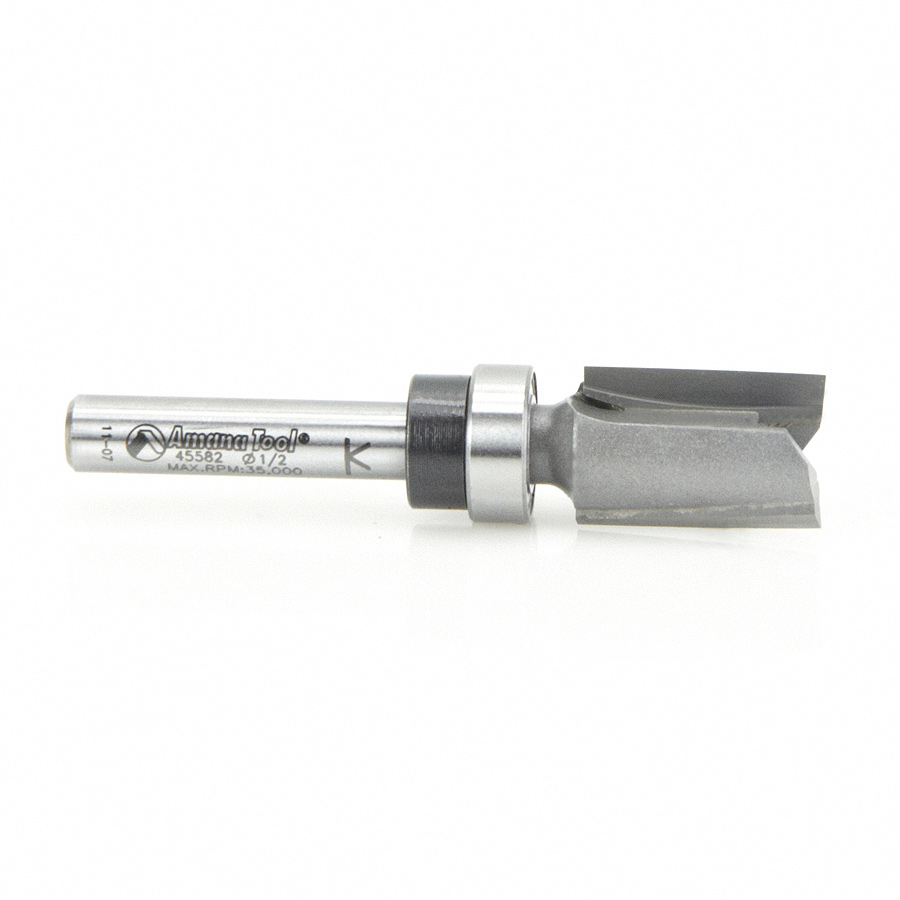

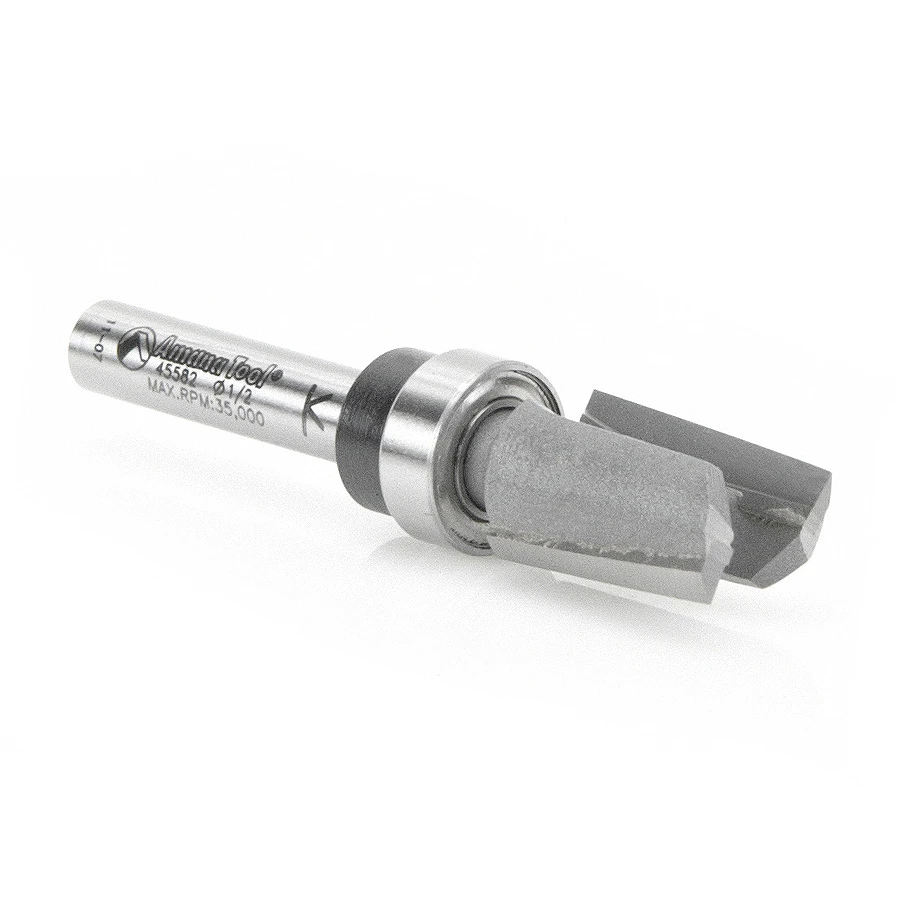

45582 Carbide Tipped Mortising 1/2 Dia x 3/4 x 1/4 Inch Shank with Upper BB

$57.64

There is no faster method for producing multiple mortises than with a template. And the accuracy achieved with a template is unparallel. These mortise bits are specially designed for use with templates, both linear and curved.If you’ve ever used a bushing with template work then you’ll appreciate these bearing-guided bits; there’s no need to calculate offset – ever. Instead, the mortise is sized exactly to the template. And, unlike a bushing on the router sub-base, the guide bearing is always concentric to the cutting circle of the bit. This ensures precise cuts each and every time.

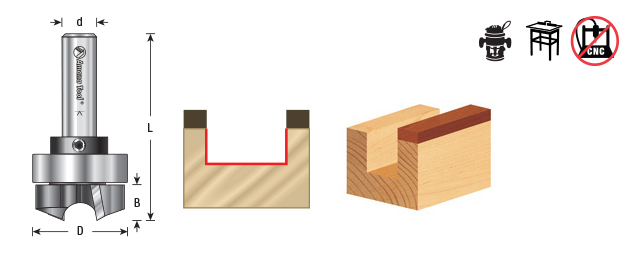

Diameter (D) 1/2
Cutting Height (B) 3/4
Shank (d) 1/4
Overall Length (L) 2-3/8
Replacement Collar 47724
Replacement Bearing 47701
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685455821.0 SKU: 45582 Categories: ,

Specifications

Diameter (D) 1/2
Cutting Height (B) 3/4
Shank (d) 1/4
Overall Length (L) 2-3/8
Replacement Collar 47724
Replacement Bearing 47701
Flutes 2
