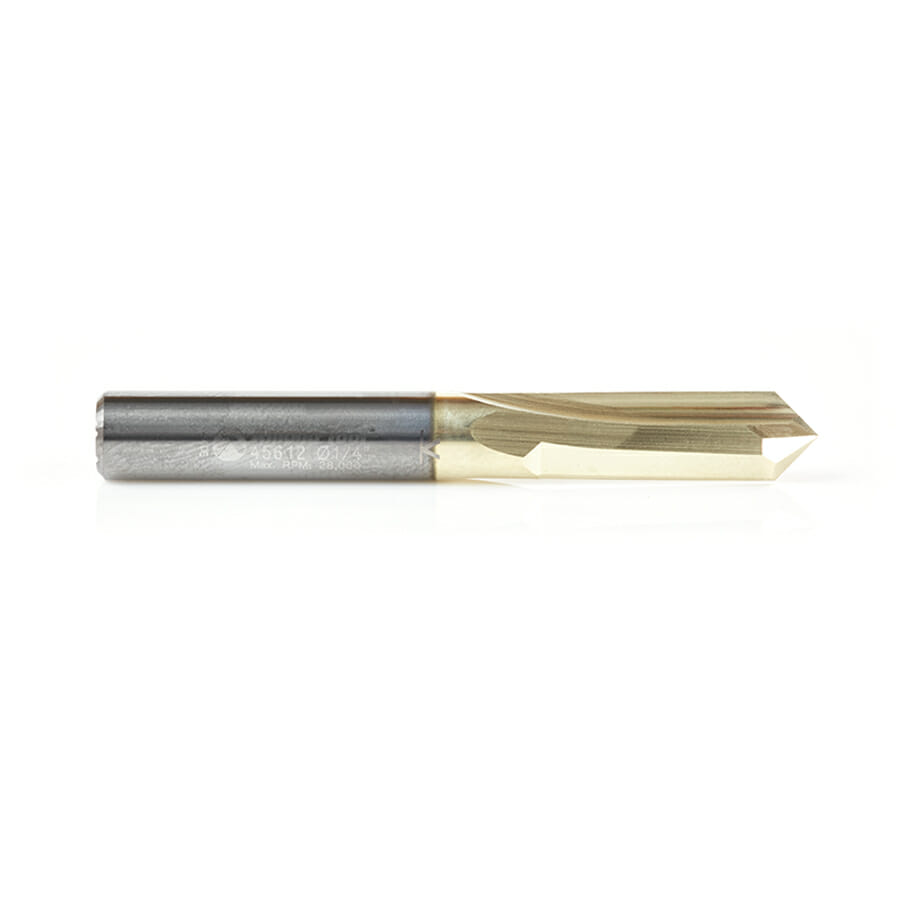

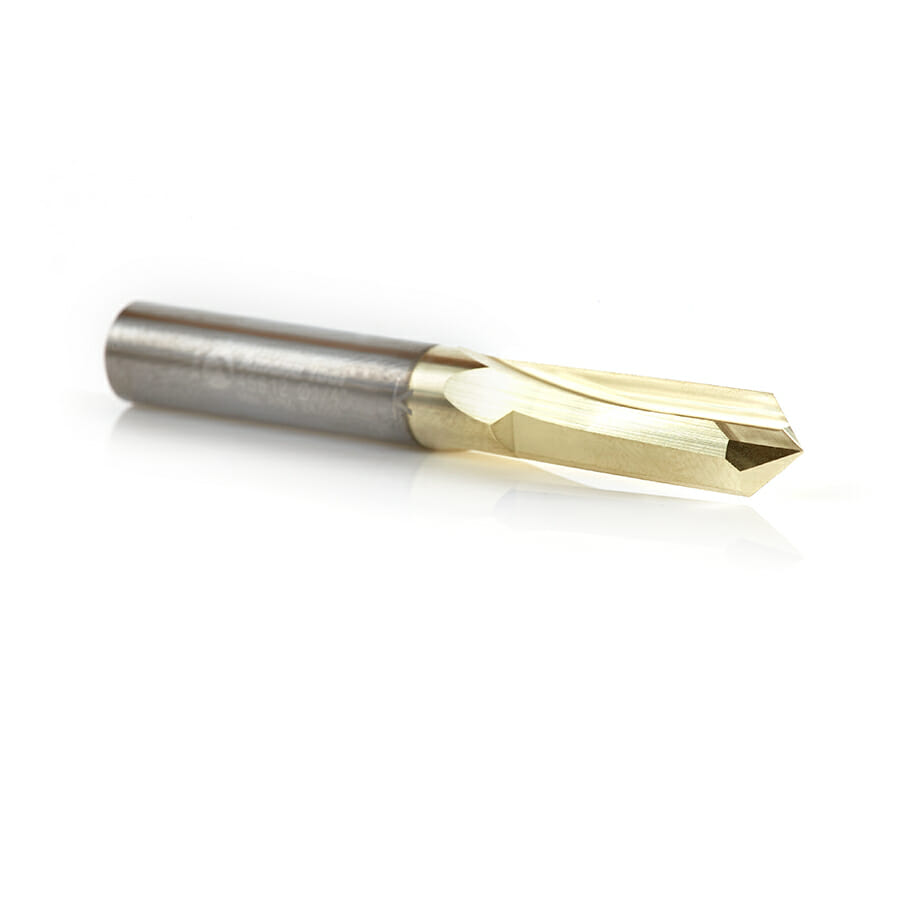

Zero-Point” 90 Degree V-Groove and Engraving 1/4 Dia x 1/8 x 1/4 Shank ZrN Coated Router Bit


Usually ships on the 2nd business day from order date.
A Angle 90°
D Diameter 1/4
B Cutting Height 1/8
B1 3/4
D Shank 1/4
Overall Length L 2-1/4
Flutes 2
Chip Load 0.003" - 0.006"


Designed for beveling or V-Grooving 90° the following materials:

Acrylonitrile-Butadiene-Styrene (ABS) Aluminum, Brass, Bronze, Copper, Gold & Silver Aluminum 5052 Composites Fomex® with Aluminum Face Hard Plastics Hardwood Laminated Chipboard/Plywood

MDF Non-Ferrous Metals P olycarbonate (Lexan™) † Solid Surfaces (Corian® Formica® ect) Soft Plastics Softwood Veneer

† Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™. Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting High resistance to wear Extended tool life Less friction & heat buildup High resistance to wear


Diameter (D) 1/4
(a°) Angle 90°
Cutting Height (B) 3/4
Shank (d) 1/4
Overall Length (L) 2-1/4
B1 1/8
Flutes 2
Chip Load 0.003" - 0.006"
