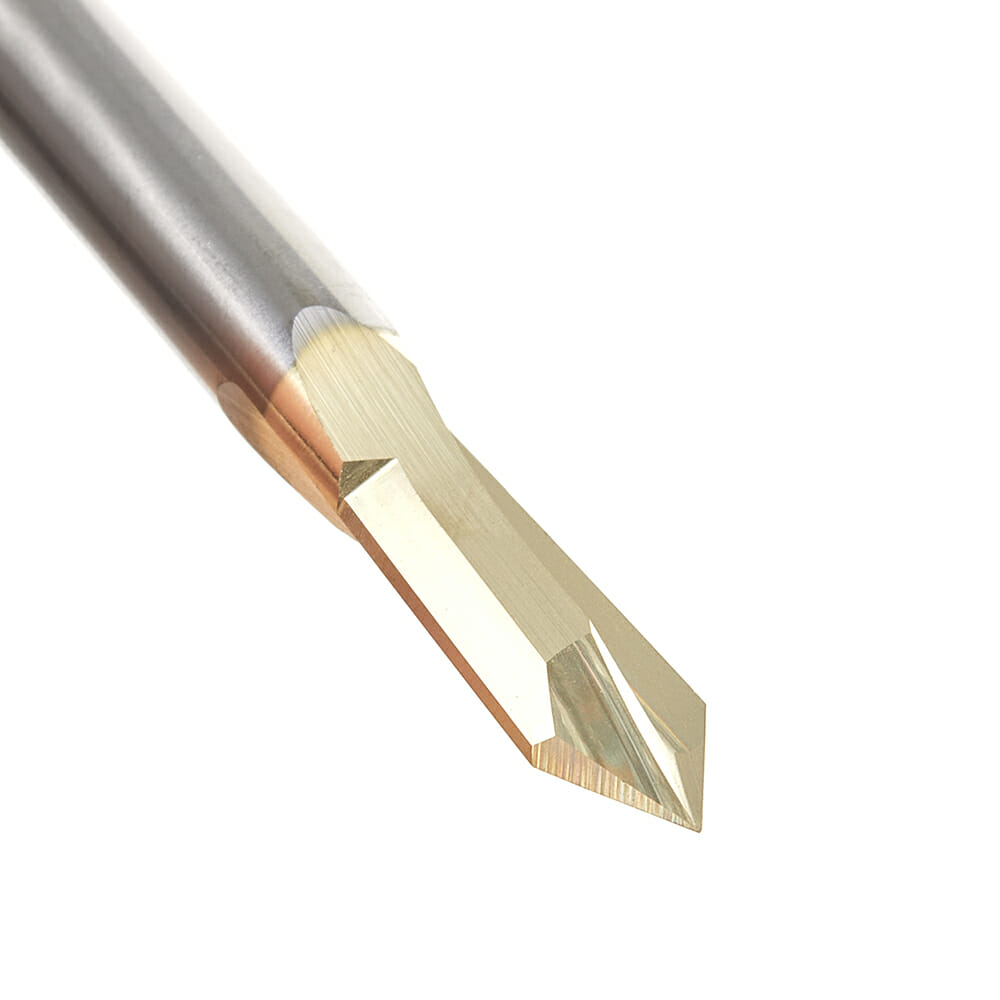

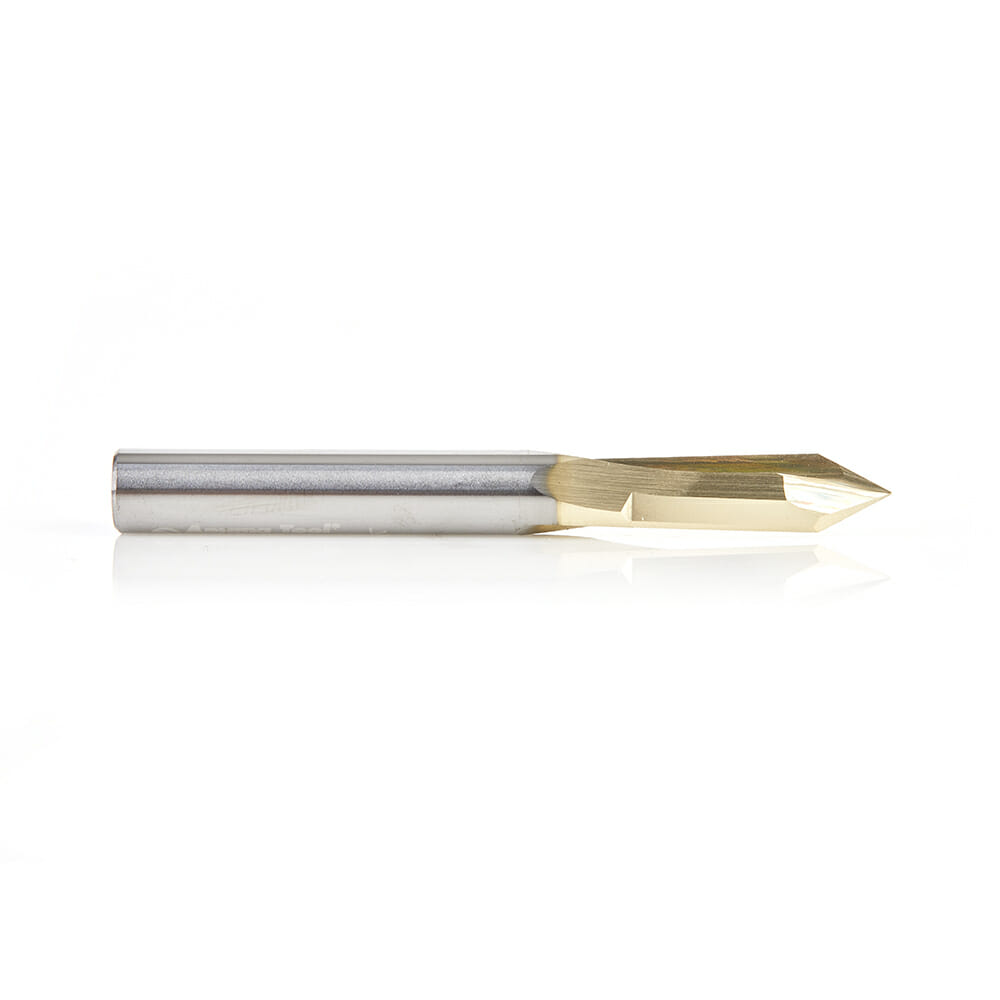

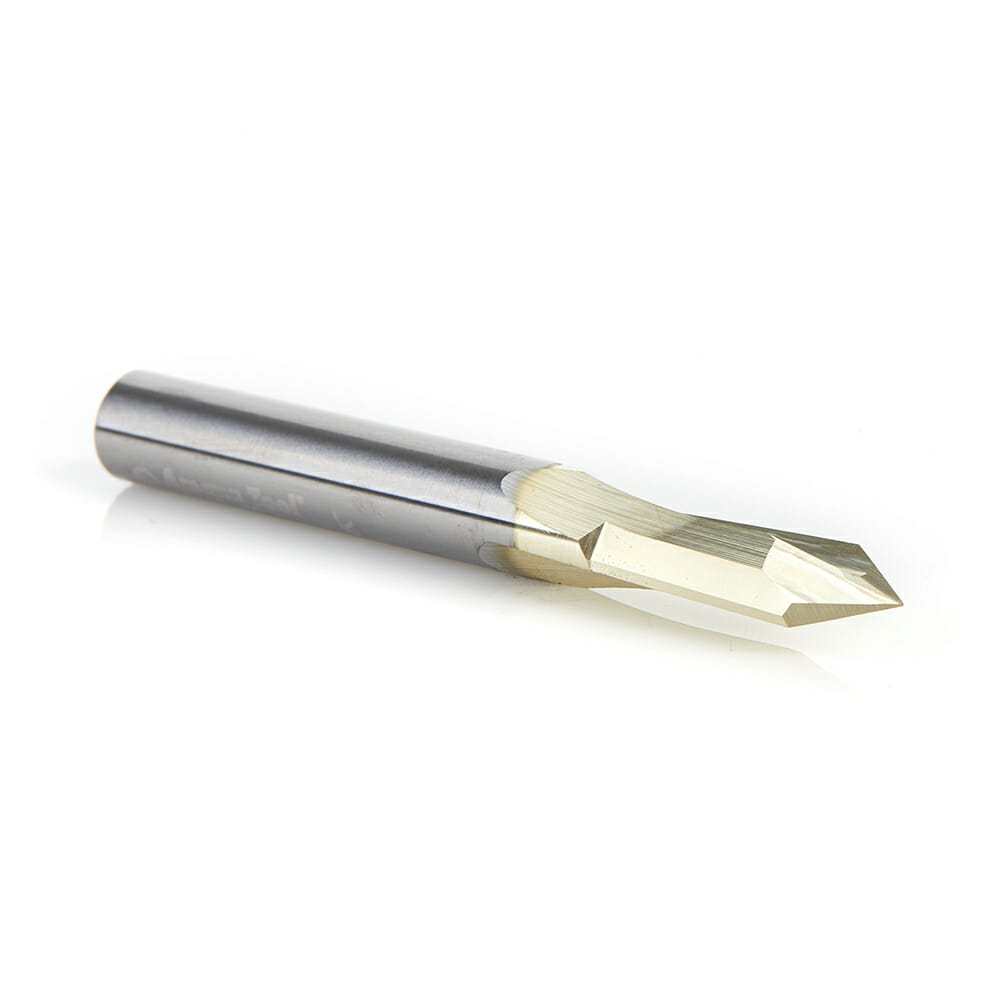

Zero-Point” 60 Degree V-Groove and Engraving 1/4 Dia x 0.214″ x 1/4 Shank ZrN Coated Router Bit
$81.02
| A Angle | 60° |
|---|---|
| D Diameter | 1/4 |
| B Cutting Height | 0.214" |
| B1 | 3/4 |
| D Shank | 1/4 |
| Overall Length L | 2-1/4 |
| Flutes | 2 |
| Chip Load | 0.003" - 0.006" |
Description
Designed for beveling or V-Grooving 60° the following materials:
Acrylonitrile-Butadiene-Styrene (ABS) Aluminum, Brass, Bronze, Copper, Gold & Silver Aluminum 5052 Composites Fomex® with Aluminum Face Hard Plastics Hardwood Laminated Chipboard/Plywood
MDF Non-Ferrous Metals P olycarbonate (Lexan™) † Solid Surfaces (Corian® Formica® ect) Soft Plastics Softwood Veneer
† Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™. Benefits of ZrN Coating
Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting High resistance to wear Extended tool life Less friction & heat buildup High resistance to wear
Vectric compatible tool file for 45615 available for download, . click here
Specifications
| Diameter (D) | 1/4 |
| (a°) Angle | 60° |
| (B) Cutting Height | 3/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/4 |
| B1 | 0.214" |
| Flutes | 2 |
| Chip Load | 0.003" - 0.006" |
