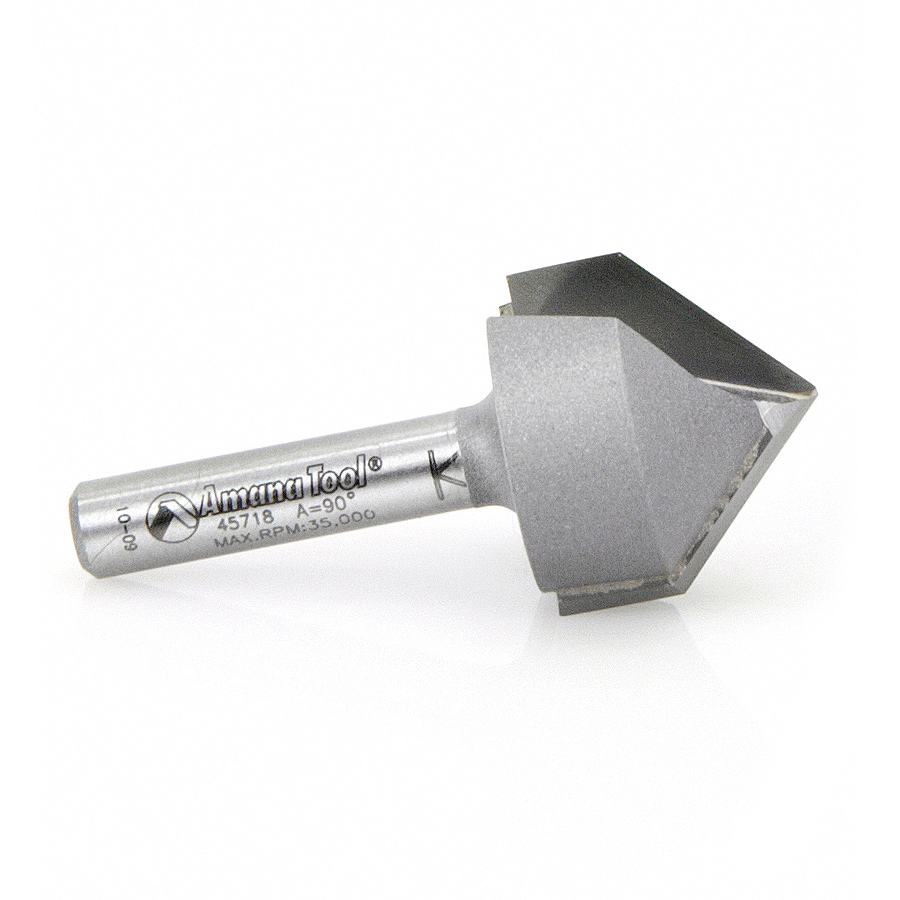

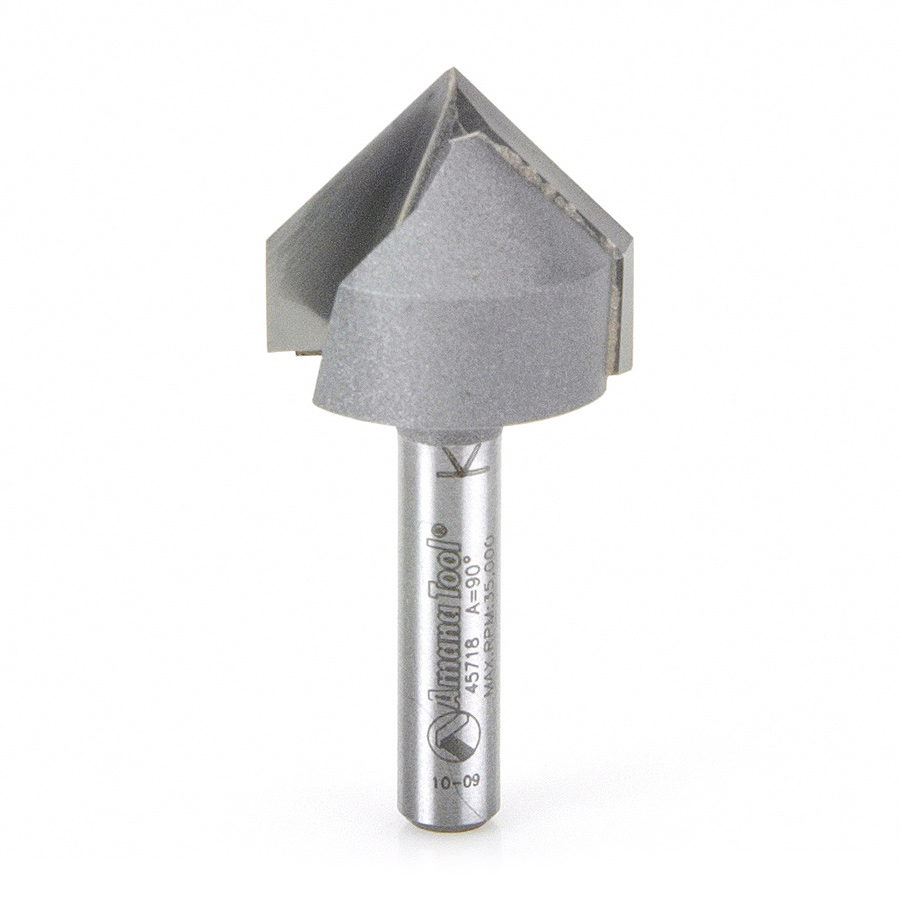

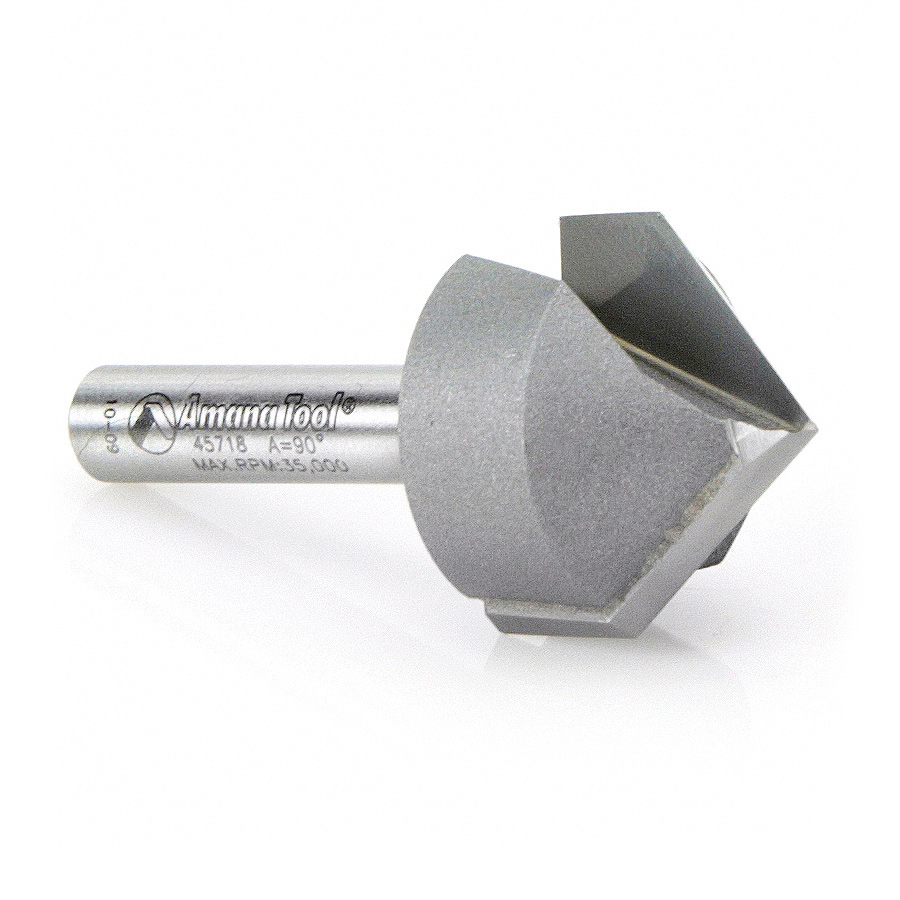

45718 Carbide Tipped V-Groove 90 Deg x 7/8 Dia x 7/16 x 1/4 Inch Shank
$119.28
Usually ships on the 2nd business day from order date.
| Diameter-d | 7/8 |
|---|---|
| Angle-a | 90° |
| Cutting-height-b | 7/16 |
| Shank-d | 1/4 |
| Overall-length-l | 1-7/8 |
| B1 | 3/4 |
| Flutes | 2 |
Description
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board

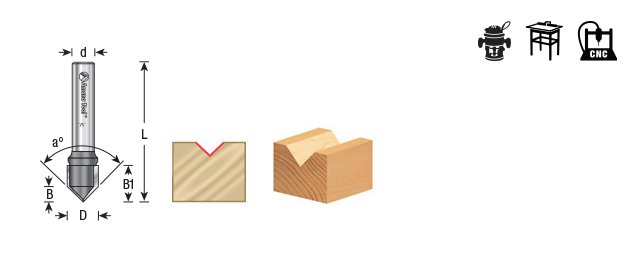

Specifications
| Diameter (D) | 7/8 |
| Angle (a°) | 90° |
| Cutting Height (B) | 7/16 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-7/8 |
| B1 | 3/4 |
| Flutes | 2 |
