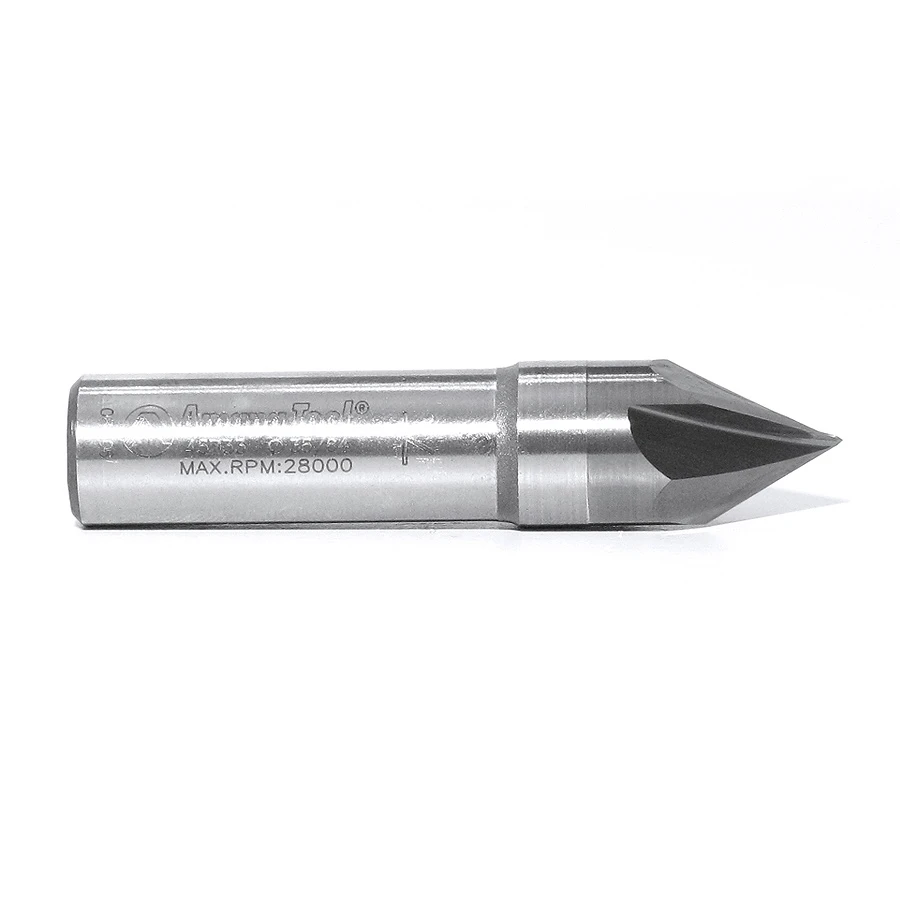

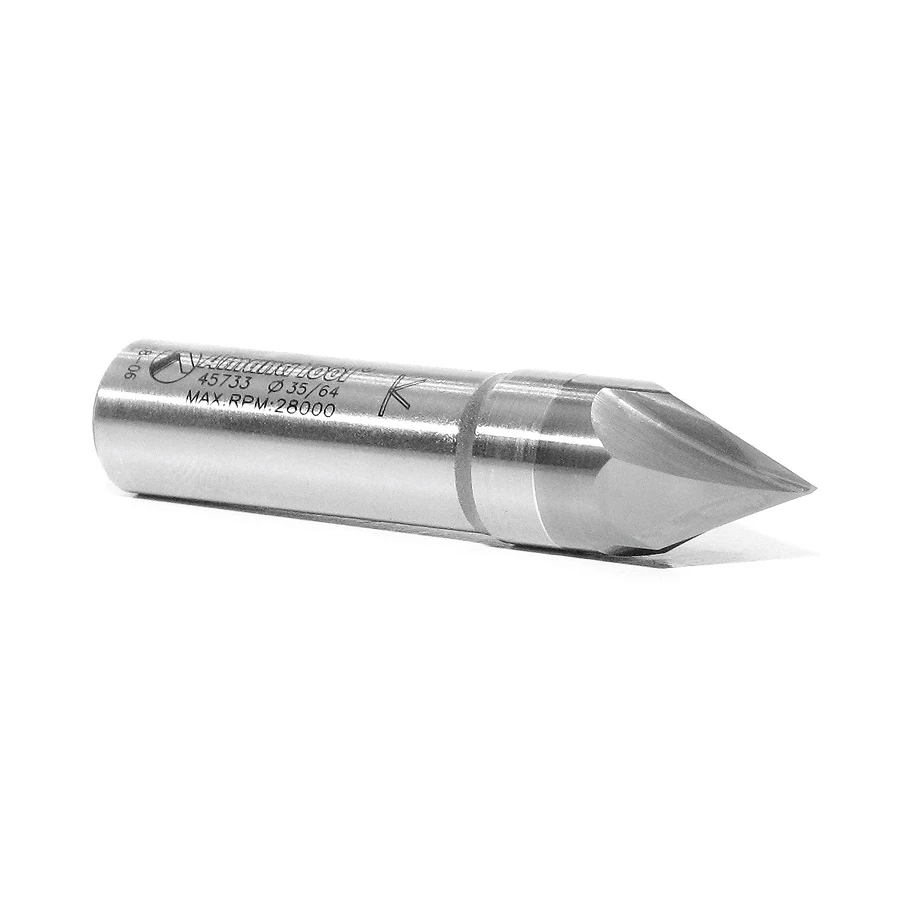

45733 Solid Carbide V-Groove Signmaking & Lettering 60 Deg x 9/16 Dia x 7/16 x 1/2 Inch Shank
$149.46
Usually ships on the 2nd business day from order date.
| Diameter-d | 9/16 |
|---|---|
| Angle-a | 60° |
| Cutting-height-b | 7/16 |
| Shank-d | 1/2 |
| Overall-length-l | 2-1/4 |
| B1 | 1/2 |
| Flutes | 3 |
Description
Originally developed in Europe specifically for professional signmakers, this solid-carbide bit features an extra-fine 60° point that produces a clean, precise cut. For those intricate lines, this bit is superior to standard ‘V’ groover. Makes crisp, clean cuts in solid woods, MDF and acrylics.
Specifications
| Diameter (D) | 9/16 |
| Angle (a°) | 60° |
| Cutting Height (B) | 7/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/4 |
| B1 | 1/2 |
| Flutes | 3 |
