45948-CNC Carbide Tipped Core Box 1 Inch Radius x 2 Inch Dia x 1-1/4 x 1/2 Shank CNC
Usually ships on the 2nd business day from order date.

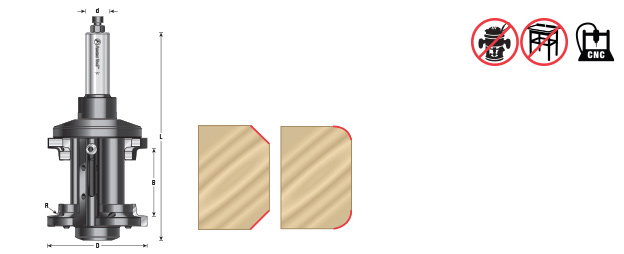

| Diameter (D) | 90mm |
|---|---|
| (B) Cutting Height | 18-58mm |
| Shank (d) | 3/4 |
| Overall Length (L) | 186mm |
| R/a° | 4mm |
| Flutes | 2 |
| Repl. Knife Lower | RCK-282L |
| Repl. Knife Upper | RCK-282 |
Description

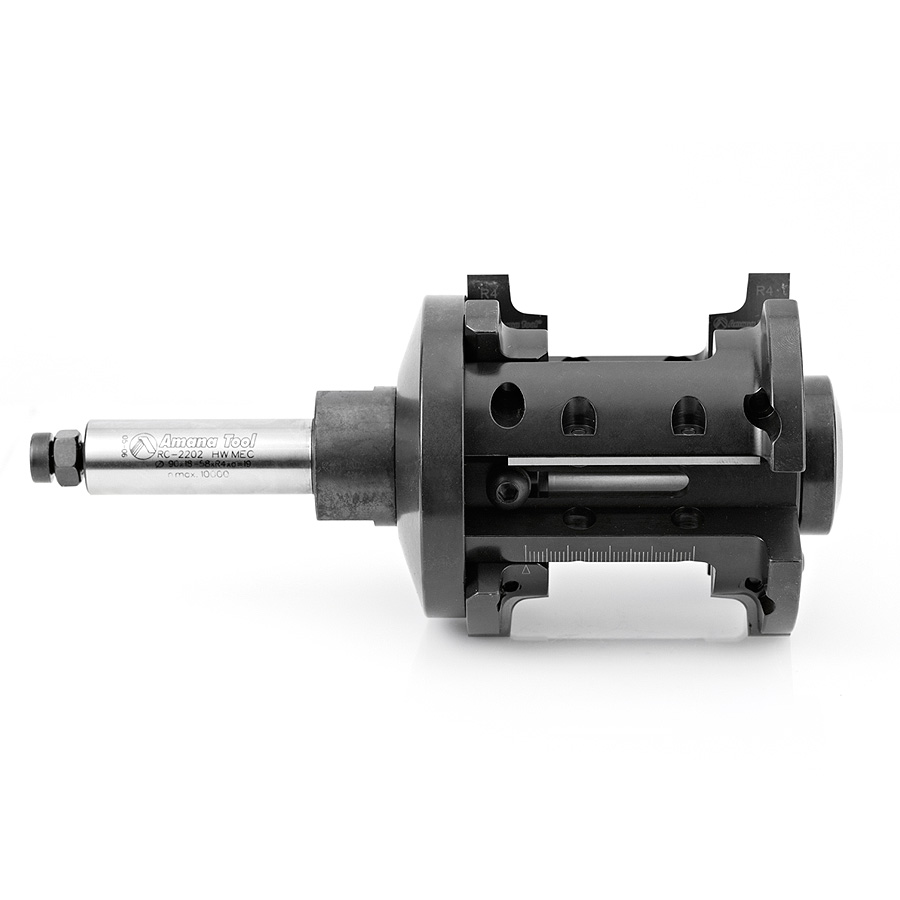

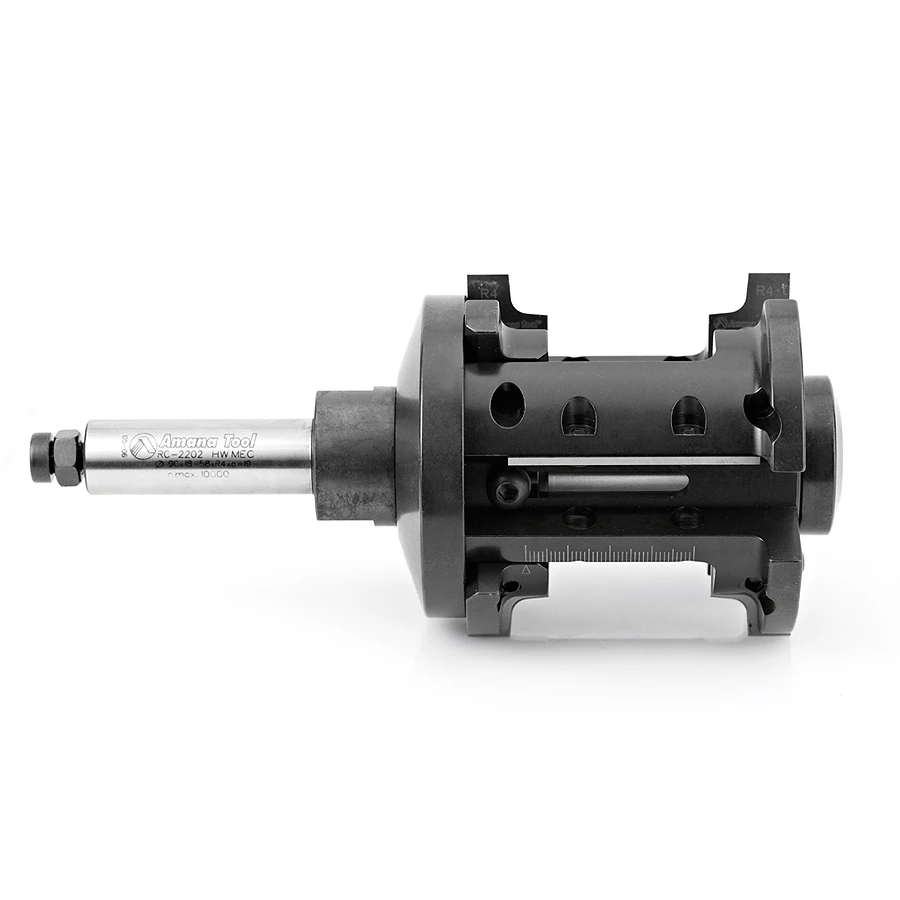

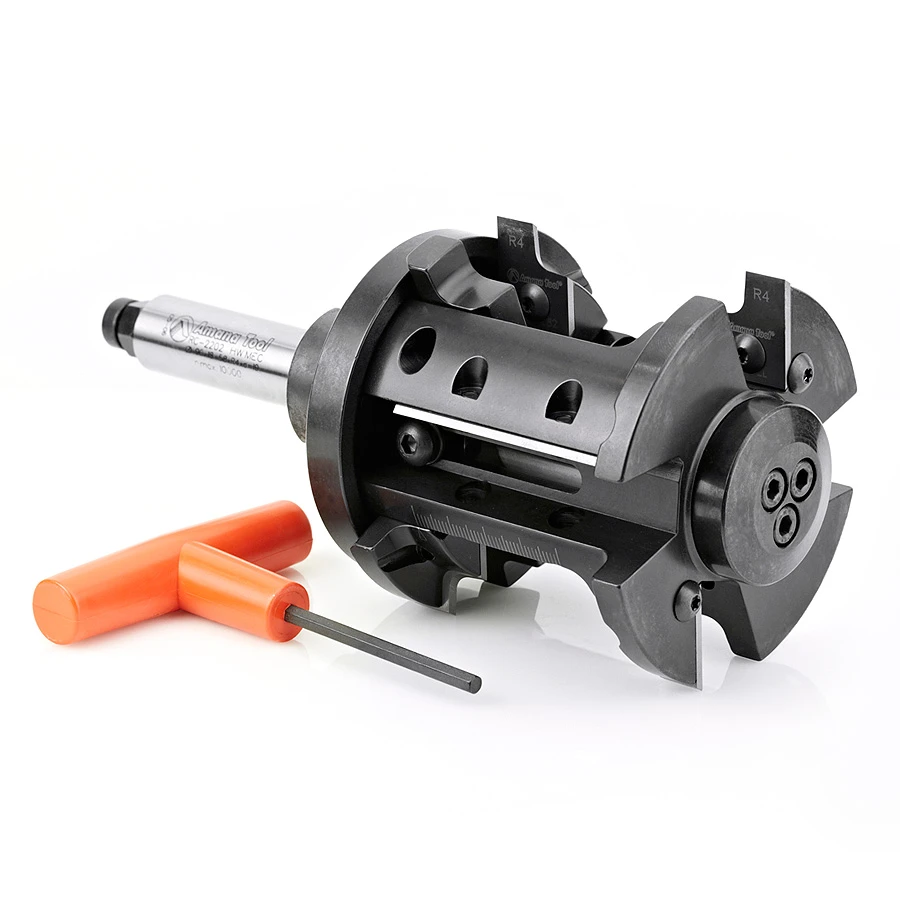

Insert profile router bit with two cutting flutes. Suitable for profiling in softwood hardwoods and man-made boards (with or without coating). Tool will be supplied with special inserts and backing plates ground to customer’s own specification. For use on routers and machining centers with CNC control.
Specifications
| (D) Diameter | 90mm |
| (B) Cutting Height | 18-58mm |
| (d) Shank | 3/4 |
| Overall Length (L) | 186mm |
| R/a° | 4mm |
| Repl. Knife Lower | RCK-282L |
| Repl. Knife Upper | RCK-282 |
| Flutes | 2 |
