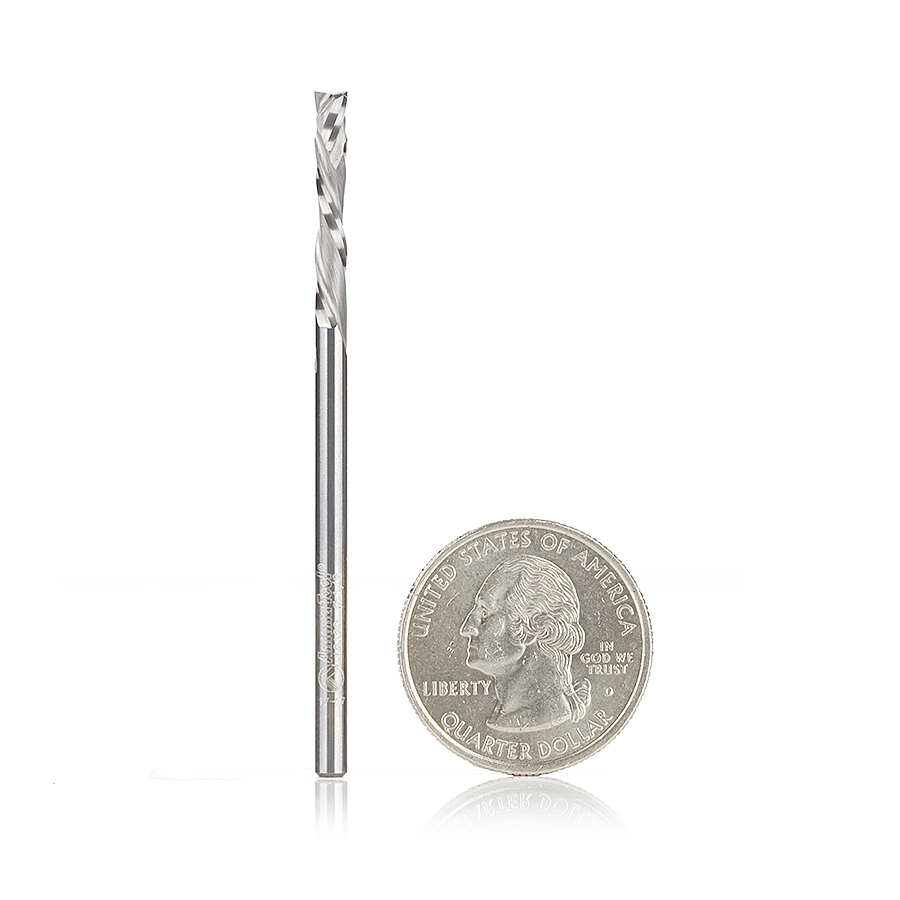

46180 CNC Solid Carbide Compression Spiral 1/8 Dia x 13/16 x 1/8 Inch Shank

$75.12

Usually ships on the 2nd business day from order date.
(D) Diameter 1/8
(B) Cutting Height 13/16
B1 7/32
(d) Shank 1/8
Overall Length (L) 2-1/2
Type Solid Carbide
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685461808 SKU: 46180 Categories: , ,

Description

Unique extra small diameter solid carbide compression spiral bit for intricate work signmaking lettering and cutting out shapes. Features special adapter to fit handheld trim routers routers and CNC machines. Designed for CNC applications requiring high feed rates and a clean finish.

Excellent for cutting:

  • Laminate
  • Laminated Plywood
  • Melamine
  • Melamine Particle Board
  • MDF/HDF
  • Oriented Strand Board (OSB)*
  • Particle Board
  • Softwood/Hardwood
  • Veneered Plywood
*Oriented Strand Board is an engineered wood particle board.

Optional 1/4″ diameter sleeve/adapter 47632 available.

Specifications

(D) Diameter 1/8
(B) Cutting Height 13/16
B1 7/32
(d) Shank 1/8
Overall Length (L) 2-1/2
Type Solid Carbide
Flutes 2
