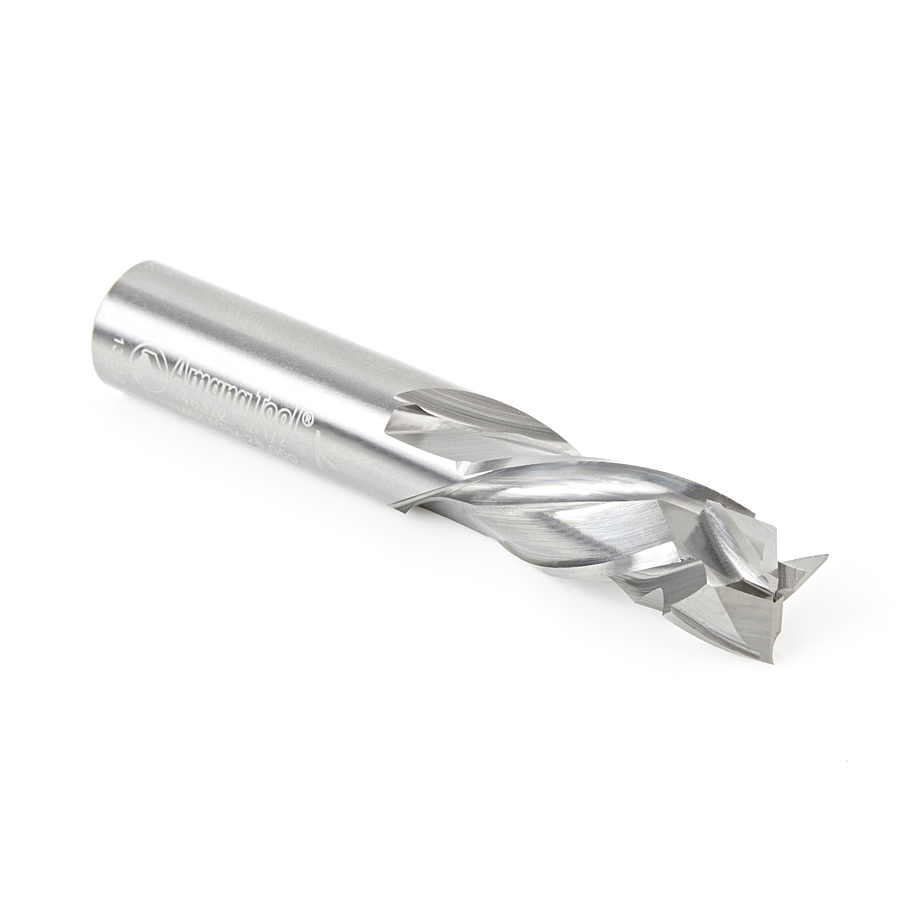

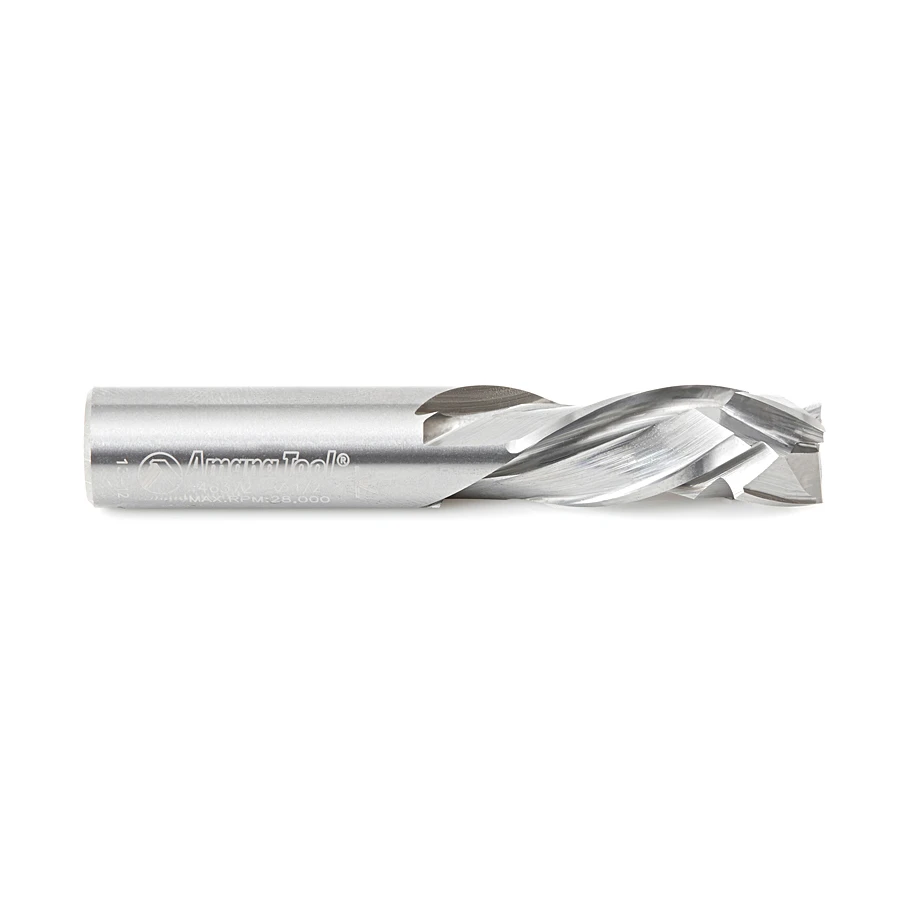

46372 Solid Carbide Compression Spiral 1/2 Dia x 1-1/4 x 1/2 Shank x 3 Inch Long CNC Nesting Router Bit

$217.43

Usually ships on the 2nd business day from order date.
D-diameter 1/2
B-cutting-height 1-1/4
B1 23/64
D-shank 1/2
Overall-length-l 3
Max-rpm 28,000
Flutes 3
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685463727.0 SKU: 46372 Categories: , ,

Description

New generation of spiral tools for nesting operation on a CNC machine. Nesting refers to the process of laying out cutting patterns to minimize the raw material waste.

Excellent for cutting:

  • MDF
  • Melamine
  • Laminate
  • Laminated Plywood
  • Composites
  • Oriented Strand Board (OSB)*
  • Particle Board
  • Veneered Plywood



*Oriented Strand Board is an engineered wood particle board.

Features

dummy
  • High clearance geometric shape for maximum feed rate
  • Free chip flow
  • Superior cut quality

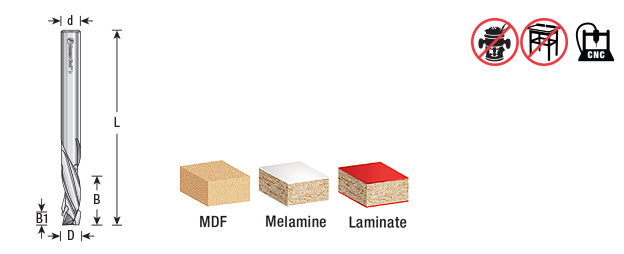

Specifications

(D) Diameter 1/2
(B) Cutting Height 1-1/4
B1 23/64
(d) Shank 1/2
Overall Length (L) 3
Max RPM 28,000
Flutes 3
