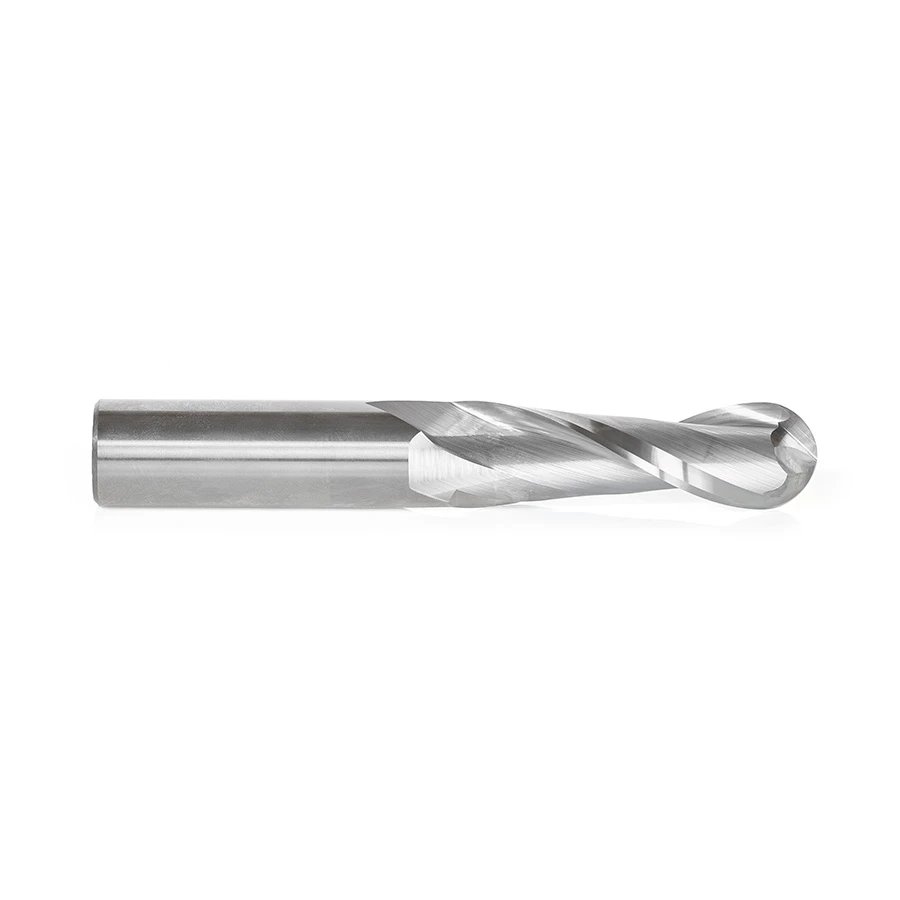

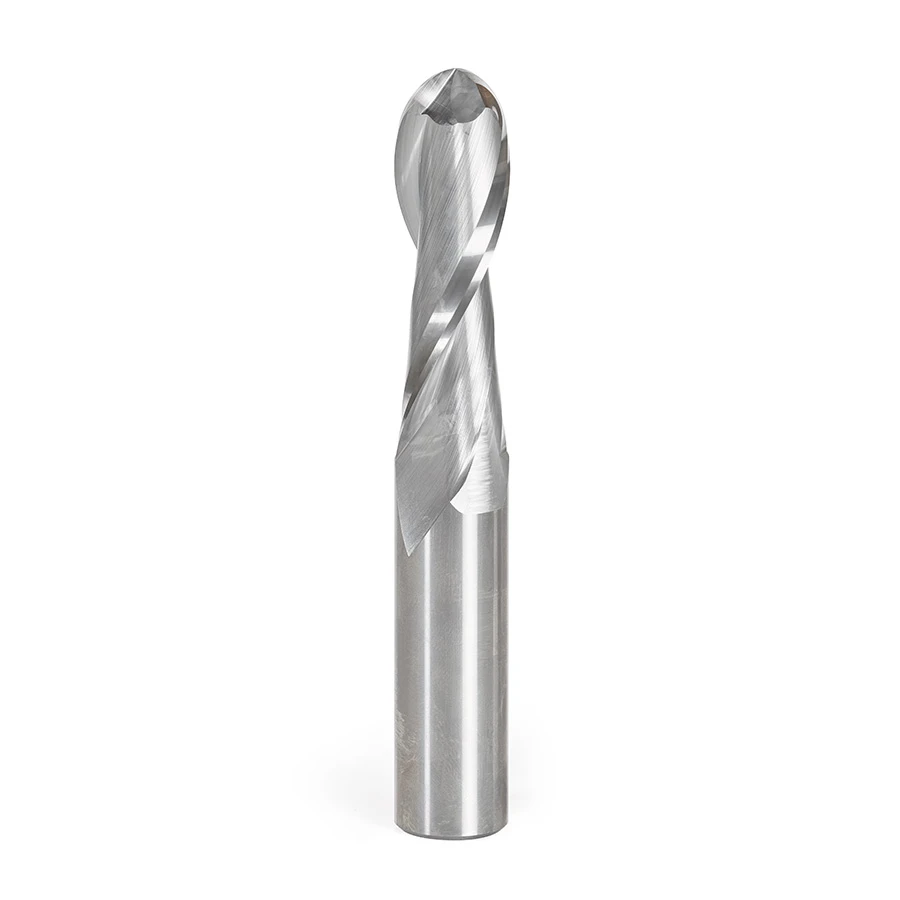

46387 CNC Solid Carbide Up-Cut Ball Nose Spiral 3/4 Dia x 2-1/2 x 3/4 Shank Router Bit
$271.80
Usually ships on the 2nd business day from order date.
| Direction | Up-Cut |
|---|---|
| Diameter-d | 3/4 |
| Radius-r | 3/8 |
| B-cutting-height | 2-1/2 |
| Shank-d | 3/4 |
| Overall-length-l | 5 |
| Flutes | 2 |
Description
Used for carving decorative doors and sign manufacturing. Up-cut design leaves an excellent finish and expels chips quickly.
Excellent for Cutting:
- Soft/Hard Wood
- Aluminum
- MDF
- Soft/Hard Plastic
- Sign Foam

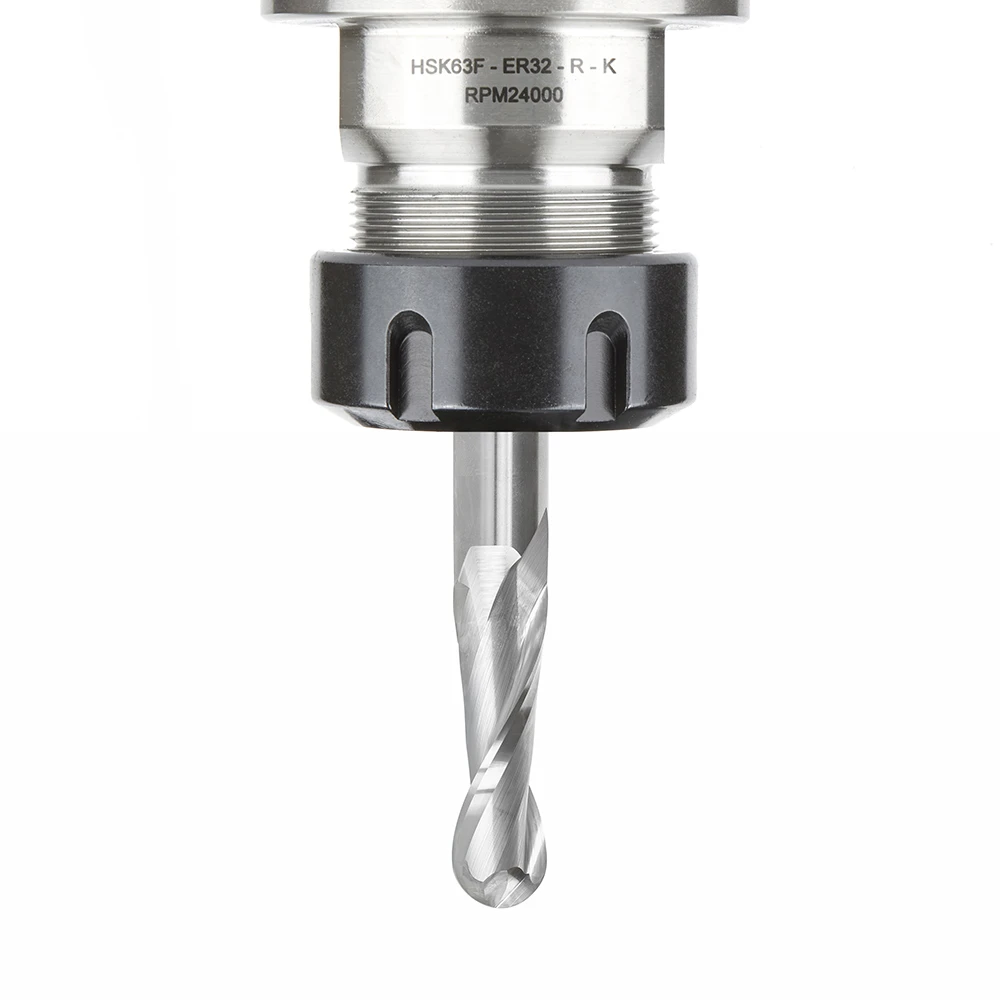

Warning: This tool has an open flute design (not anti-kickback) and is intended for high feed-rate CNC machine use only. Do not use in portable routers.

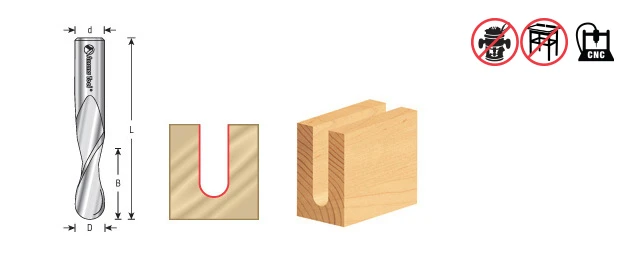

Specifications
| Direction | Up-Cut |
| (D) Diameter | 3/4 |
| (R) Radius | 3/8 |
| (B) Cutting Height | 2-1/2 |
| (d) Shank | 3/4 |
| Overall Length (L) | 5 |
| Flutes | 2 |
