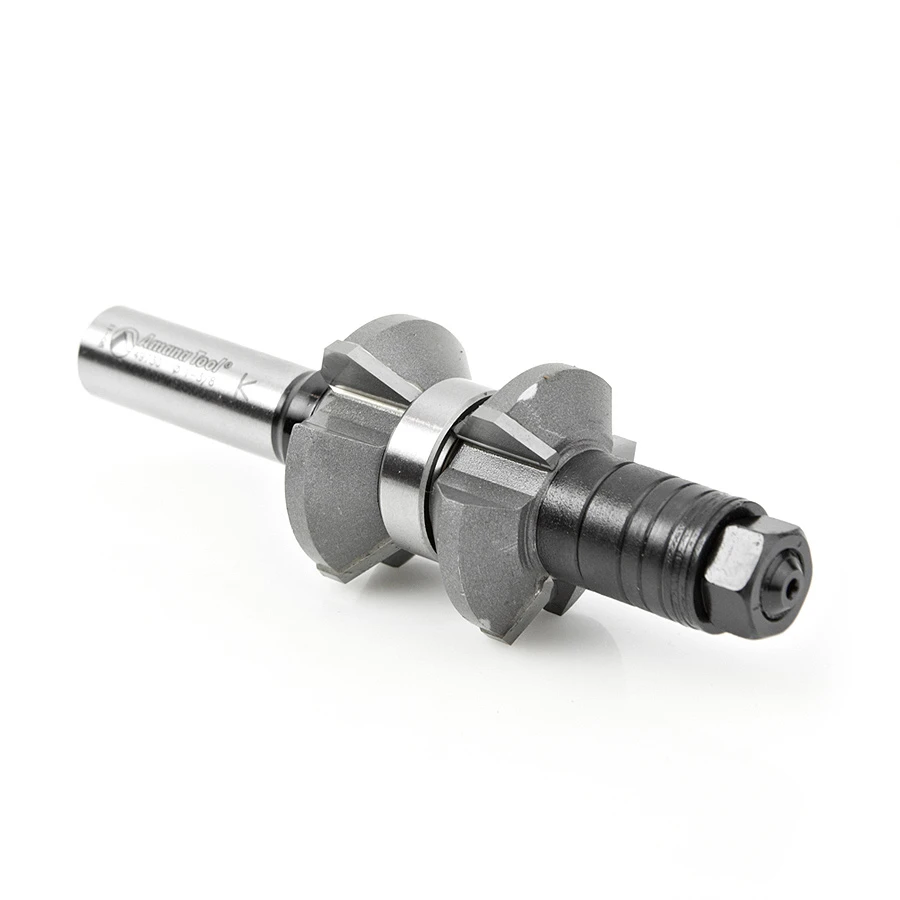

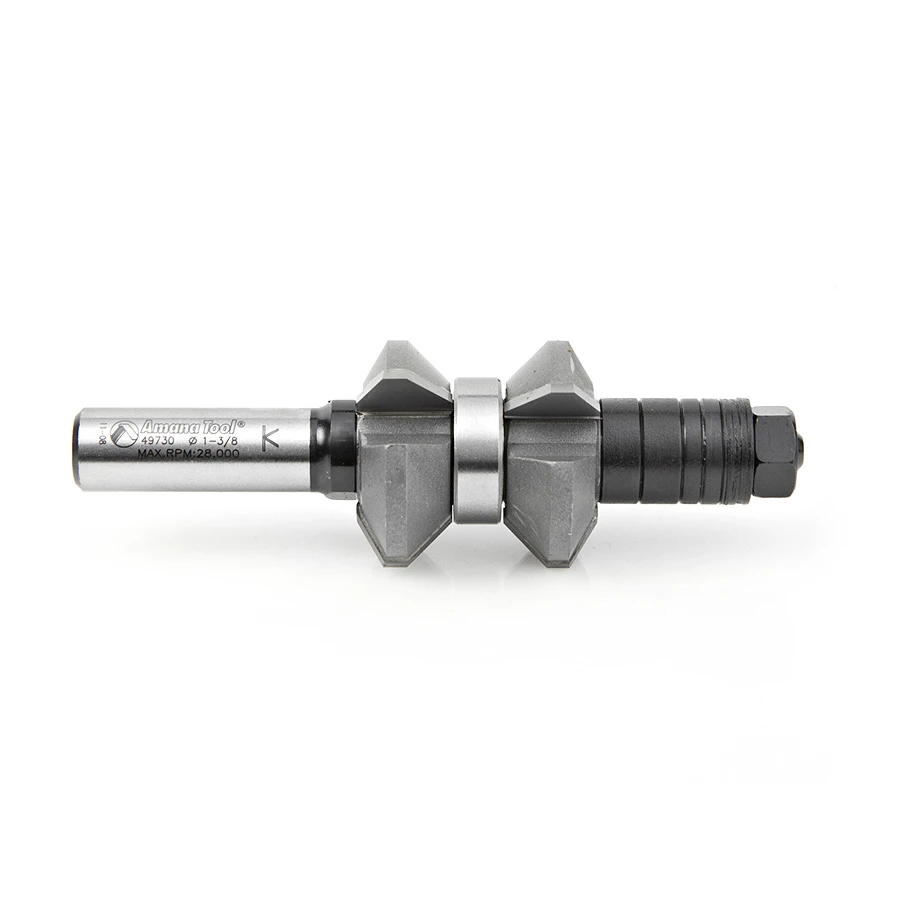

49730 Carbide Tipped Variable Double Chamfer 30 Degree Top x 45 Degree Bottom x 1-3/8 Dia x 9/16 x 1/2 Inch Shank with Center Ball Bearing

$287.52

Usually ships on the 2nd business day from order date.

A1°	30º
Diameter (D)	1-3/8
B1	9/16
Shank (d)	1/2
Overall Length (L)	4-1/4
A2°	45°
# Wings	3

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

49730 Carbide Tipped Variable Double Chamfer 30 Degree Top x 45 Degree Bottom x 1-3/8 Dia x 9/16 x 1/2 Inch Shank with Center Ball Bearing quantity

+ Add to cart

UPC: 738685897300.0 SKU: 49730 Categories: Router Bits, Profiling Router Bits - Industrial Quality from Amana Tool, Variable Double Chamfer Assembly

Share:

Description

Chamfer both corners of an edge in one pass with this assembly. Switch from 30° or 45° chamfers by switching cutter positions on the arbor. Interchangeable spacers adjust assembly to accommodate different stock thicknesses. The assembly includes the arbor, a pair of multi-angle cutters, pilot bearing, spacers and shims. Replacement parts are available separately. For best results use in a router table.
