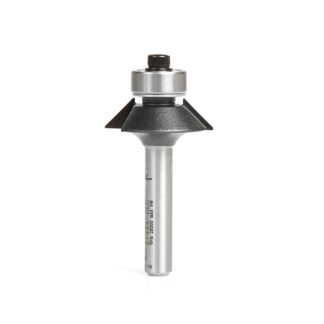

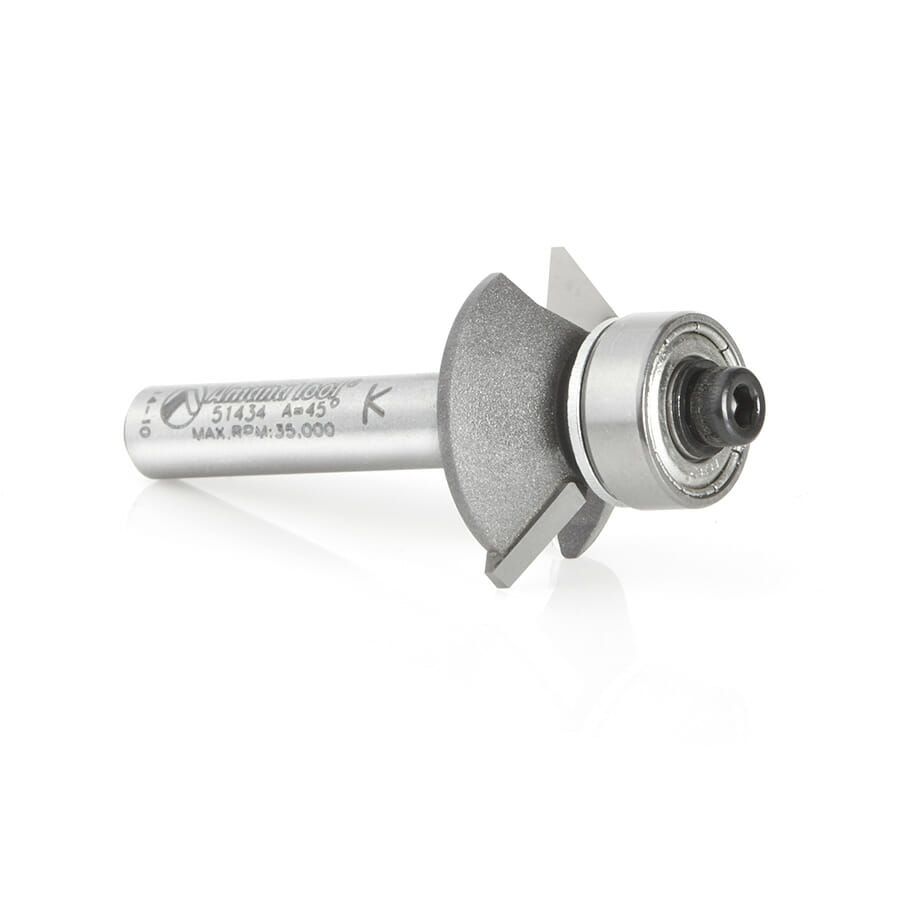

Carbide Tipped Aluminum & Plastic Cutting Bevel Trim 45 Degree x 31/32 Dia x 1/4 x 1/4 Inch Shank
$72.52
Usually ships on the 2nd business day from order date.
| Angle A | 45° |
|---|---|
| Diameter D | 31/32 |
| D1 | cutting_height_(b) |
| Shank D | 1/4 |
| Overall Length L | 1-15/16 |
| Max Rpm | 35 | 000 |
| Replacement Bearing | 47706 |
| Flutes | 2 |
Description
This steel bodied carbide tipped bit is for bevel trimming in aluminum and plastic with a standard router. The solid construction reduces vibration for the smoothest cut possible with a two flute bit. Start at 12,000 RPM and increase the speed to get a better surface if it is necessary. Note:
Specifications
| Diameter (D) | 31/32 |
| (a°) angle | 45° |
| (B) Cutting Height | 1/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-15/16 |
| Replacement Bearing | 47706 |
| Max RPM | 35000 |
| Flutes | 2 |
| D1 | 1/2 |
