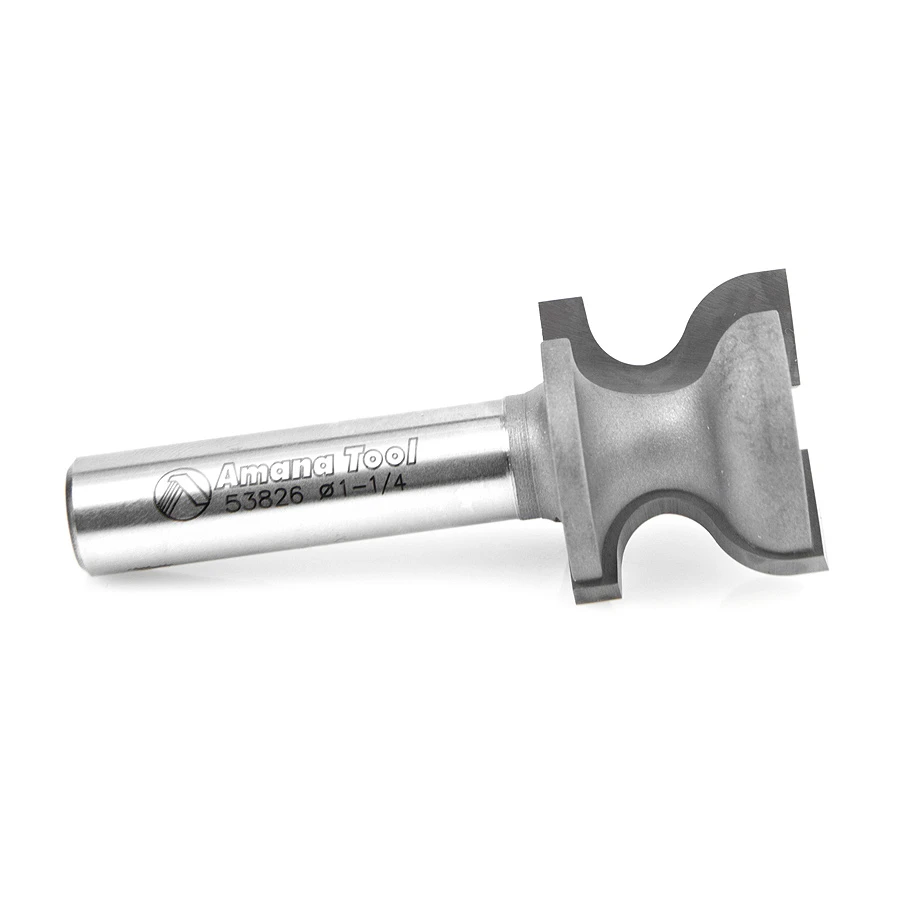

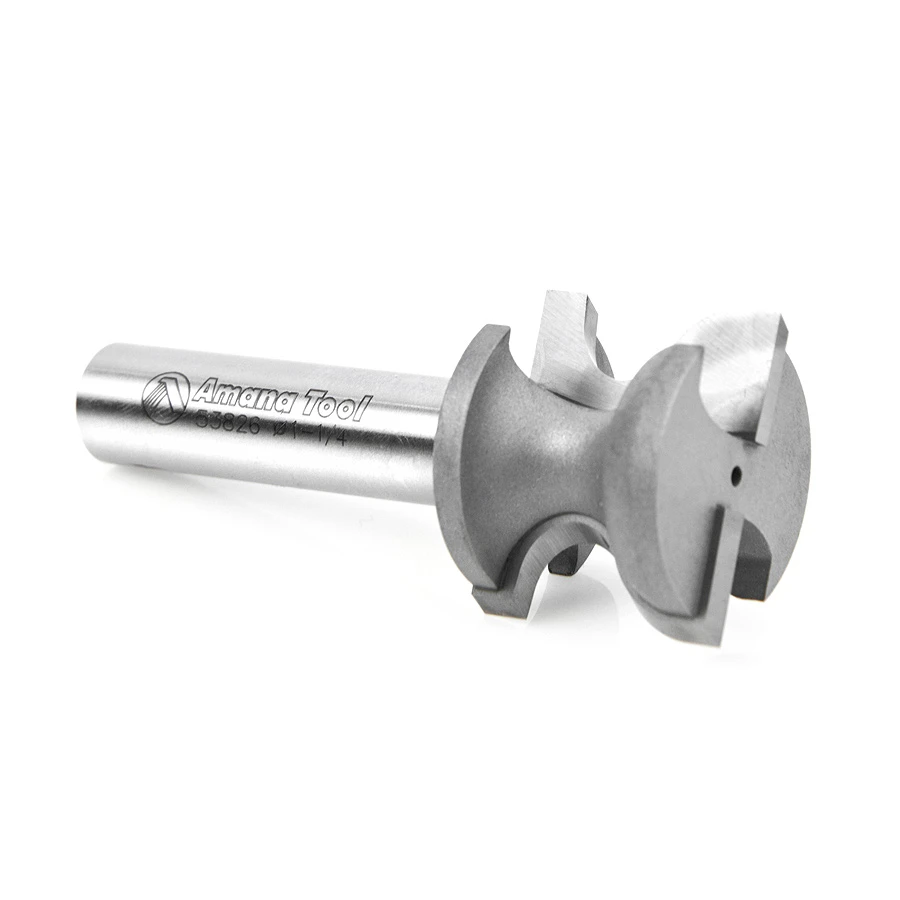

53826 Carbide Tipped Window Sill Edge 7/32 Radius x 1-1/4 Dia x 1 Inch x 1/2 Shank
$125.88
Usually ships on the 2nd business day from order date.

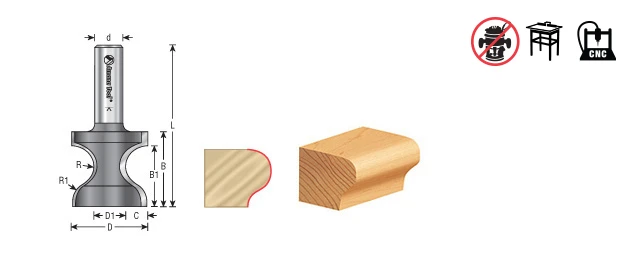

| Diameter (D) | 1-1/4 |
|---|---|
| D1 | 5/8 |
| Radius (R) | 7/32 |
| (B) Cutting Height | 1 |
| B1 | 7/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3 |
| R1 | 11/32 |
| Flutes | 2 |
| C | 5/16 |
Description
These bits shape a flowing ogee edge for creating traditional window sills.
Specifications
| Diameter (D) | 1-1/4 |
| D1 | 5/8 |
| Radius (R) | 7/32 |
| Cutting Height (B) | 1 |
| B1 | 7/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3 |
| R1 | 11/32 |
| Flutes | 2 |
| C | 5/16 |
