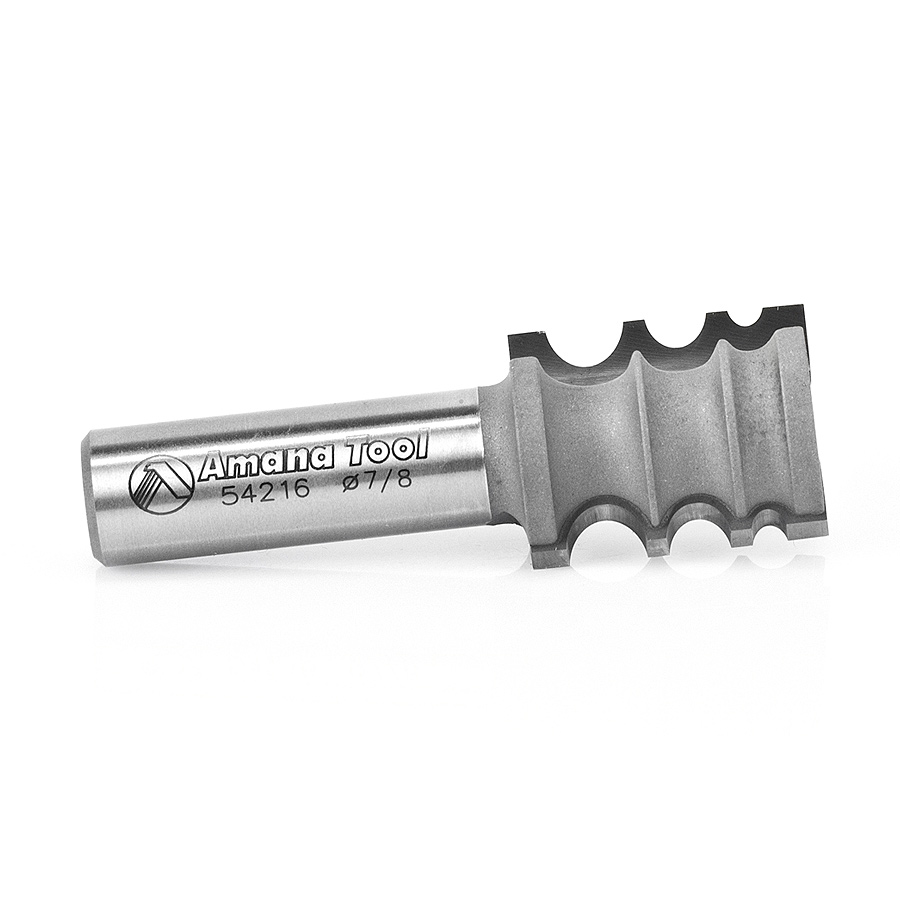

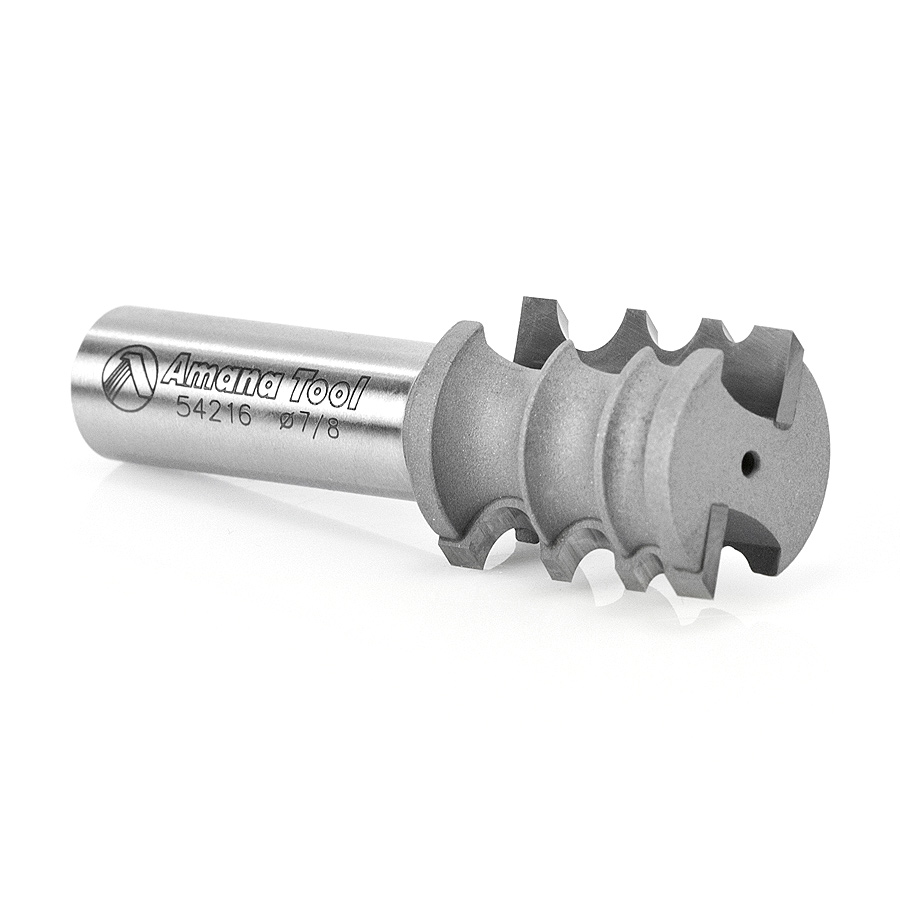

54216 Carbide Tipped Variable Beading 9/64 x 7/64 x 1/16 Radius x 7/8 Dia x 1-1/16 x 1/2 Inch Shank
$84.55
Usually ships on the 2nd business day from order date.
| Diameter (D) | 7/8 |
|---|---|
| Radius (R) | 9/64 |
| (B) Cutting Height | 1-1/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-5/8 |
| R2 | 1/16 |
| R1 | 7/64 |
| Flutes | 2 |
Description
Three different radii of beads are stacked on this one bit. Rout all three on an edge, or use it to nose thin stock. Router-table use recommended for best control, but use in a handheld router is possible. Must be used with an edge guide.
Specifications
| Diameter (D) | 7/8 |
| Radius (R) | 9/64 |
| Cutting Height (B) | 1-1/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-5/8 |
| R2 | 1/16 |
| R1 | 7/64 |
| Flutes | 2 |
