$3,430.00 $2,250.00
The miniTron D-11 is a 1×1 desktop CNC router is a small machine with a low price—perfect for home, hobby, and small manufacturing applications. 110v and very user friendly.
Custom order your machine today!
Inquire Now| Specification | Description |
|---|---|
Physical Features |
|
| Machining Bed | 11.811in x 11.811in x 2.3622in /300x300x60mm |
| Machine Footprint | |
| Table Top | T-Slot/Bolts |
| Gantry Height | 2.3622in /60mm |

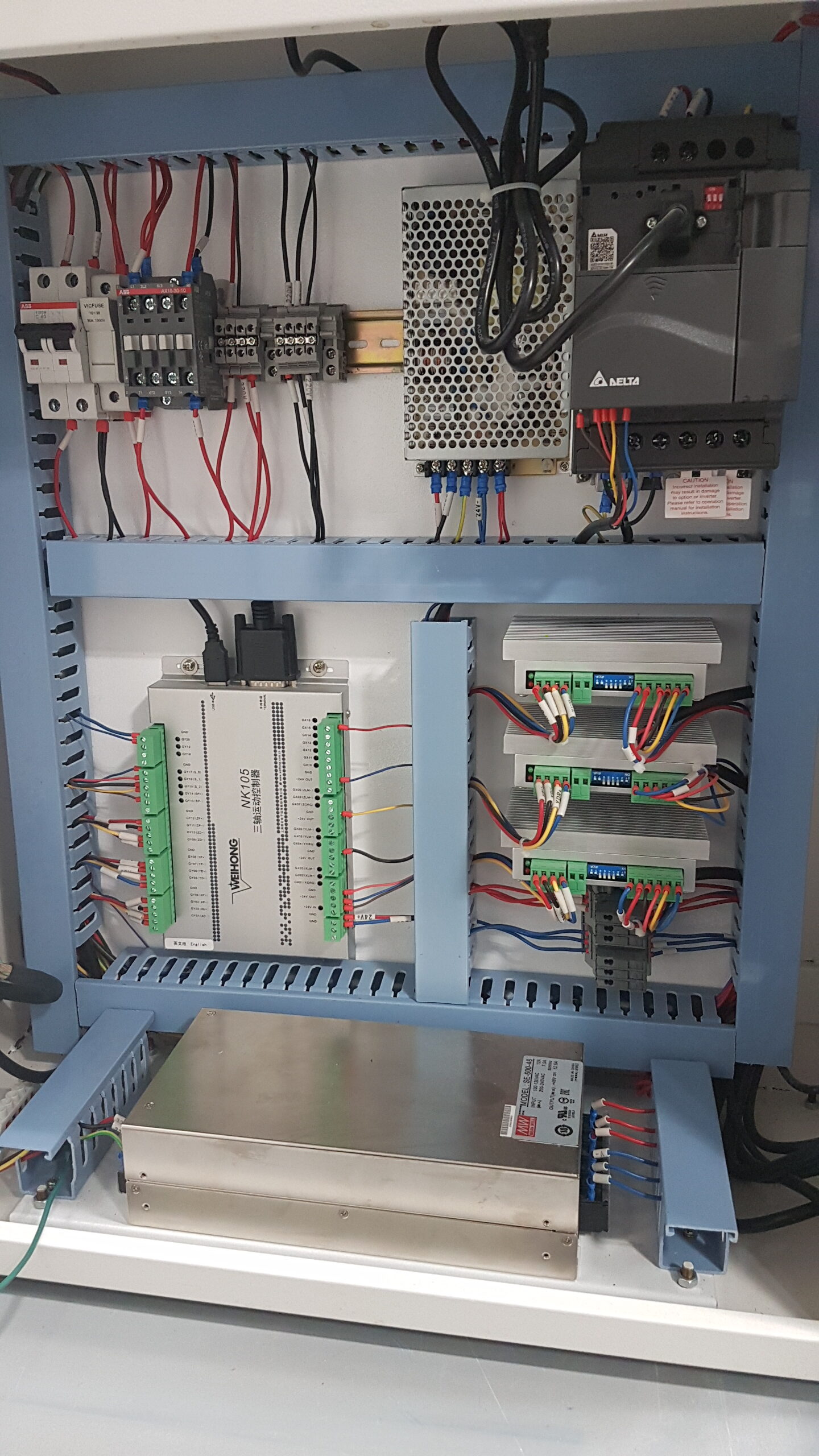

| Electrical Cabinet Size | |
| Weight | 154.324 lbs/70kg |
| Colour | White/Blue |
| Table Structure | Cast Aluminum |
Controller |
|

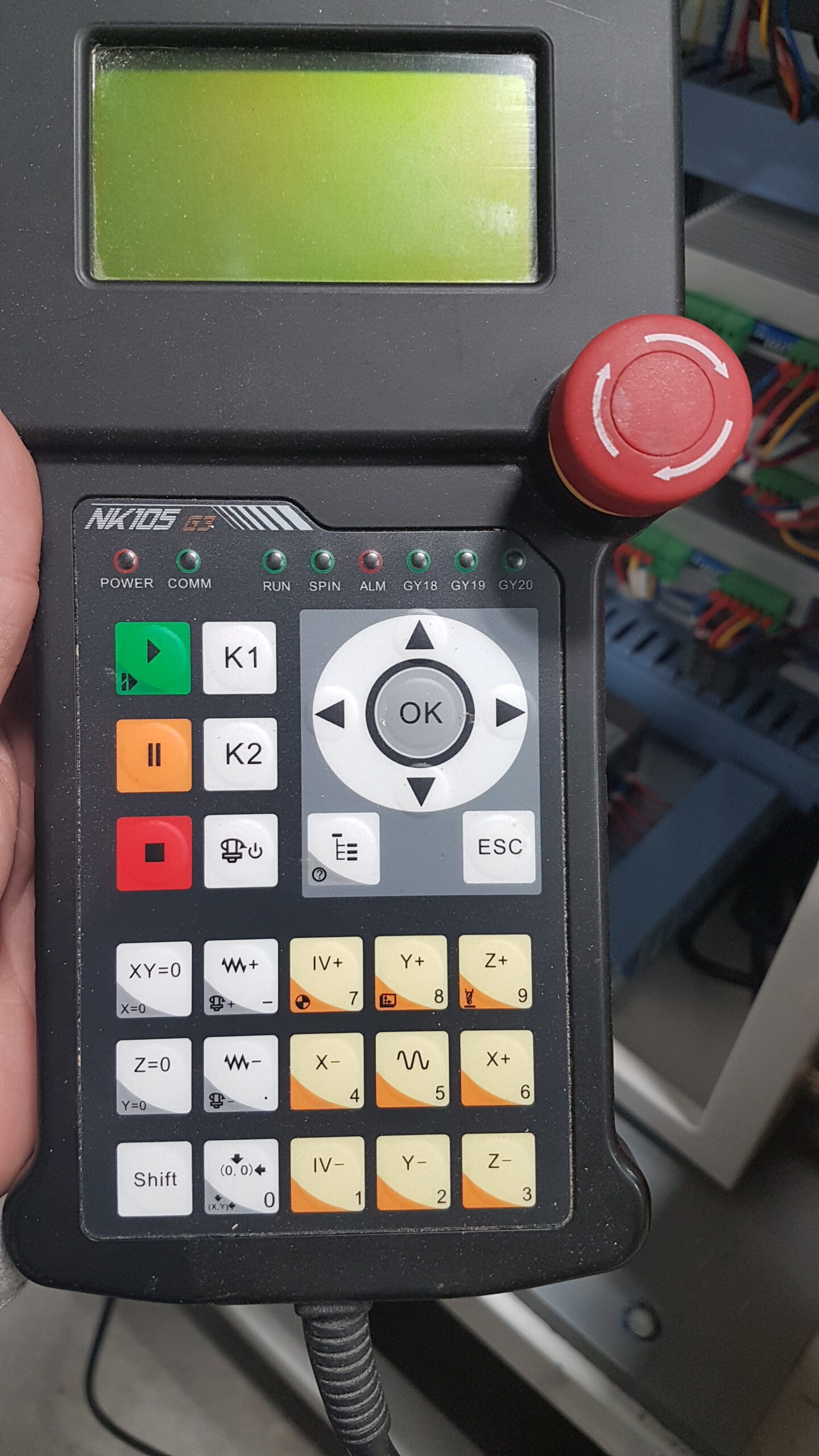

| Interface | NK105 G3 |
| Type | Handheld DSP |
| Screen Size | 4 in/10.16cm |
| Touch Screen | No |
| Inputs | USB |
Spindle |
|
| Model | Generic With ER11 Collet |
| Power | 0.7 kW / 1 HP |
| Max Speed | 24000 RPM |
| Variable Frequency Drive | Delta |
| Cooling System | Water Cooled/Air Cooled |
Drive System |
|
| Motor | Yako |
| Type | Micro Stepper |
| Power | |

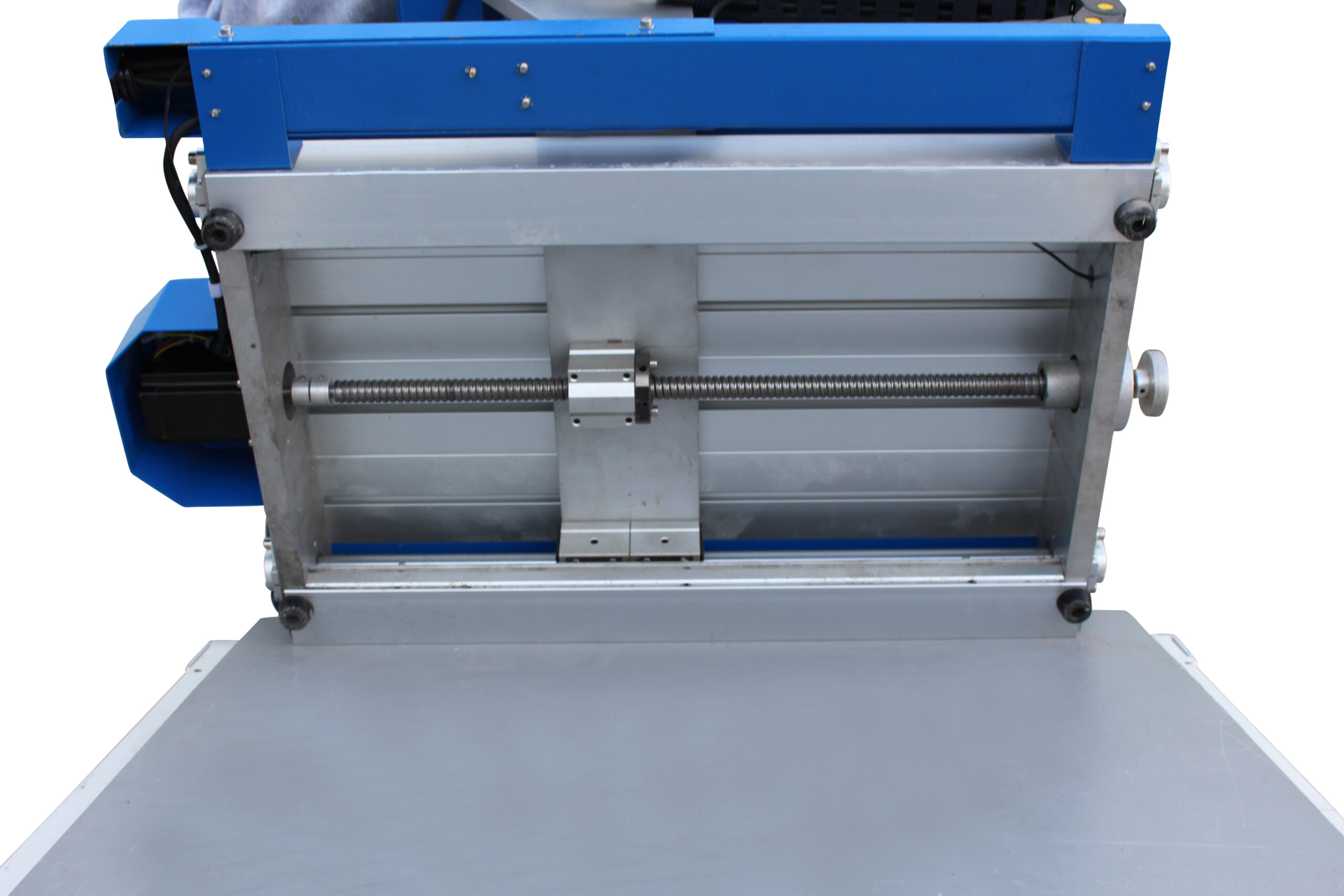

| Transmission | (X & Y) – TBI Ball Screw Drive |
| (Z) – TBI Ball Screw Drive | |
| Hiwin Linear Guide rails for all axes | |
| Rapid Speed | 157 IMP / 4000 mm/min |
| Max Cutting Speed | 157 IMP / 4000 mm/min |
Tool Change |
|
| Automatic | No |
| Tool Holder Positions | 0 |
Accuracy |
|
| Positioning | 0.0079 in/0.2 mm |
| Repositioning | 0.0020 in/0.05 mm |
Power |
|
| Voltage | 110V Single phase 60Hz |
| Amperage (Standard) | |
| Total Power | 1.2 kW |
| Total Amperage | 11A |
| Configuration Options | |
|---|---|
| Spindle Upgrade | N/A |
| N/A | |
| Table Top Options | N/A |
| N/A | |
| T-Slot Table | |
| Vacuum Pumps | N/A |
| N/A | |
| Gantry Height Increase | N/A |
| N/A | |
| Add-Ons | |

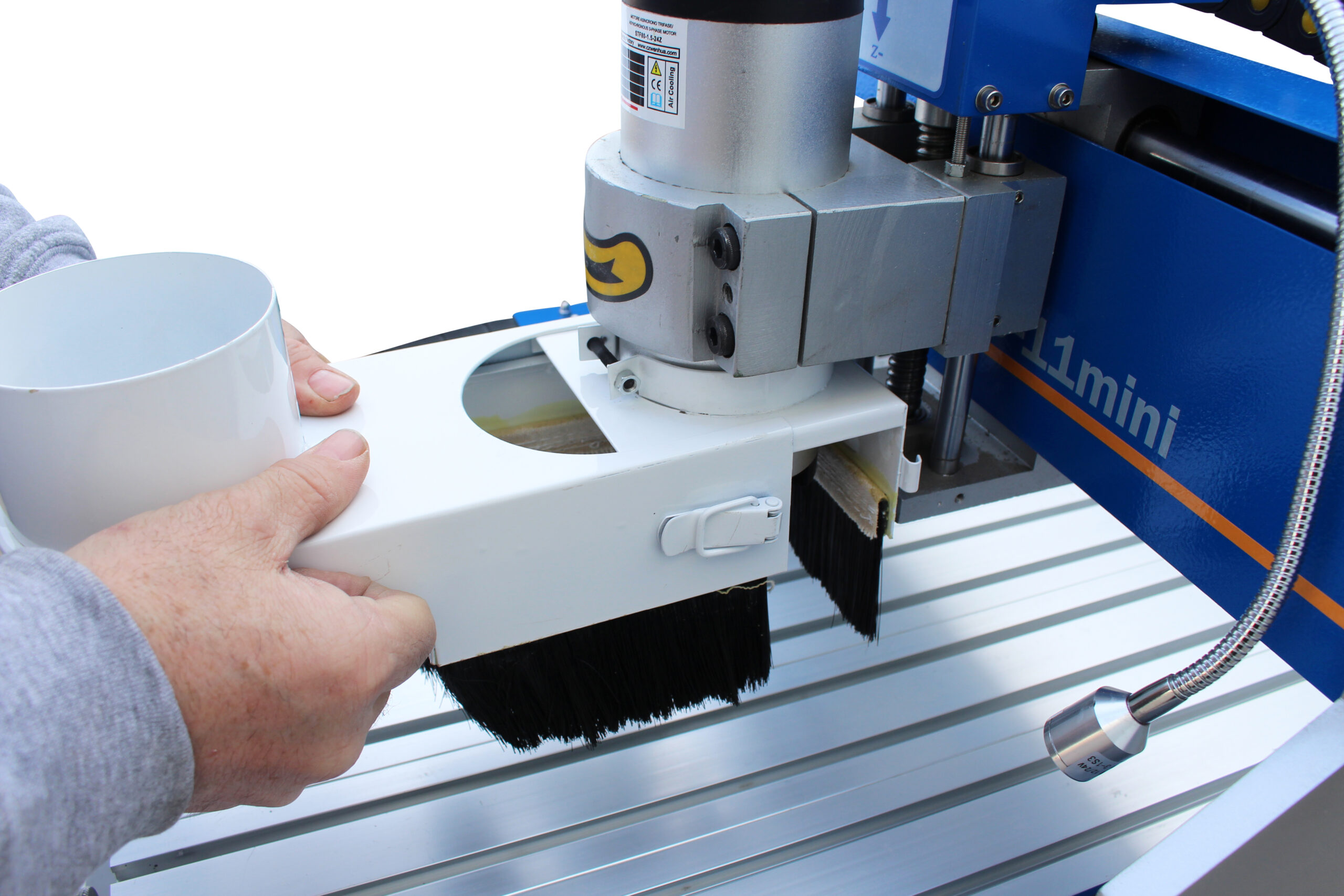

| Dust Collection | |
| Unist Mister System | |
| Starter Tool Set | |
| Rotary Axis | |
