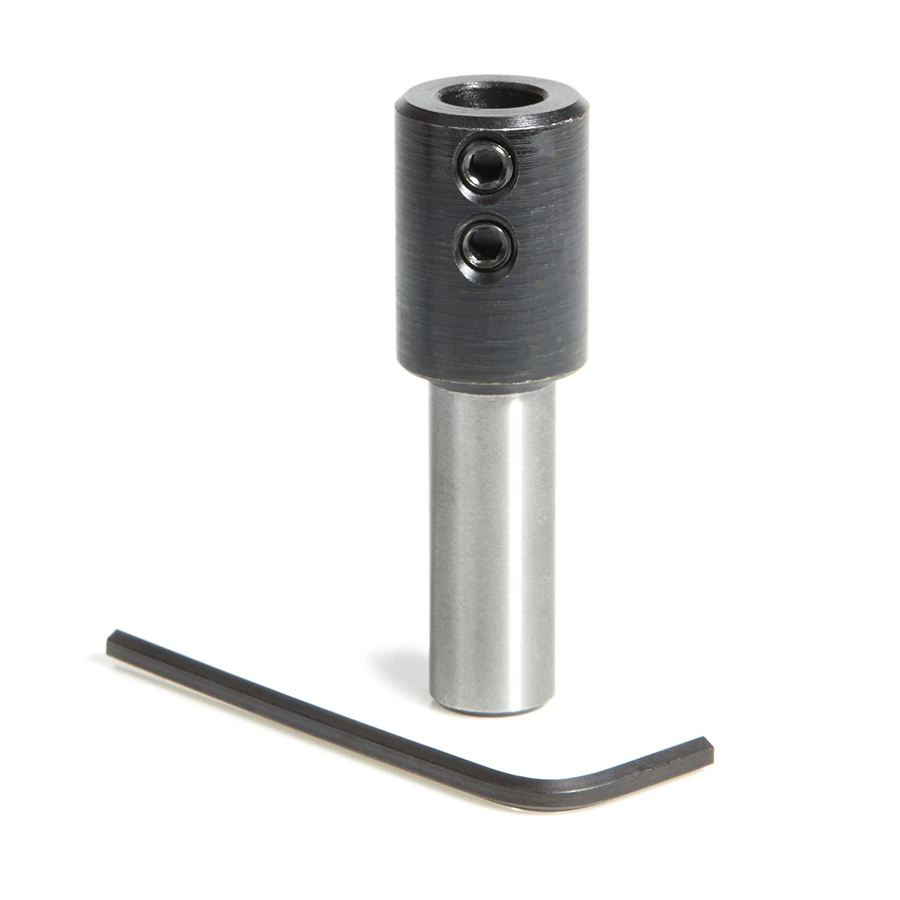

47638 10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder
$43.97
Usually ships on the 2nd business day from order date.
| Diameter-d | 3/4 |
|---|---|
| Shank-d | 1/2 |
| Overall-length-l | 2-7/16 |
| D1 | 10mm |
| L1 | 1-1/16 |
Description
Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines.
Total Indicated Run-out (TIR) is 0.00118″ (0.03mm)
Note: When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws.
Warning: Max RPM = 10,000
Specifications
| Diameter (D) | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-7/16 |
| D1 | 10mm |
| L1 | 1-1/16 |
