C2-510ATC RH

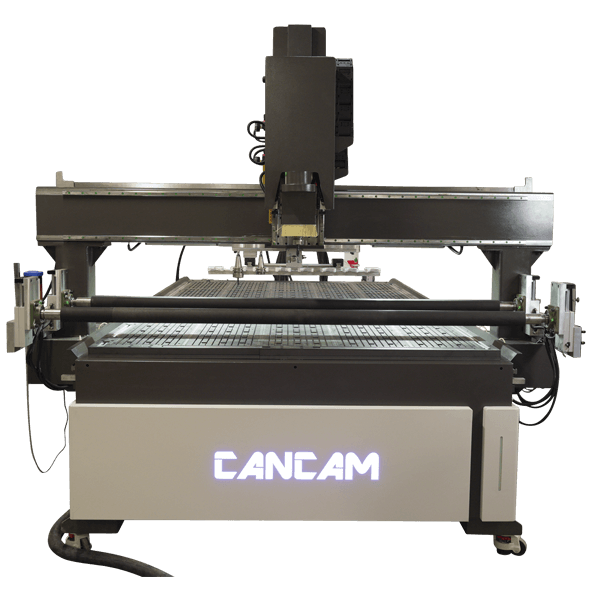

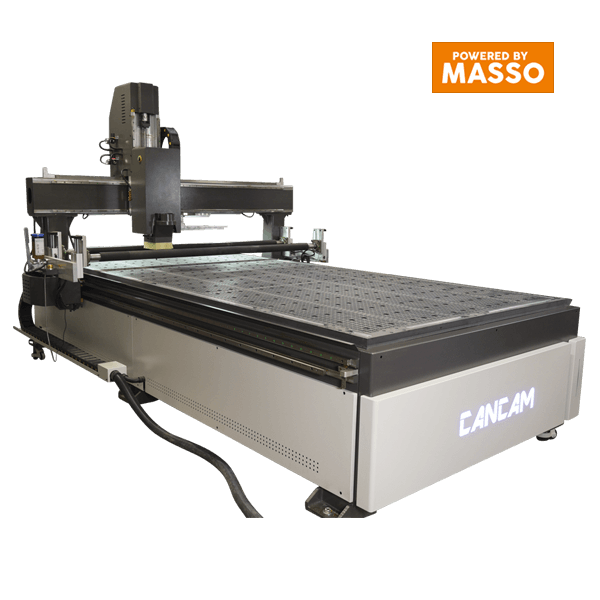

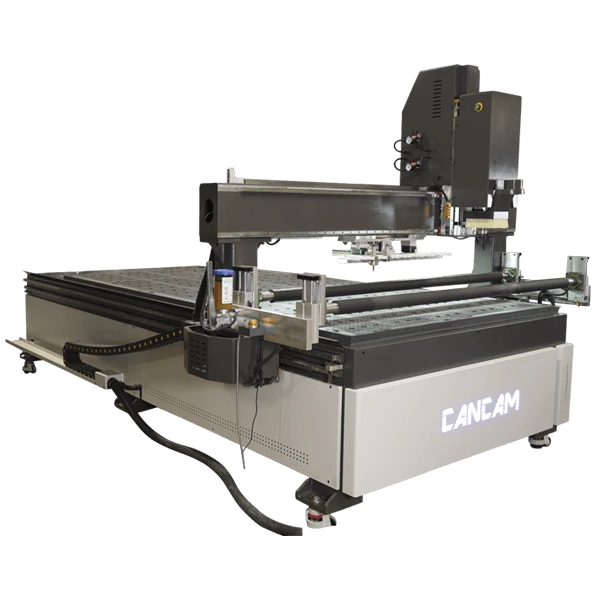

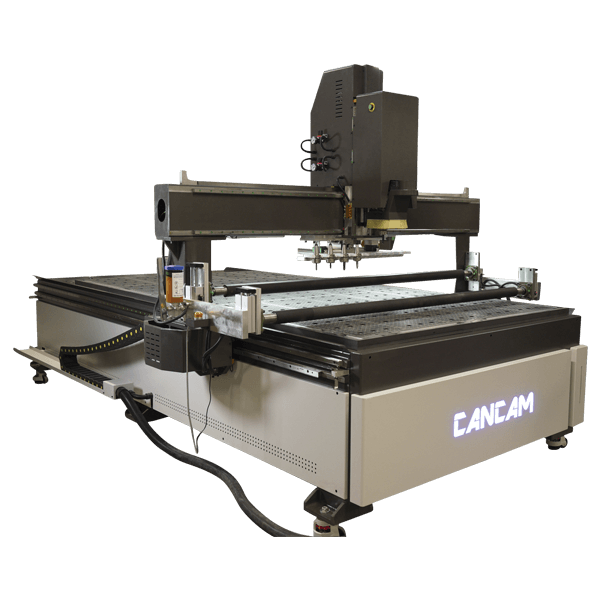

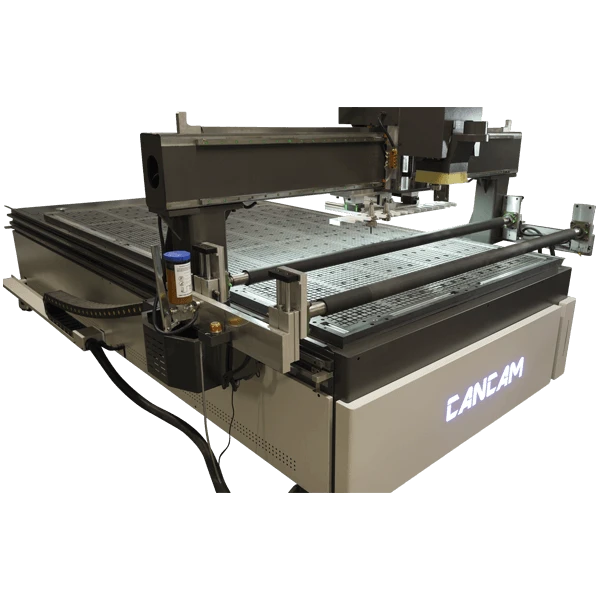

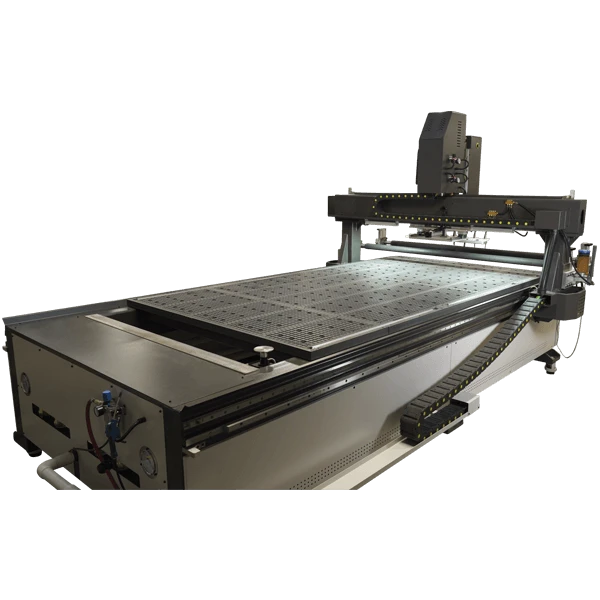

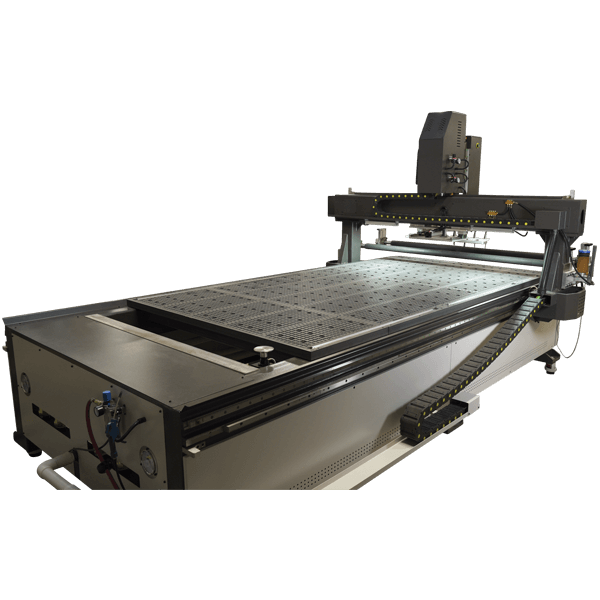

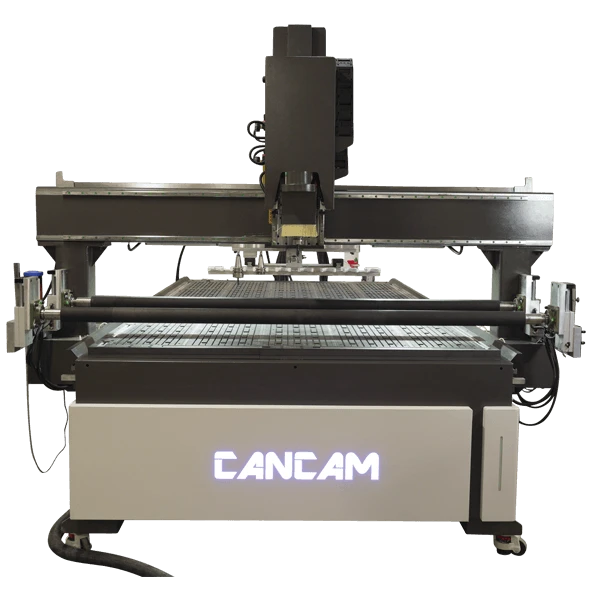

C2-510ATC RH CNC Router (5x10) – Automatic Tool Changer + Roller Hold
C2-510ATC RH
C2-510ATC RH CNC Router (5x10) – Automatic Tool Changer + Roller Hold
$51,250.00
The C2 Series CNC routers are engineered for medium to heavy-duty production, including nesting, furniture manufacturing, 2D/3D carving, and non-ferrous metal machining—offering high performance at an industrial-grade value.

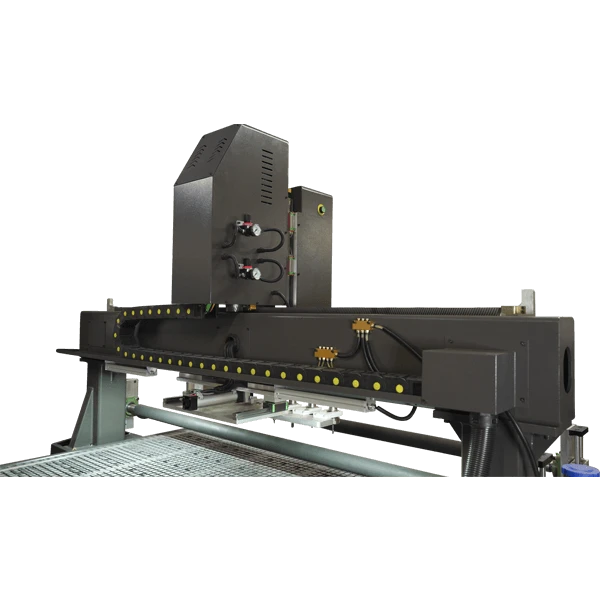

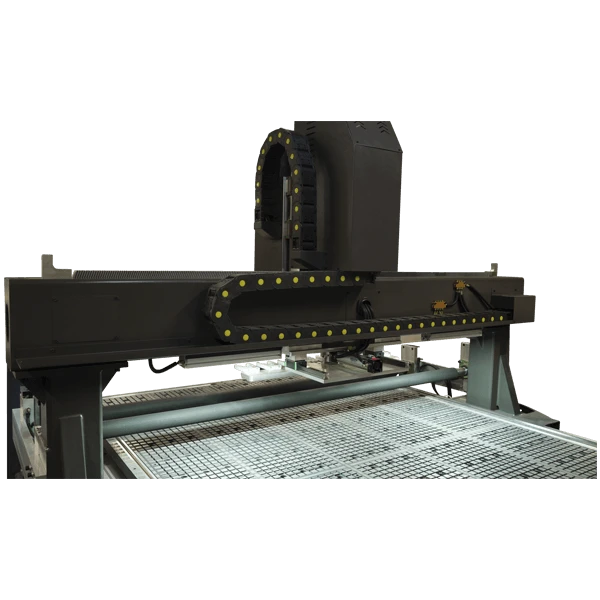

- Industrial Build: The C2-510ATC RH features a rigid steel frame and reinforced gantry for stable, vibration-free machining.

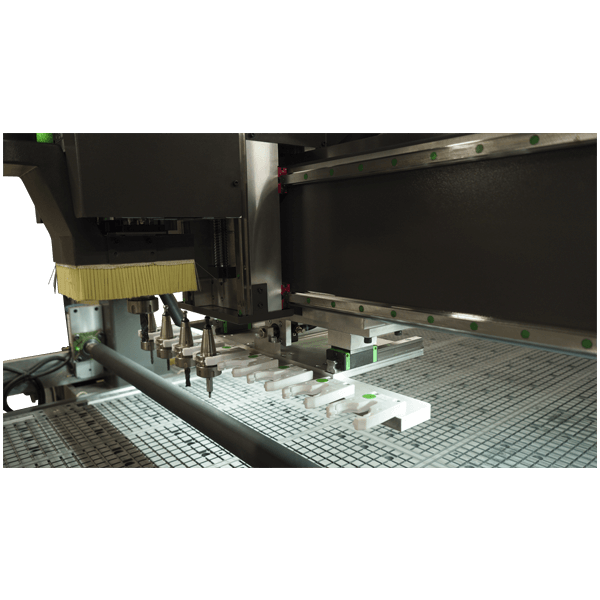

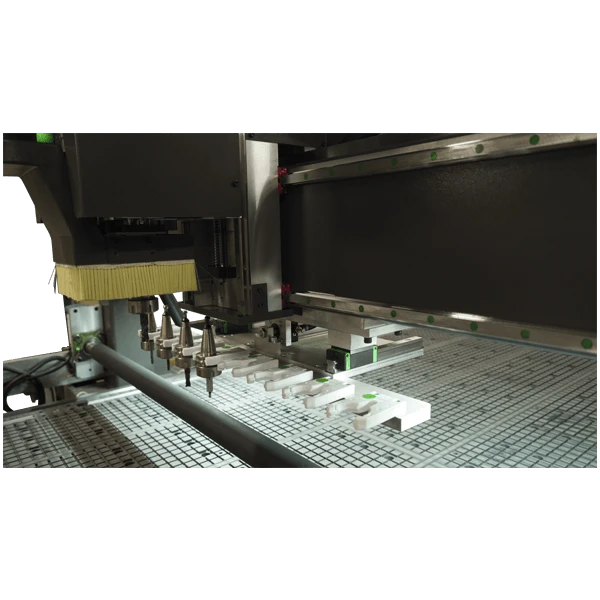

- Production Components: Equipped with an ATC spindle, servo motors, precision motion system, professional controller, and vacuum / T-slot table.

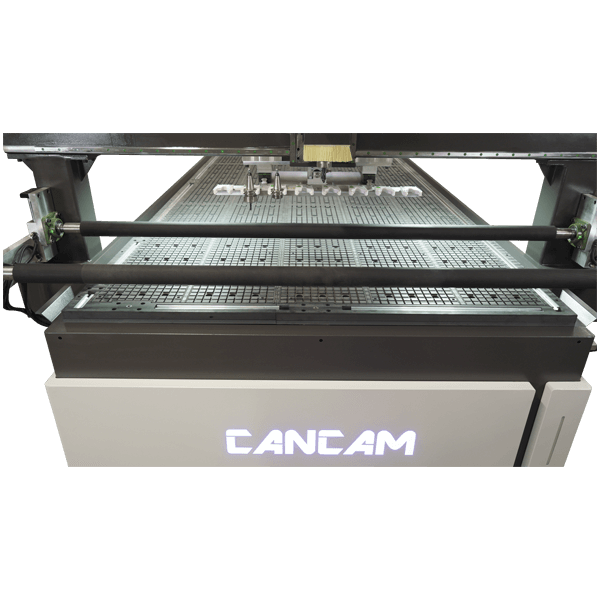

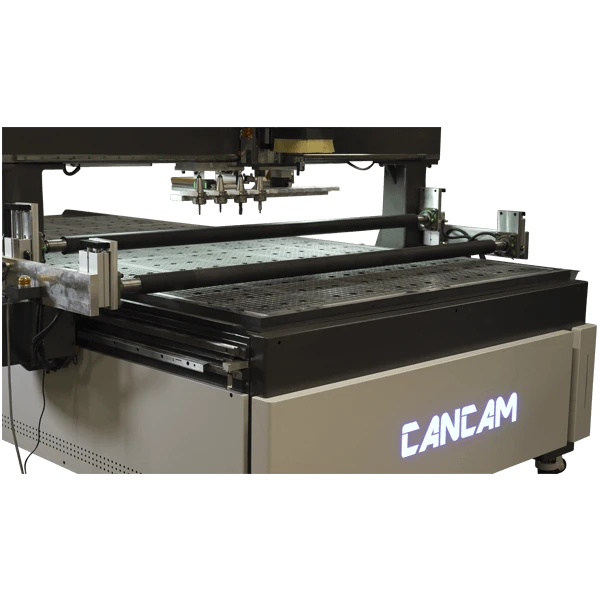

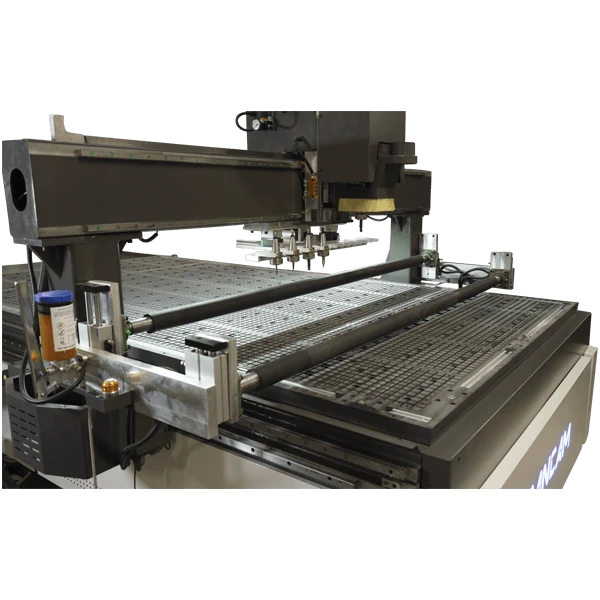

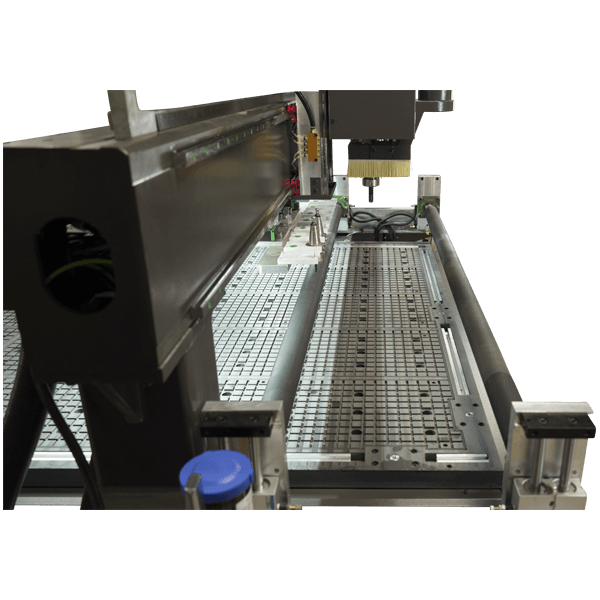

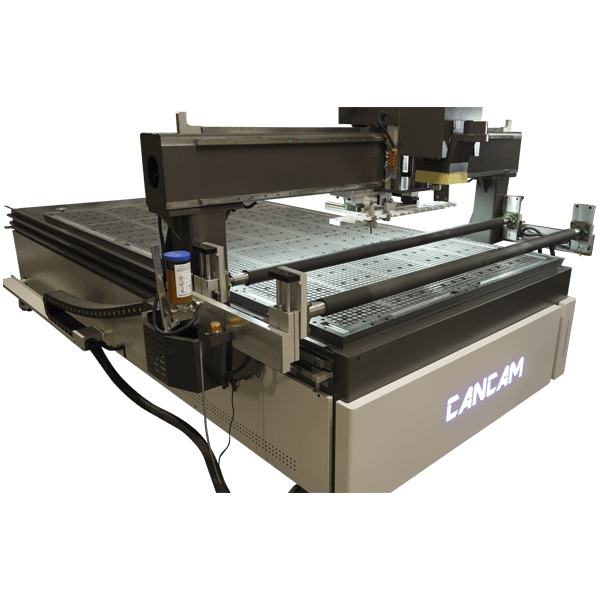

- Advanced Capability: Automatic tool changing and a pneumatic Roller Hold system that applies approximately 300 lb of clamping pressure automatically keep sheet goods flat and secure throughout every cut, reducing scrap and rework from material lift or bowing.
Item related to this Product
-
$5,124.00 -
$6,406.00 -
$13,488.00 -
$7,818.00 -
-
$1375 -
$1450 -
$420 -
$279.99 -
$9 -
$3,450.00 -
$4,400.00 -
-
-
$900 -
$2500 -
$2000 -
$1050 -
$1900 -
$1550 -
$420 -
$420
-
$420
-
$420
-
$9
Description
The C2-510ATC RH delivers high-speed, high-accuracy machining with a powerful ATC spindle capable of speeds up to 24,000 RPM and fast feed rates, ensuring excellent surface finish while minimizing cycle time. Faster cutting translates directly into higher productivity and improved shop efficiency.

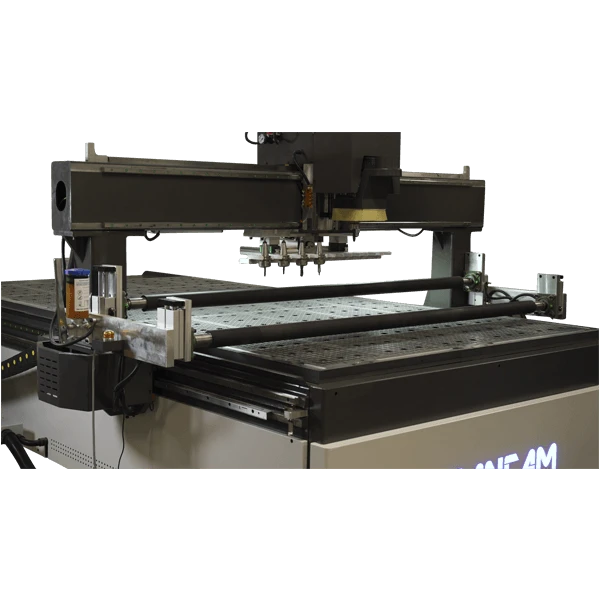

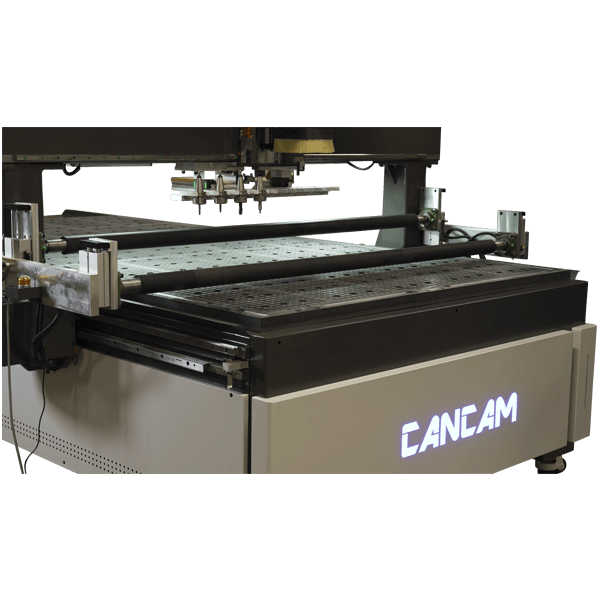

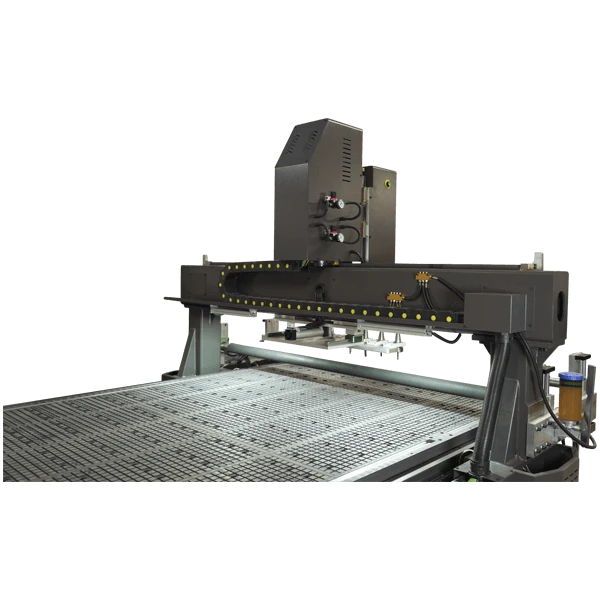

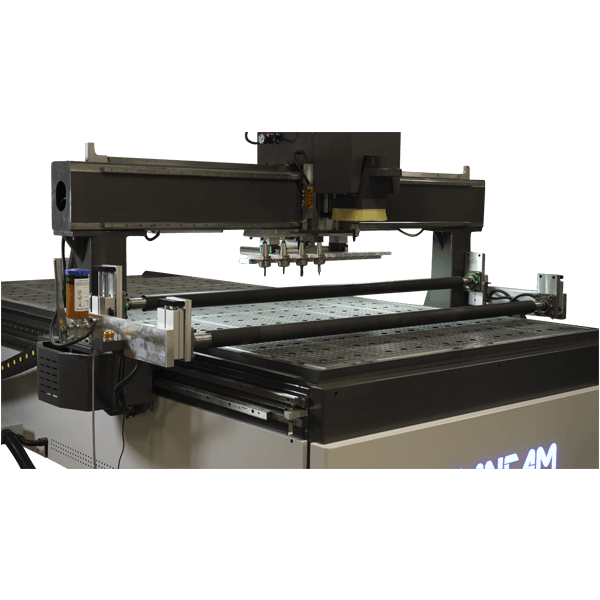

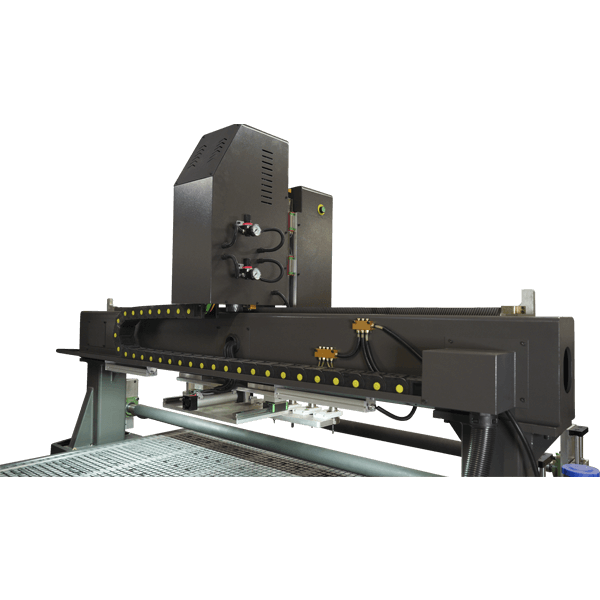

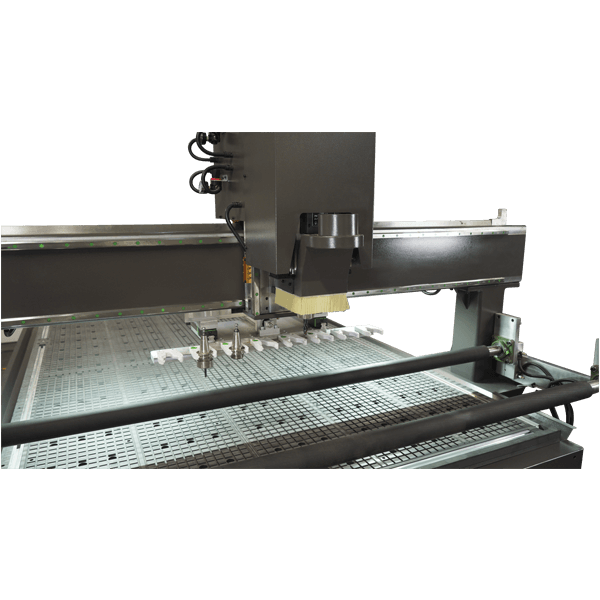

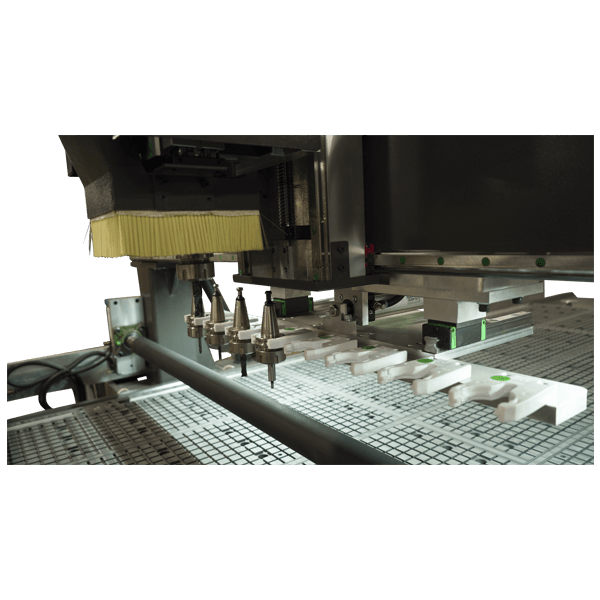

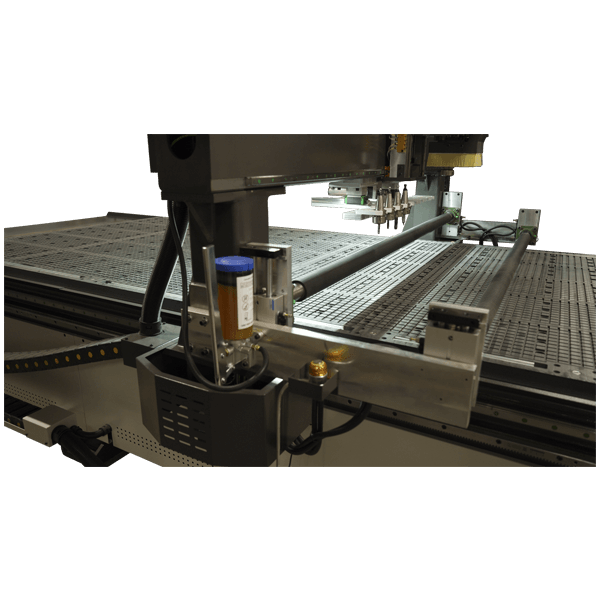

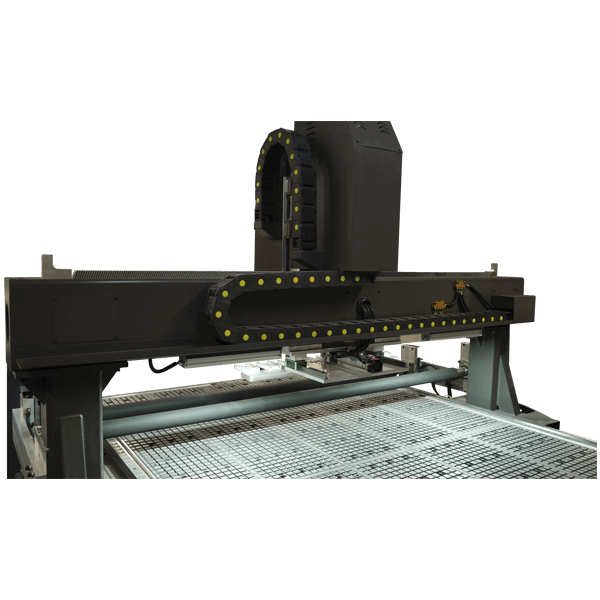

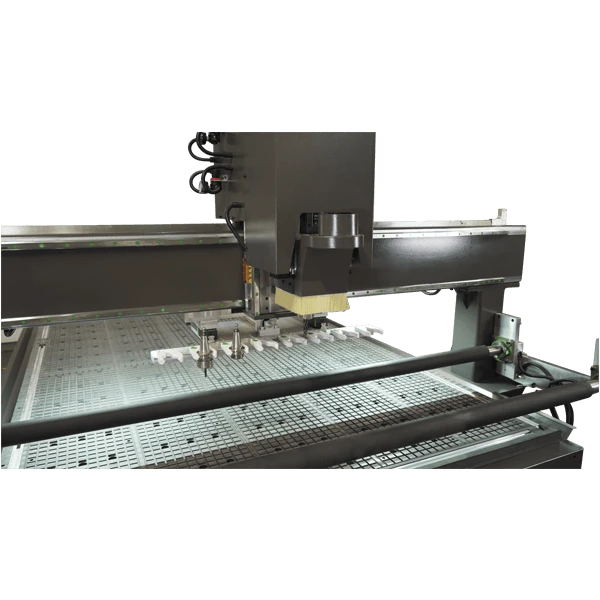

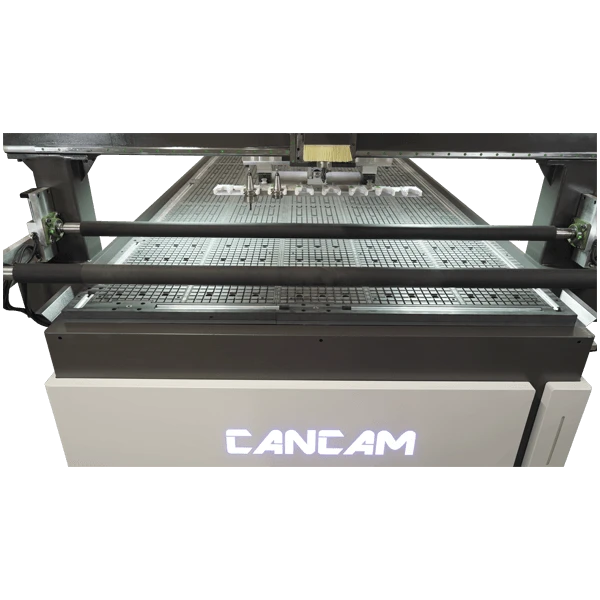

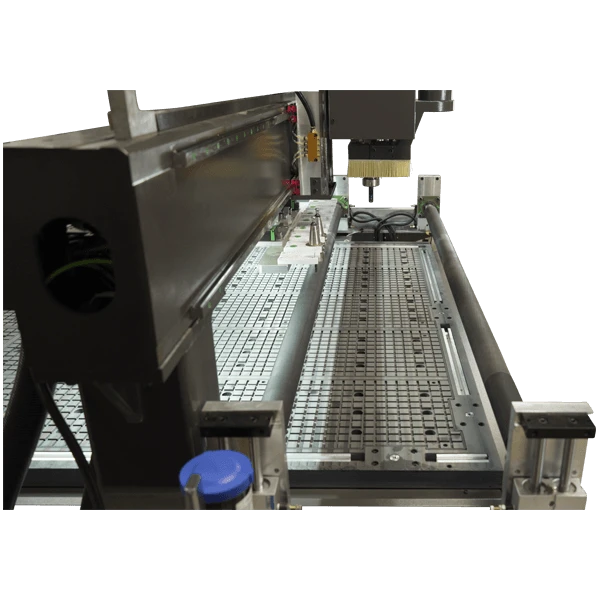

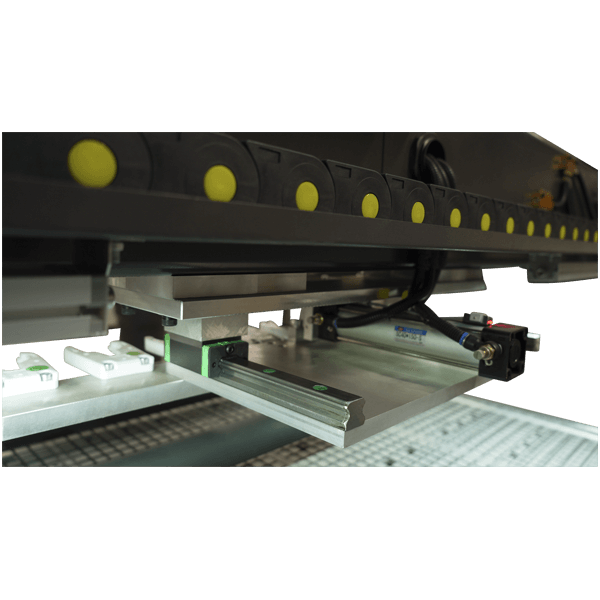

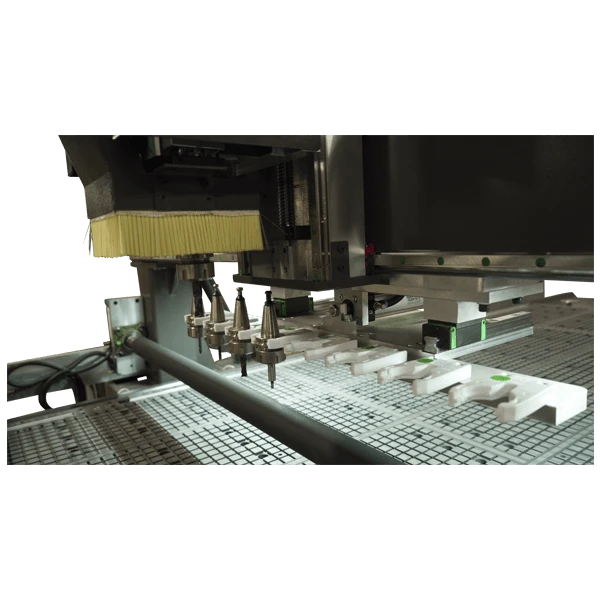

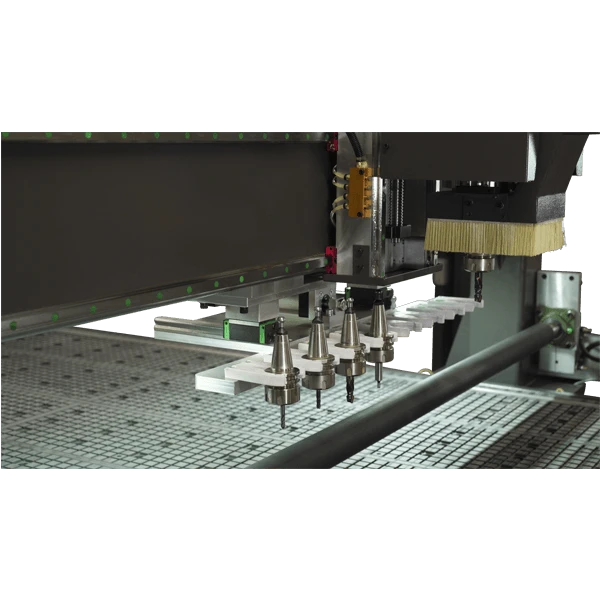

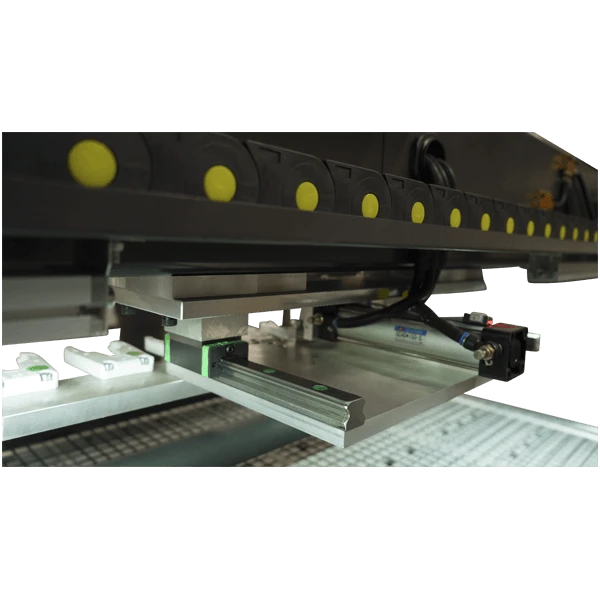

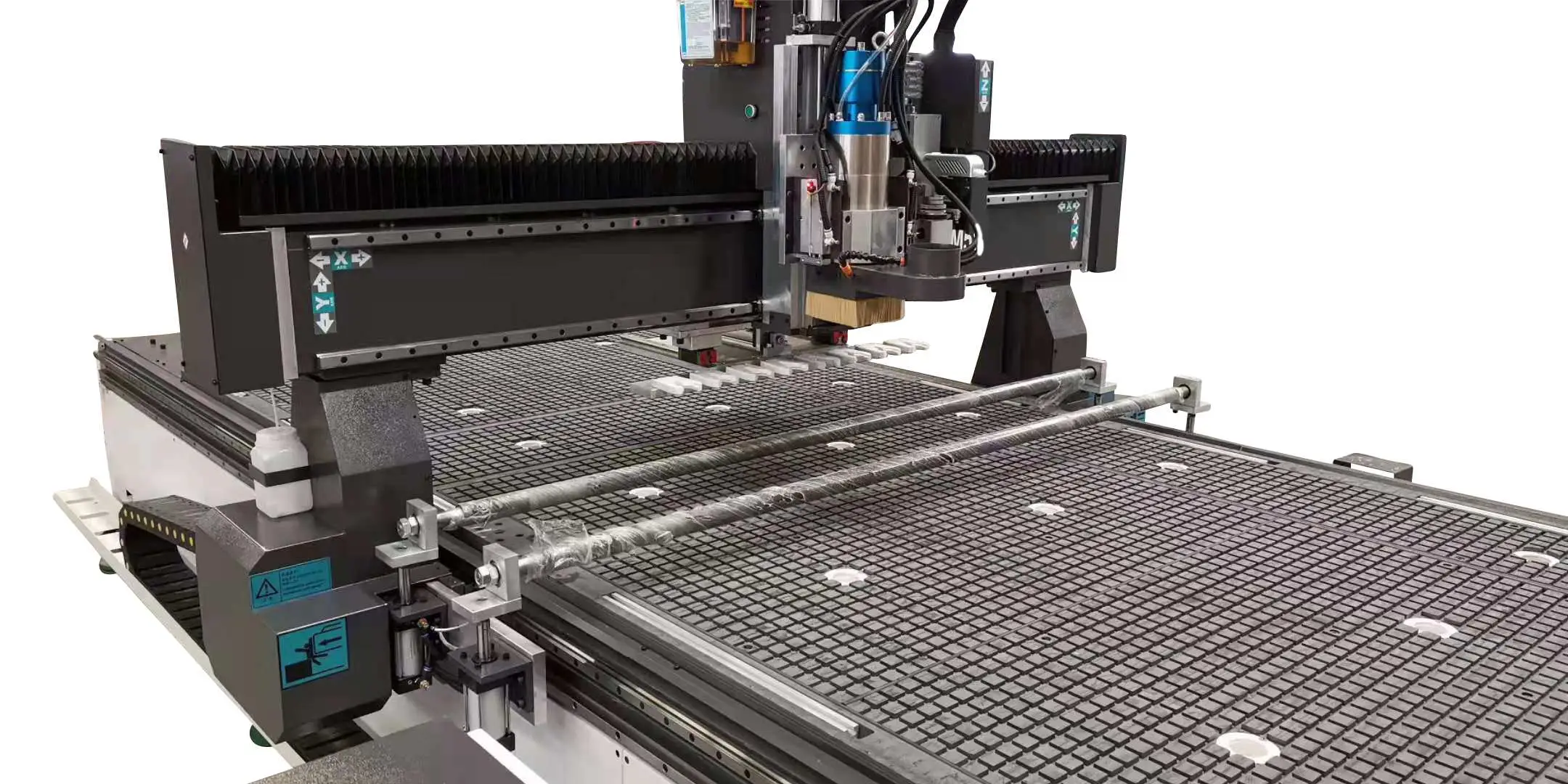

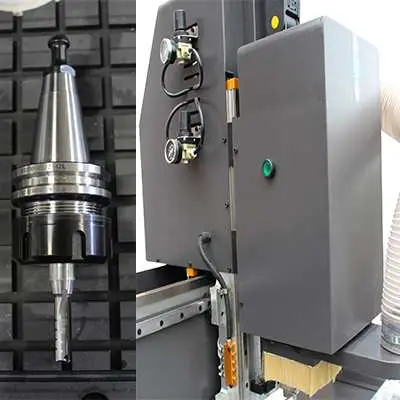

The machine is equipped with an automatic tool changer spindle, industrial servo motors, Hiwin linear guideways, a tool length sensor, and a precision rack and pinion and ballscrew drive system (as configured). Combined with its rigid industrial frame and pneumatic Roller Hold system, the C2-510ATC RH is a production-ready CNC router designed to deliver consistent cutting, engraving, and 3D machining results in demanding environments. The Roller Hold system automatically actuates during operation, applying approximately 300 lb of downward pressure to keep sheet goods flat and secure, making it especially effective for materials prone to bowing such as plywood and aluminum sheet.
Product Features
 | Single phase or 3 phase power |
 | Pneumatic Or Electric Solenoid actuated vacuum zones |
 | Two calibrators |
 | Easy sheet rollers |
 | Integrated lubrication system |
 | Tool change fixture |
 | Low maintenance |
 | Pop up location pins |
 | LED lights |

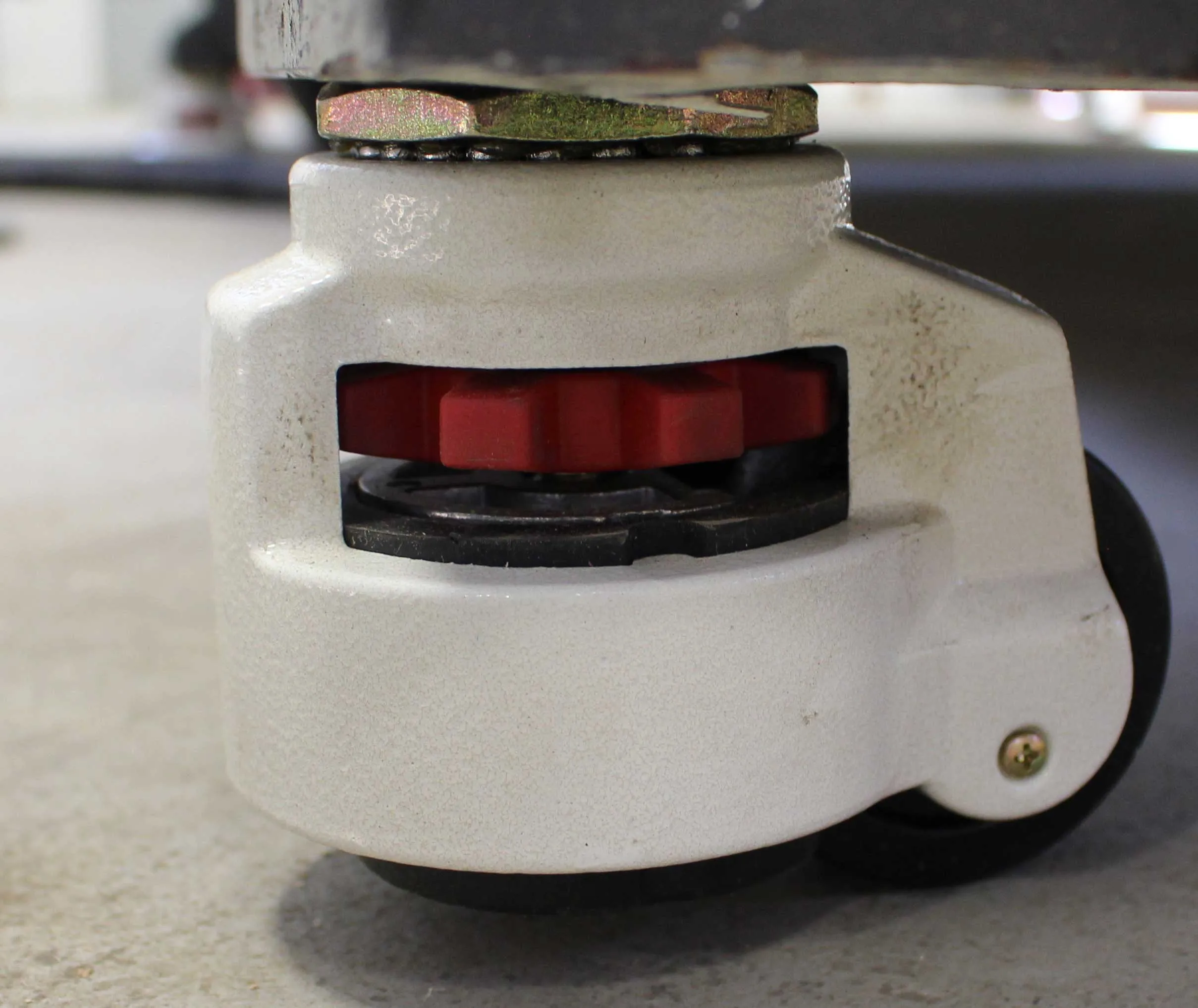

 | Castors for ease of mobility |
 | Built in rotary axis |
 | Quick release tool holder |
Optional Accessories

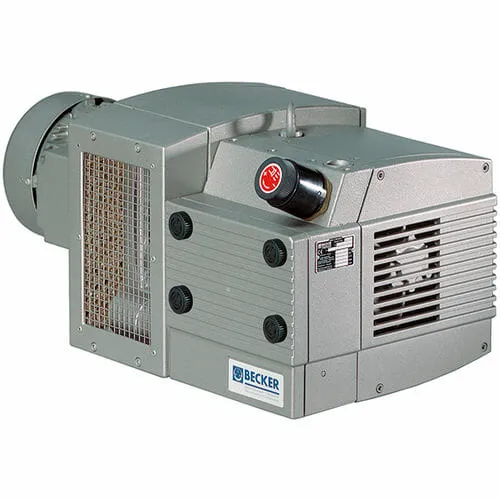

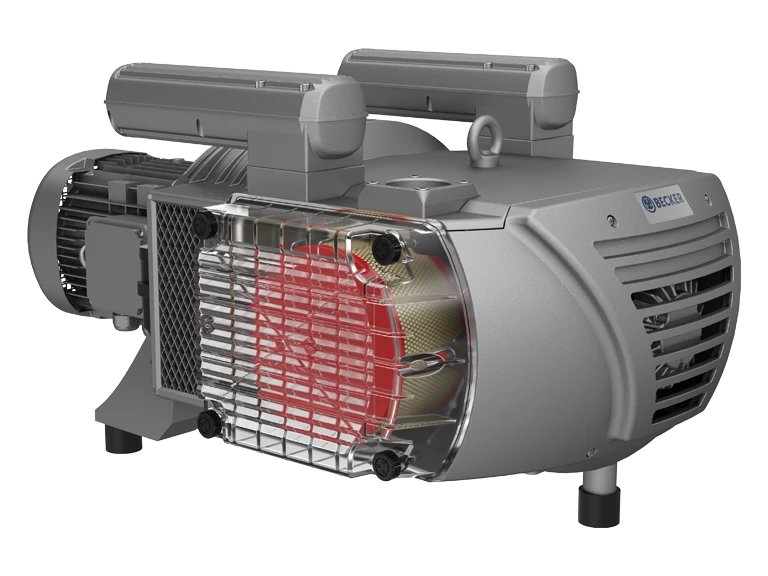

 | Three Phase Vacuum Pump Three phase vacuum pumps can be more efficient on electrical consumption in comparison to single phase. The main benefit from the use of a three phase vacuum pump such as Becker is the additional holding pressure measured in Hg sealed vacuum, which means millimeters of mercury. A three phase vacuum has the potential capability to hold down some material/substrate more effectively with less slippage for this reason. This product requires for you to have 208-600v three phase power available at your location. |

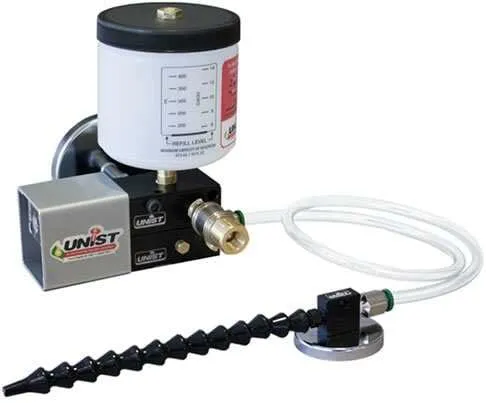

 | Coolubricator JR™ Lubrication system’s durable, 16 oz. (0.5 L) vented reservoir. The Coolubricator JR™ combines lubricant and air in a co-axial nozzle tip. The oil mist lubrication system keeps atomization and distribution of the liquid consistent regardless of the hose length. Plastic 12 in. nozzle is coupled with 5 ft. Co-Axial hose. A heavy-duty magnetic base at the hose/nozzle connection of the oil mist lubrication system makes it easier to relocate and position the nozzle at the friction points. Typically used for the maching non ferrous metals to prevent welding and increase tool longevity. |

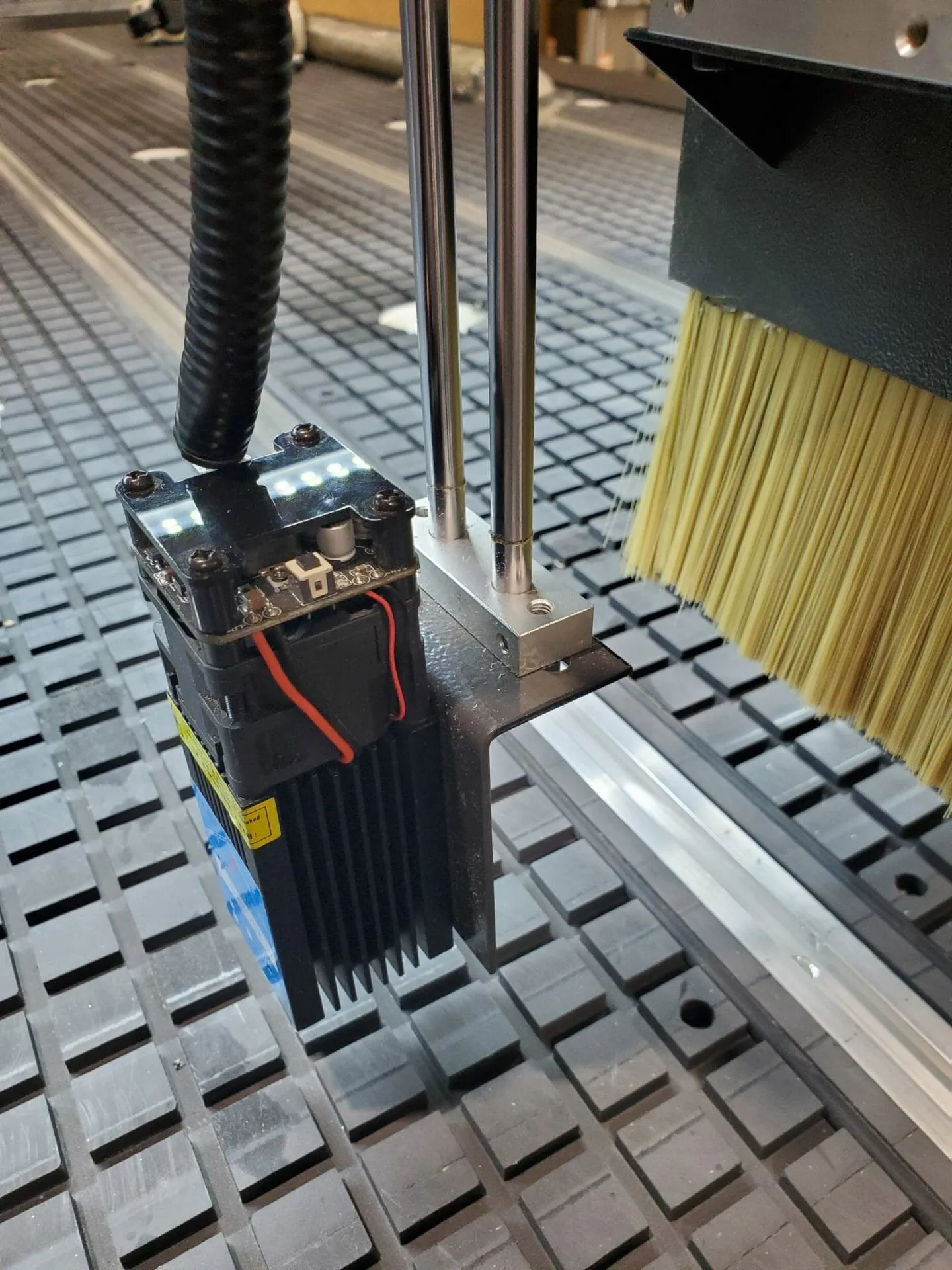

 | The 9 watt laser diode is 445 nm An accessorial add on of a diode laser is useful for a variety of cuts or engravings. Fast and easy engraving on polished and anodized aluminum, steel, stainless steel without engraving paste, copper & brass. Laser engraving on plywood or balsamic birch, leather, glass,acrylic, stone,plastics. |
 | Donek Tools D1 Drag Knife The Donek Tools Drag Knife for CNC routerss can be used to cut almost anything you would cut with a utility knife, but with the speed and precision of a CNC router. The Donek Drag Knife fits into your CNC router or spindle collet, making it a universal fit for almost any CNC router available. The tools were designed to use a utility knife blade (which can be purchased at just about any hardware store) which dramatically reduces the cost of consumable blades. Fits in 1/2in Collet. Common materials that are used with this tool are wood veneer for inlay/marquetry artwork, leather, carbon fiber pre-preg laminates for aerospace, military, and automotive components, cardboard for custom packaging, and much more. |

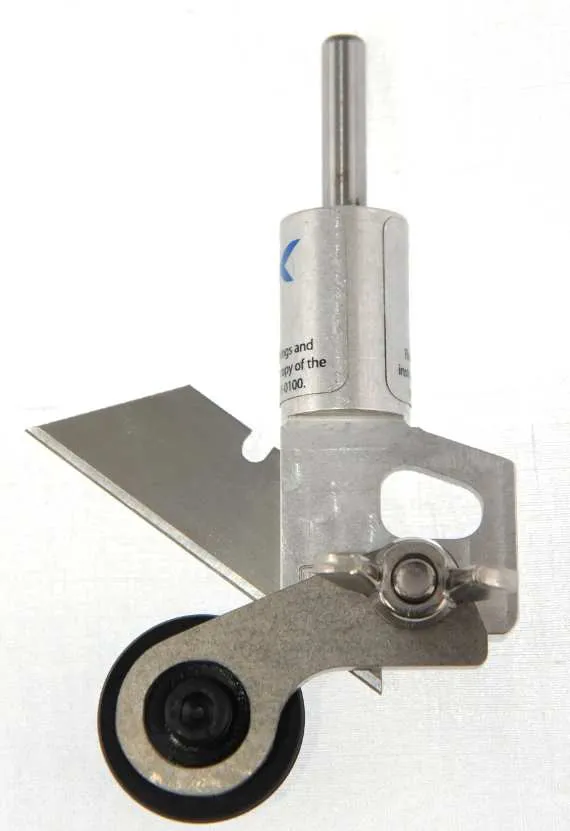

 | Donek Creasing Attachment Donek CNC router creasing attachment can be used to crease cardboard, foam and similar materials. Fits on all Donek Tools Drag Knives except the 1/2″ knife (D2 or D4 recommended) |
 | Mill Foam Matt Mill foam mat is ideal for wood, plastics or aluminum that is uneven or wavey. The purpose of this product is to assist in creating a vacuum seal between your spoilboard and the workpiece. This product is made in Germany and can be used for a long period of time if you do not cut all the way through it. Please note the milling foam matt is sold in 60×12” width x length at a 3mm thickness. |

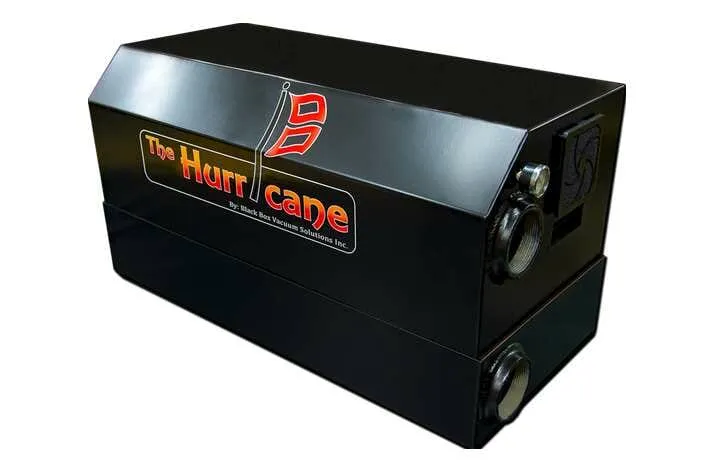

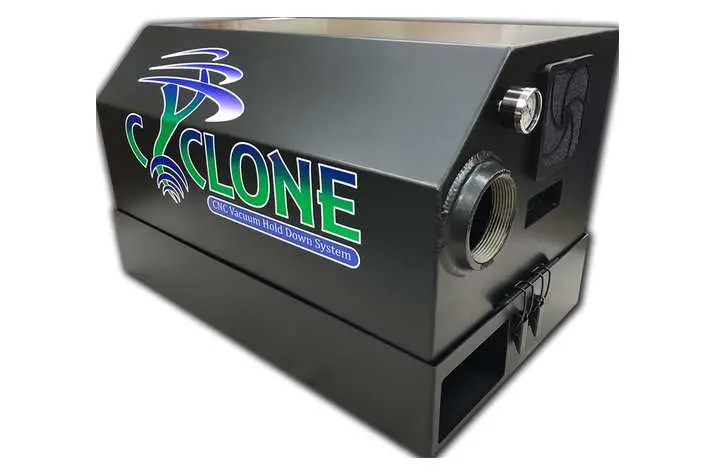

 | Single Phase Vacuum Pump Single phase vacuum pumps work for majority of our clients end use application. |

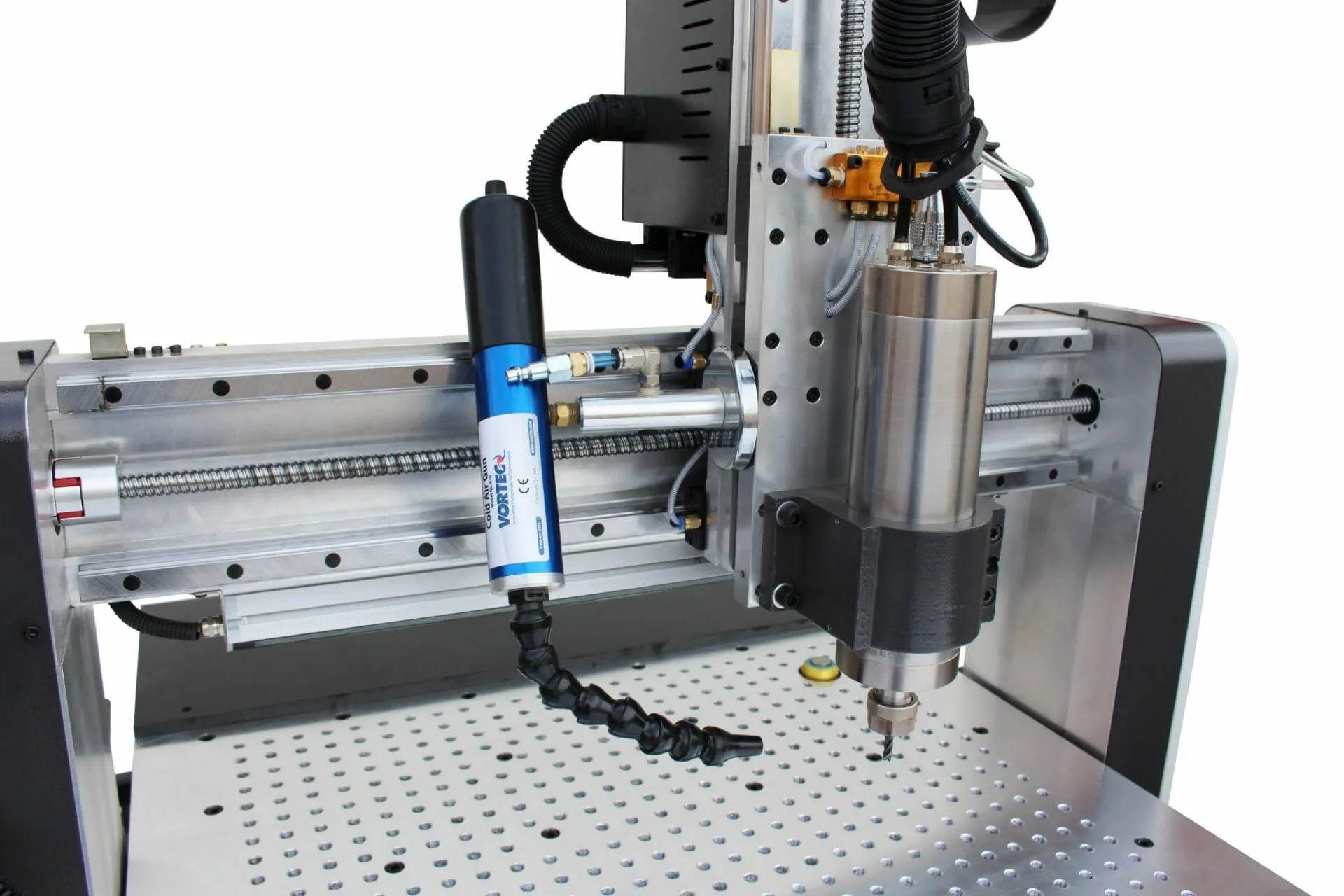

 | Vortec Mini Cold Air Gun Cold Air Guns use vortex tube technology and filtered compressed air to produce sub-freezing air as low as -30 deg F for numerous industrial spot cooling applications. With no moving parts to wear out, Cold Air Guns require no electricity at the target, just a compressed air source. Cold Air Guns are most often used for cooling of metal parts such as your cutting tool when machining to prevent welding and tool wear. |

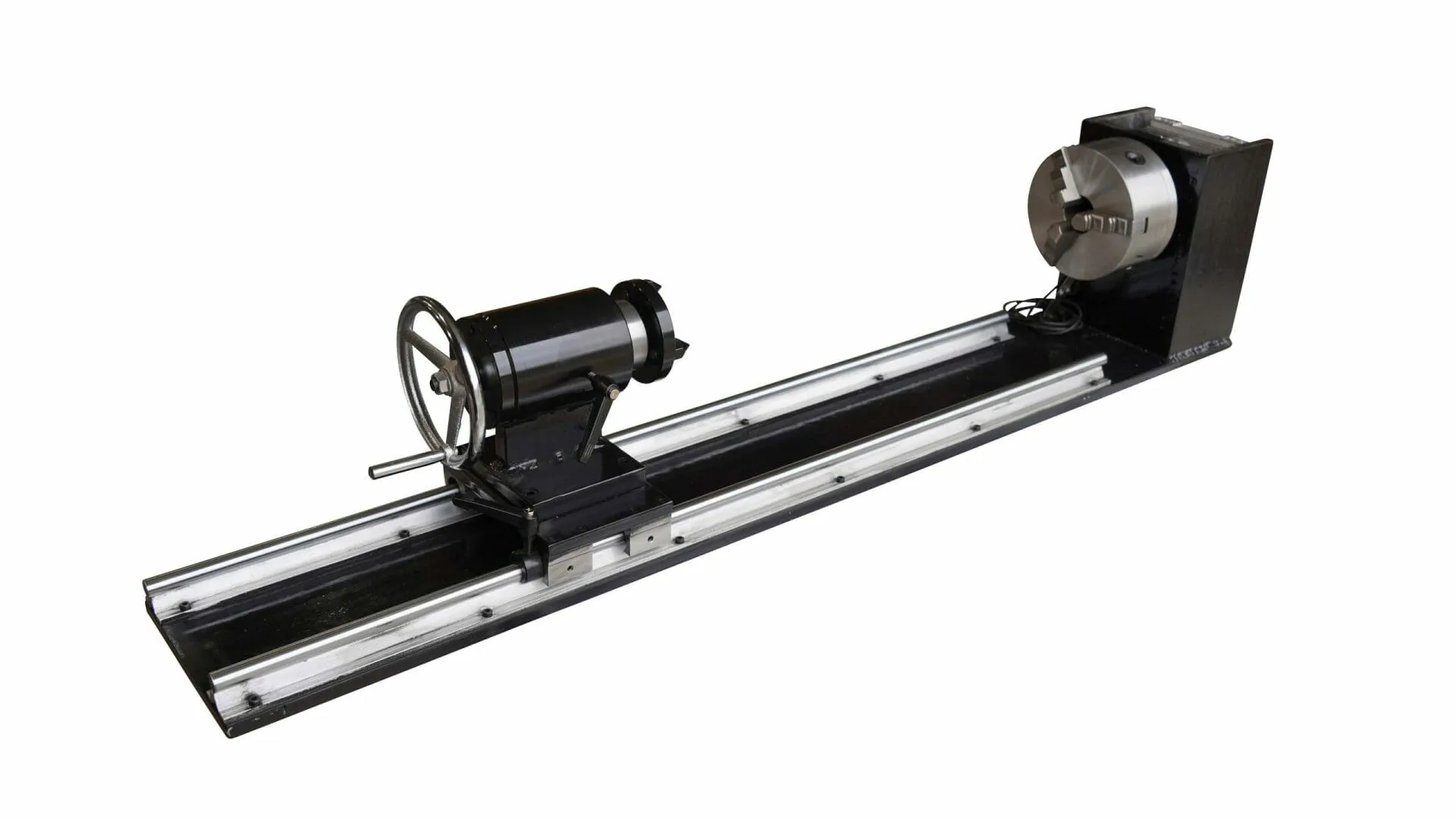

 | Rotary Lathe 1 Piece The one piece CNC router rotary lathe is extremely robust and heavy duty. |
 | Two piece rotary lathe The two piece CNC router rotary lathe is meant for a light for medium duty workload. |

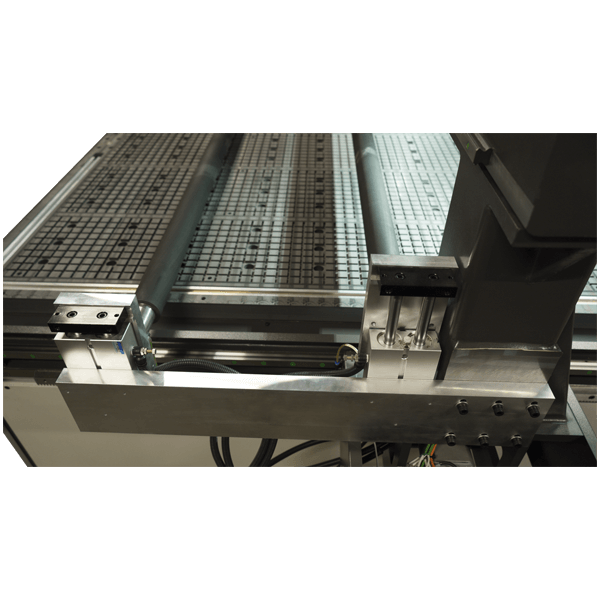

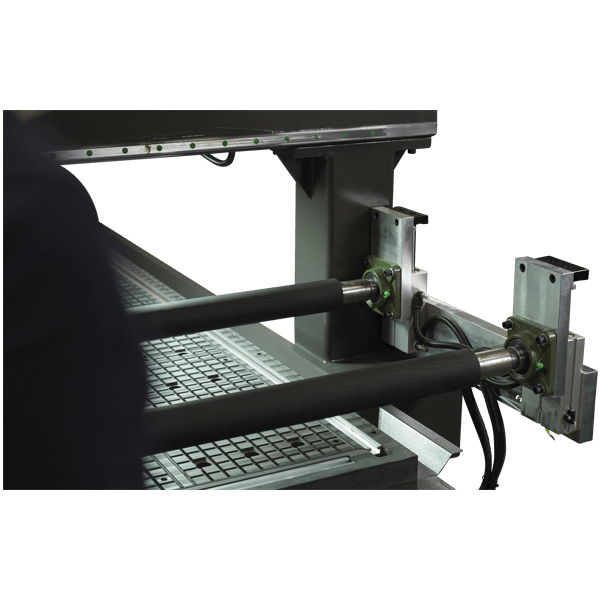

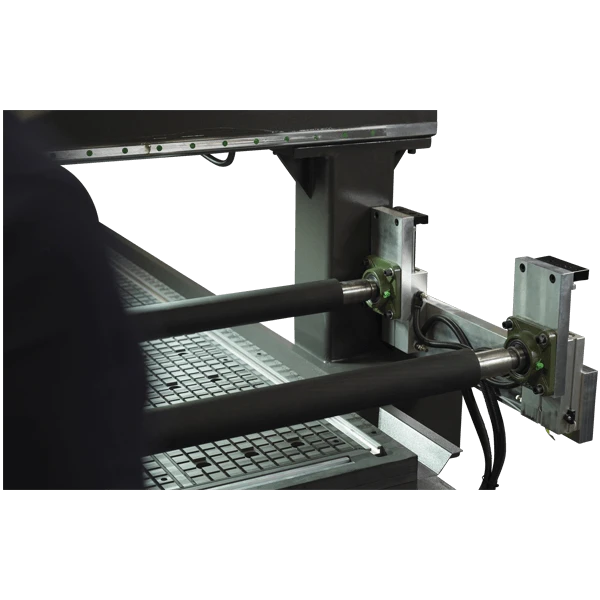

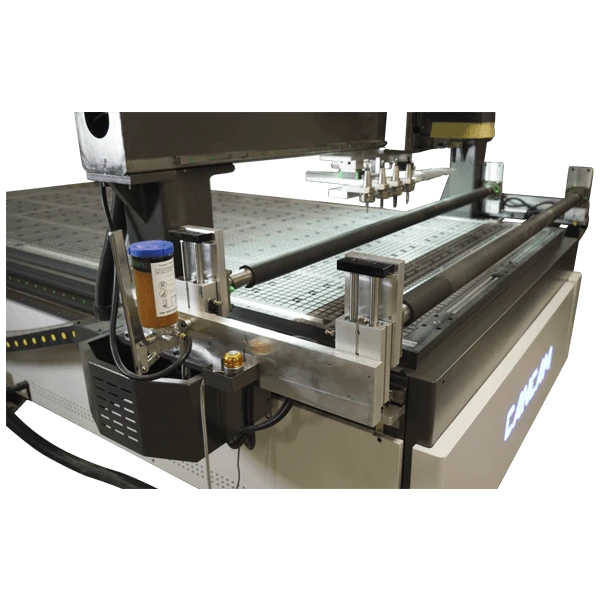

 | Hold Down Pressure Rollers 2 fully automated rollers on each side of the cutting spindle envelope, which engage the sheet material to maintain firm contact with the router’s table. The hold down pressure rollers are ideal for holding down warped stock, multiple stacked material, or when machining narrow, low surface area parts. Each roller offers full, independent control over regulating holding pressure, It is important to note that the rollers are designed to supplement (not replace) the standard vacuum holding, creating optimal performance and maximum speed without moving parts. |

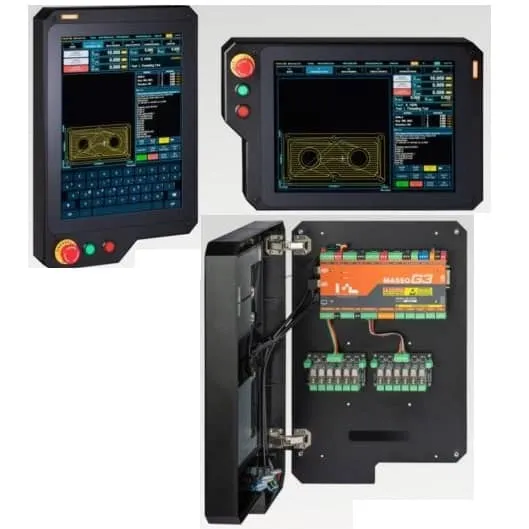

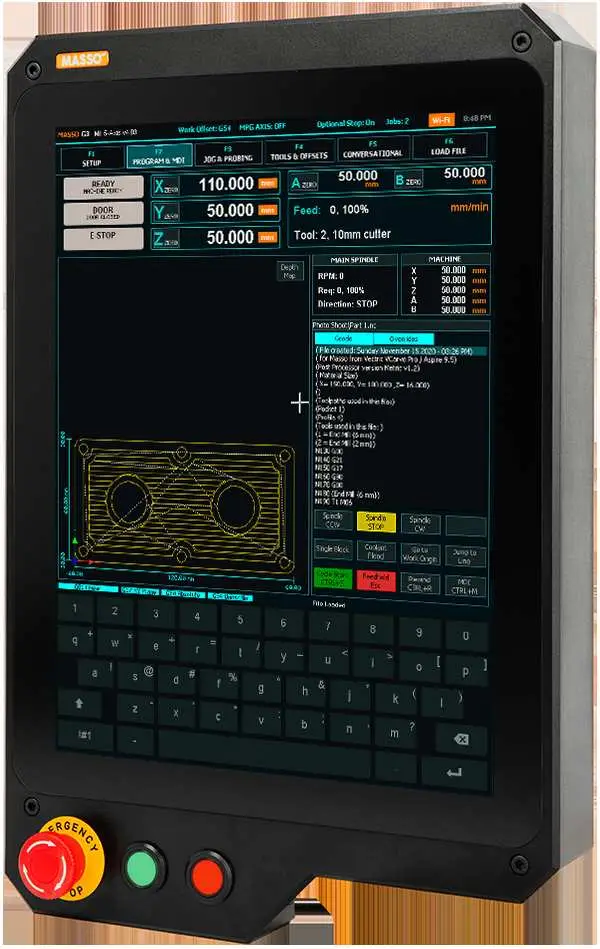

 | Masso Controller Our highly recommended robust CNC controller solution that is guaranteed to deliver a fun and productive experience. This controller is astand alone solution and does not require a computer to run. The Masso controller features Wifi, interpolating axis, touch screen, dual screen positioning and ease of control. |
- mm
- inch
Specification
Physical Features
| Machining Bed Width/Length | 3048 mm x 1524 mm |
| Z Travel | 305 mm |
| Gantry Height Clearance Standard | 280 mm |
| Gantry Height Clearance Option | 203 mm or 381 mm |

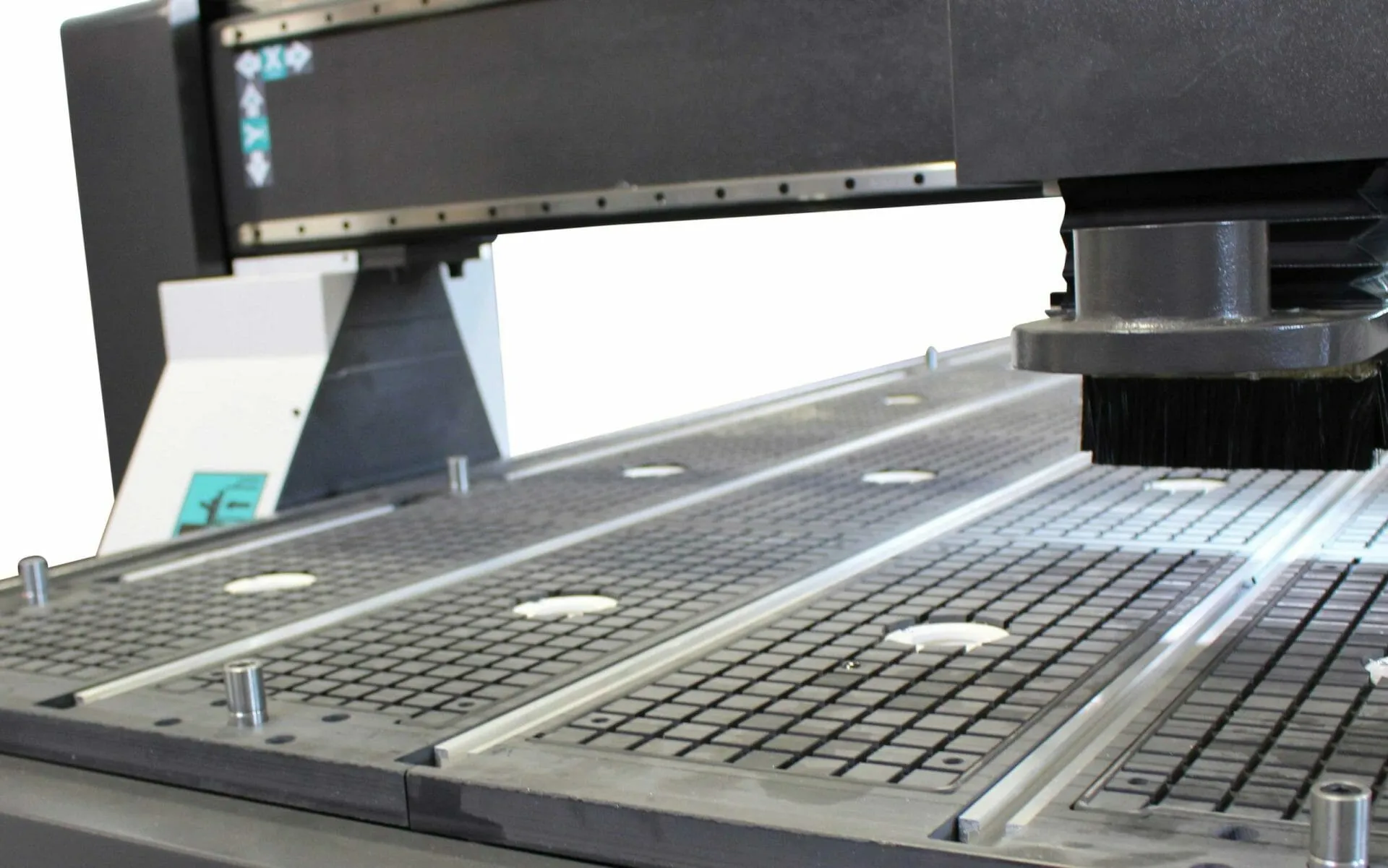

| Table Top | 6 zone T-Slot/Vacuum Combo Table |
| Location Pins | Included |
| Centralized Lubrication | Included |
| Leveleing Castors | Included |
| Auto Tool Touch off-Mobile | Included |
| Auto Tool Touch off-Fixed Position | Included |
| Machine Footprint | 3995 mm x 2520 mm x 2032 mm |
| Electrical Cabinet Size | 560 mm x 1400 mm x 1020 mm |
| Net Weight | 4000 lbs/1815 kg |
| Gross Weight | 4000 lbs/1815 kg |
Power
| Voltage | 220V Single phase 60Hz |
| Optional Voltage | 208V three phase |
| Rated Power Requirement with vacuum pump | 40 AMP |
| Power Requirement without vacuum pump | 20 AMP |
Controller
| Interface | MASSO G3 Touch |
| Type | Industrial capacitive touch |
| Screen Size | 15 inch LED |
| Touch Screen | Included |
| Operating System | Dedicated |
| Inputs | USB |
| MPG Handwheel | Included |
| Wifi File Transfer | Included |
| Controller Upgrade Option | N/A |
Standard Spindle
| Model | Generic |
| Power | 6.0 KW / 8 HP |
| Max Speed | 18000 RPM |
| Collet Size | ER 32 ISO 30 |
| Spindle Upgrades | 9.0 KW / 12 HP (ER32 ISO 30) |
| Variable Frequency Drive | N/A |
| Cooling System | Air Cooled |
| Tool Change Type | Automatic |
| Tool Holder Positions | 8 |
Drive System
| Motor | Leadshine 7 Series |
| Type | Servo |

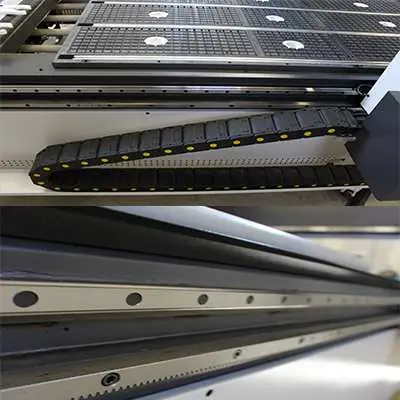

| Transmission | X and Y axis - Helical Rack and Pinion Drive/Z axis - TBI Ball Screw/PMI Linear Guide rails for all axes |
Speed
| Rapid Speed XY | 1000 IPM |
| Rapid Speed Z | 400 IPM |
| Max Cutting Speed | 1000 IPM |
Tool Calibrator
| Fixed Position | Included |
| Portable | Included |
Accuracy
| Positioning | 0.05 mm |
| Repositioning | 0.05 mm |
Physical Features
| Machining Bed Width/Length | 120in x 60in |
| Z Travel | 12in |
| Gantry Height Clearance Standard | 11in |
| Gantry Height Clearance Option | 8" or 15" |
| Table Top | 6 zone T-Slot/Vacuum Combo Table |
| Location Pins | Included |
| Centralized Lubrication | Included |
| Leveleing Castors | Included |
| Auto Tool Touch off-Mobile | Included |
| Auto Tool Touch off-Fixed Position | Included |
| Machine Footprint | 157in x 100in x 80in |
| Electrical Cabinet Size | 22in x 55in x 40in |
| Net Weight | 4000 lbs/1815 kg |
| Gross Weight | 4000 lbs/1815 kg |
Power
| Voltage | 220V Single phase 60Hz |
| Optional Voltage | 208V three phase |
| Rated Power Requirement with vacuum pump | 40 AMP |
| Power Requirement without vacuum pump | 20 AMP |
Controller
| Interface | MASSO G3 Touch |
| Type | Industrial capacitive touch |
| Screen Size | 15 inch LED |
| Touch Screen | Included |
| Operating System | Dedicated |
| Inputs | USB |
| MPG Handwheel | Included |
| Wifi File Transfer | Included |
| Controller Upgrade Option | N/A |
Standard Spindle
| Model | Generic |
| Power | 6.0 KW / 8 HP |
| Max Speed | 18000 RPM |
| Collet Size | ER 32 ISO 30 |
| Spindle Upgrades | 9.0 KW / 12 HP (ER32 ISO 30) |
| Variable Frequency Drive | N/A |
| Cooling System | Air Cooled |
| Tool Change Type | Automatic |
| Tool Holder Positions | 8 |
Drive System
| Motor | Leadshine 7 Series |
| Type | Servo |
| Transmission | X and Y axis - Helical Rack and Pinion Drive/Z axis - TBI Ball Screw/PMI Linear Guide rails for all axes |
Speed
| Rapid Speed XY | 1000 IPM |
| Rapid Speed Z | 400 IPM |
| Max Cutting Speed | 1000 IPM |
Tool Calibrator
| Fixed Position | Included |
| Portable | Included |
Accuracy
| Positioning | 0.0020 in |
| Repositioning | 0.0020 in |
