Description
CNC Extender Adapter made especially for 1/2″ shank router bits.
Total Indicated Run-out (TIR) is 0.00118″ (0.03mm)
Max RPM 18,000

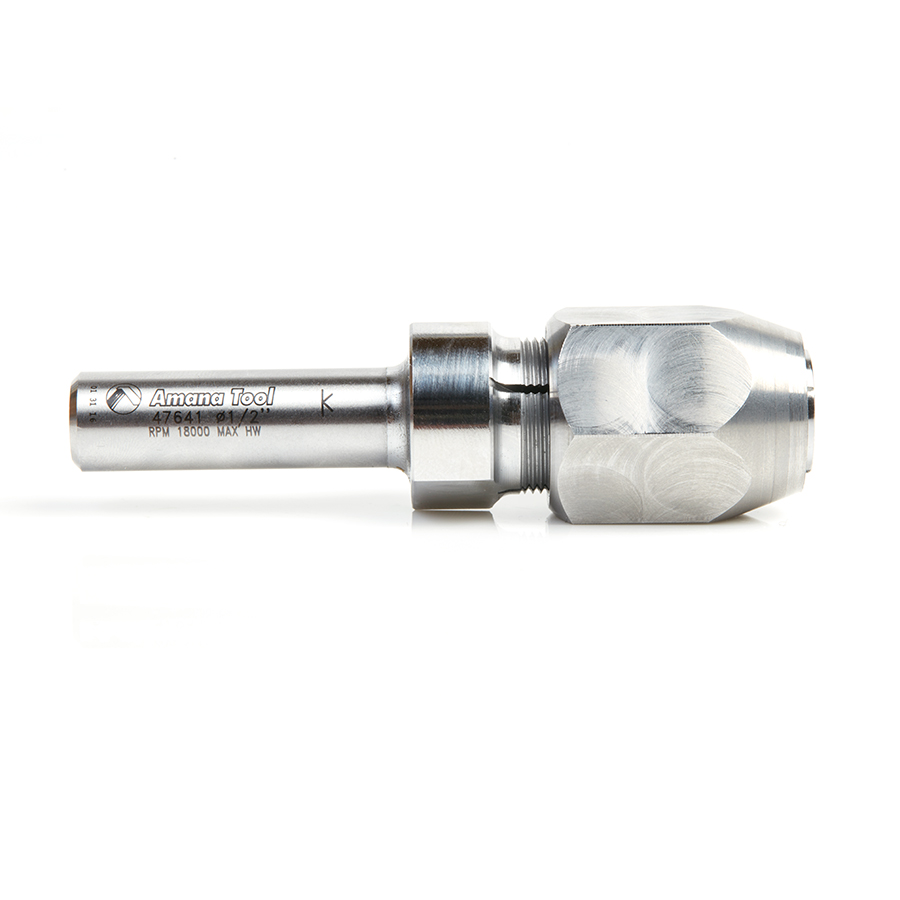

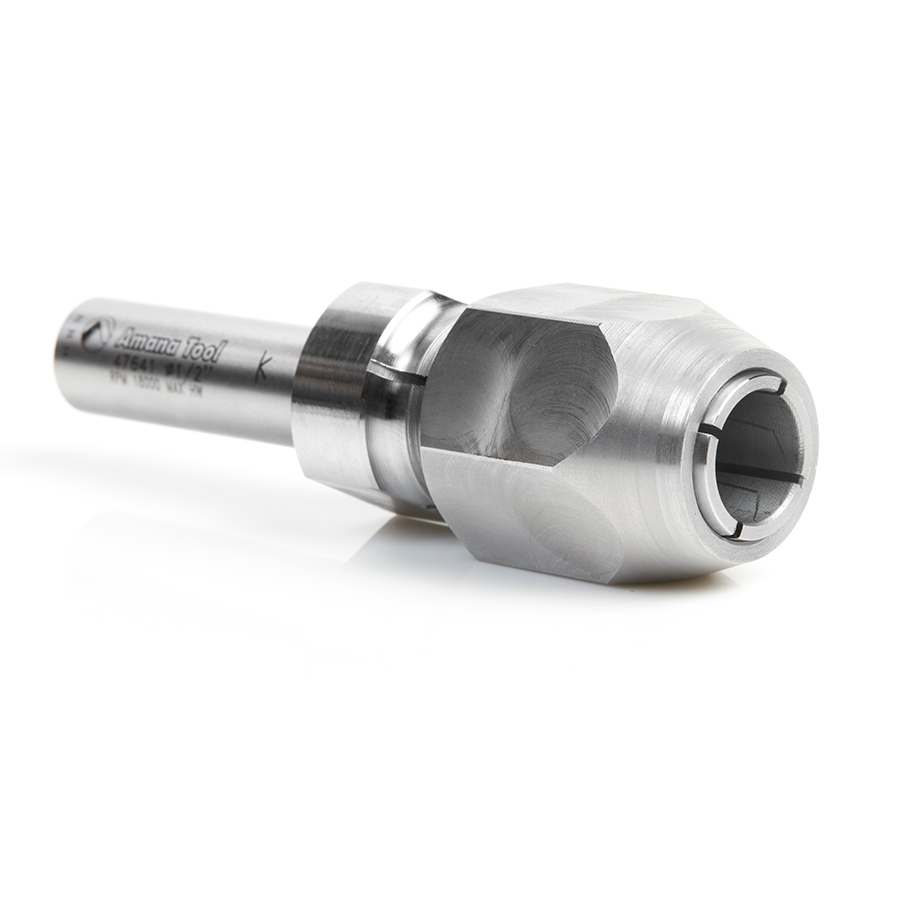

47641 1/2 Inch Shank CNC Extension Adapter for 1/2 Inch Shank Router Bits
$93.13
Usually ships on the 2nd business day from order date.
| Diameter-d | 1 |
|---|---|
| Shank-d | 1/2 |
| Overall-length-l | 3-5/8 |
| Max-rpm | 18,000 |
| L1 | 1-25/32 |
| L2 | 1-9/16 |
| L3 | 13/32 |
| D1 | 1-1/2 |

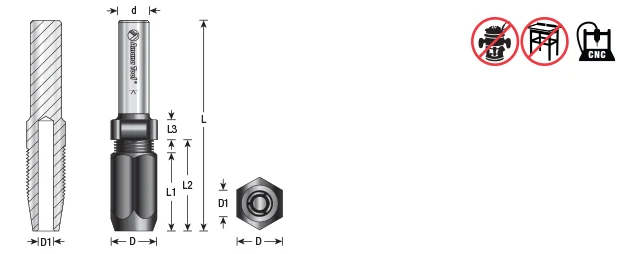

Specifications
| Diameter (D) | 1 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-5/8 |
| Max RPM | 18,000 |
| L1 | 1-25/32 |
| L2 | 1-9/16 |
| L3 | 13/32 |
| D1 | 1/2 |
