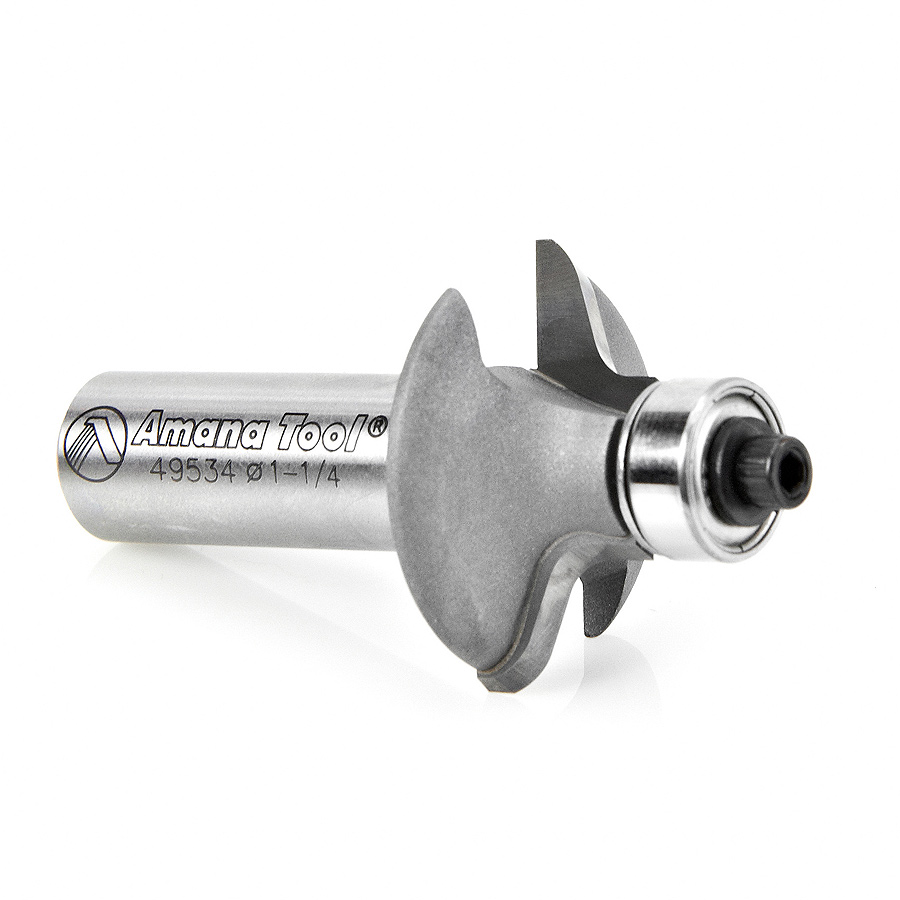

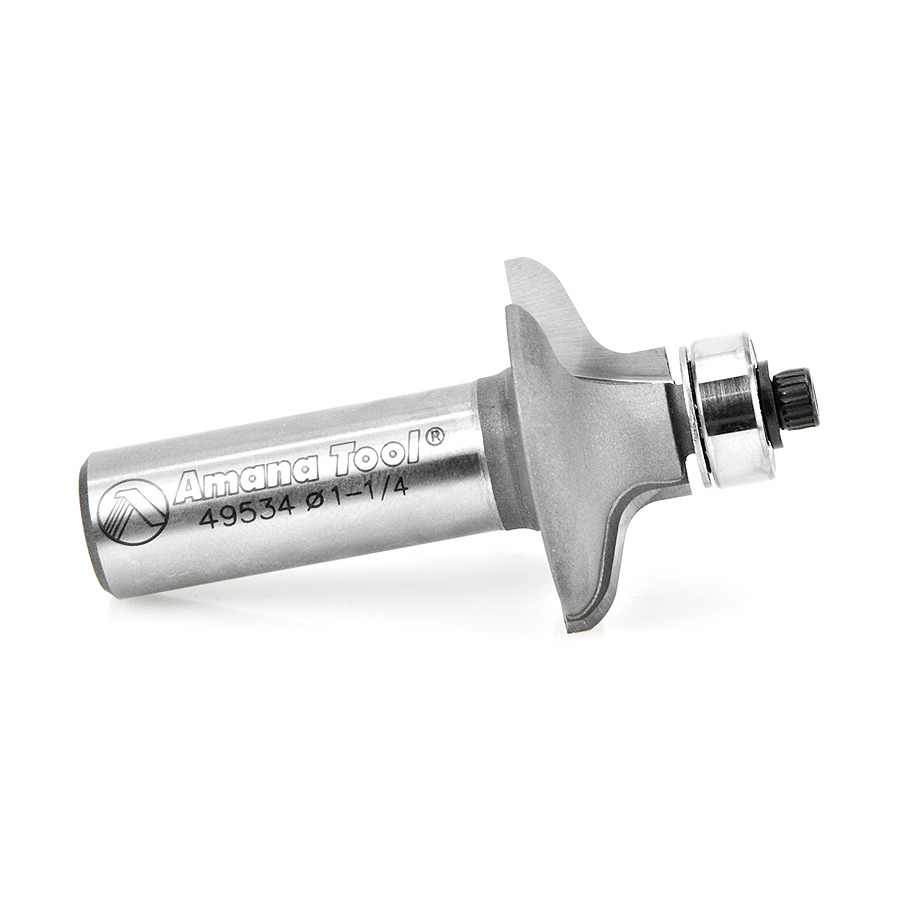

49534 Carbide Tipped Cabinet Door Edge – Front Face Edge – 5/64 Radius x 1-1/4 Dia x 7/16 x 1/2 Inch Shank
$118.41
Usually ships on the 2nd business day from order date.

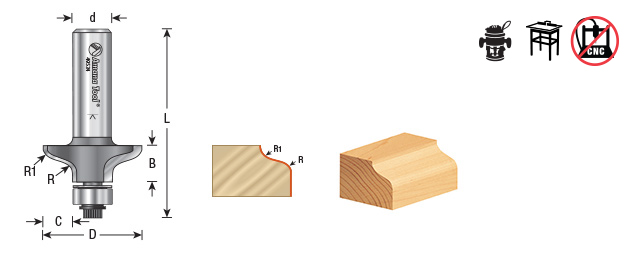

| Diameter (D) | 1-1/4 |
|---|---|
| Radius (R) | 7/32 |
| (B) Cutting Height | 7/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-25/64 |
| Replacement Bearing | 47706 |
| R1 | 9/64 |
| Flutes | 2 |
| C | 3/8 |
Description
Cuts a decorative edge on cabinet fronts. Shallow design will also work well with European hinges.
Specifications
| Diameter (D) | 1-1/4 |
| Radius (R) | 7/32 |
| Cutting Height (B) | 7/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-25/64 |
| Replacement Bearing | 47706 |
| R1 | 9/64 |
| Flutes | 2 |
| C | 3/8 |
