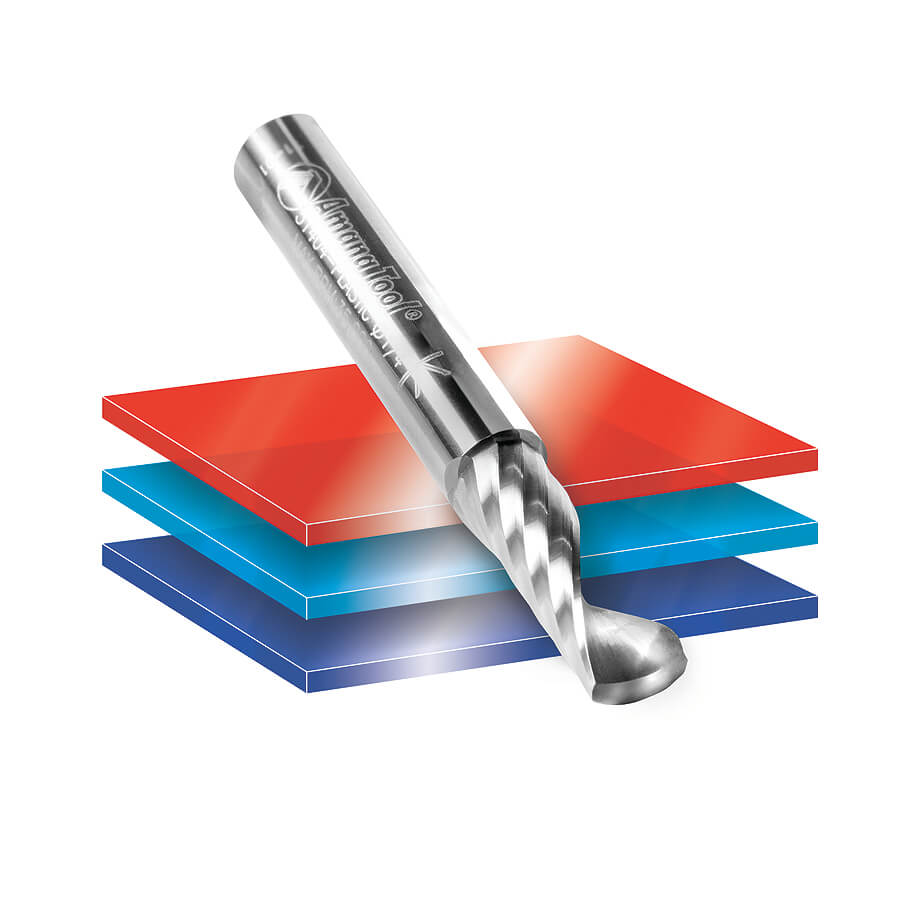

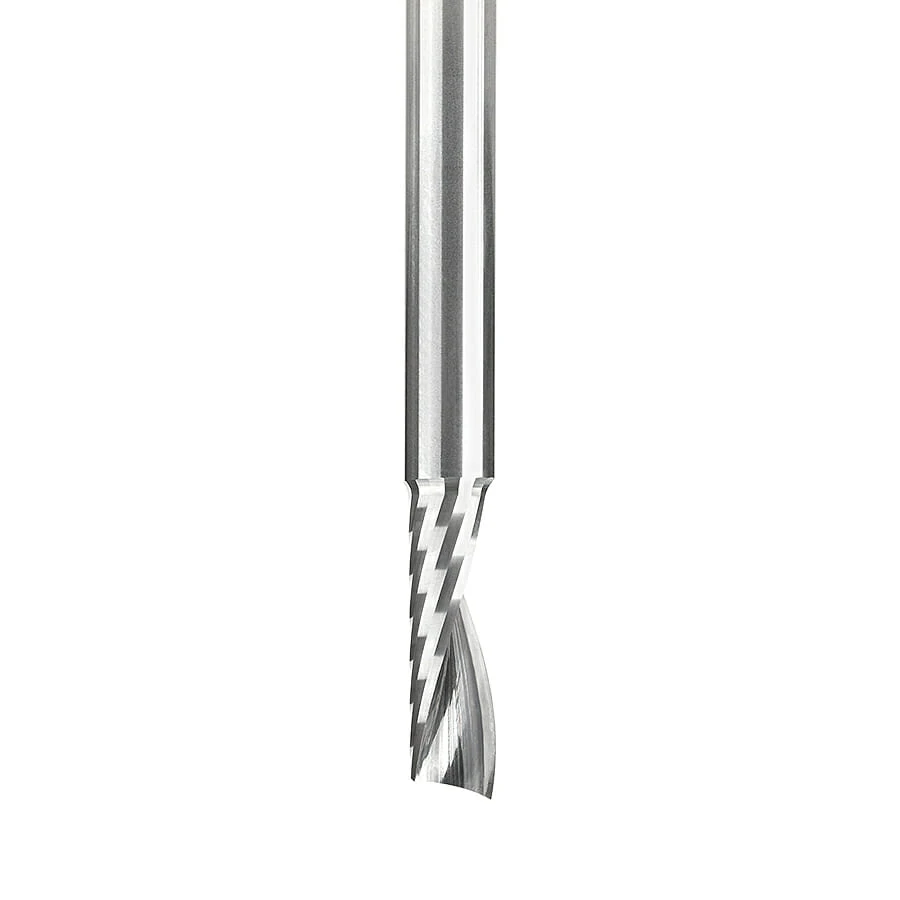

Solid Carbide CNC Spiral ‘O’ Single Flute, Plastic Cutting 1/8 Dia x 5/16 x 1/8 Shank x 2 Inch Long Up-Cut Router Bit

$39.21

Usually ships on the 2nd business day from order date.
Direction Up-Cut
D Diameter 1/8
B Cutting Height 5/16
D Shank 1/8
Overall Length L 2
Flutes 1
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

To be used only on CNC machines and routers with automatic feeding.

Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut. Excellent for cutting: Plastic/Acrylic Acetal and Nylon Acrylic Stone Acrylonitrile Butadiene Styrene (ABS) Aluminum Composite Material (ACM) Alupanel® Corian Coroplast® ** Corrugated Plastics such as Correx Boards and Polypropylene * Crosslinked Polyethylene (XPE, PEX, XLPE) Delrin Dibond® Extruded Acrylic Foam Board Fomex® Gatorfoam® *** Hard Plastic High Density Polyethylene (HDPE) High Density Urethane (HDU Board) High Impact Polystyrene (HIPS) High Impact Polystyrene (HIPS) for digital printing High Pressure Laminates (HPL) Hydroxy-Terminated Polyether (HTPE) King ColorCore® The Multi-Color Engravable Polymer Sheet. Laminate Low Density Polyethylene (LDPE) LubX® Lucite® Mechanical/Engineered Plastics Perspex® Cast Acrylic Sheet Plexiglas® Poly (methyl methacrylate) (PMMA) Polycarbonate (Lexanâ„¢) † Polyethylene Terephthalate Glycol-Modified (PETG / PET-G) Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde. Polystyrene (PS) PVC Sign Foam Sintra PVC Solid Surface StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE) Teflon® Thermoplastic Polyolefin (TPO) Trespa® Meteon® *** * Ultra High Molecular Weight Polyethylene (UHMWPE) Urethane Vinyl Flooring Wood Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

* A soft plastic cardboard made with super soft super flexible PVC. ** Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer. *** *** * Decorative high-pressure compact laminate (HPL) with an integral surface. † Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™. Benefits of Mirror-Finish:

Razor sharp cutting edge Effortless chip removal Helps prevent chip re-welding Extends tool life

Exceptional cut quality Dissipates heat well and prevents melting 35,000

Maximum RPM:  Router collet reducer  RB-102  (1/4 to 1/8) available for 1/8 shank bits.

Vectric compatible tool file for 51453 available for download,  . click here

Specifications

Direction Up-Cut
(D) Diameter 1/8
(B) Cutting Height 5/16
(d) Shank 1/8
Overall Length (L) 2
Flutes 1
