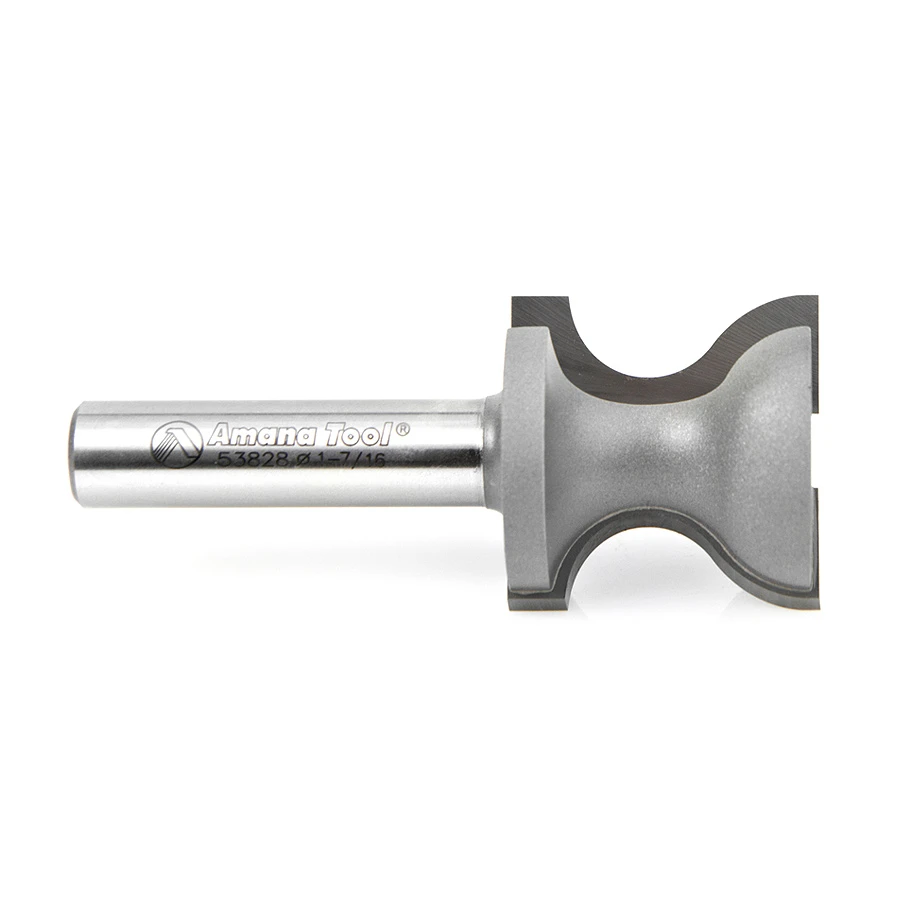

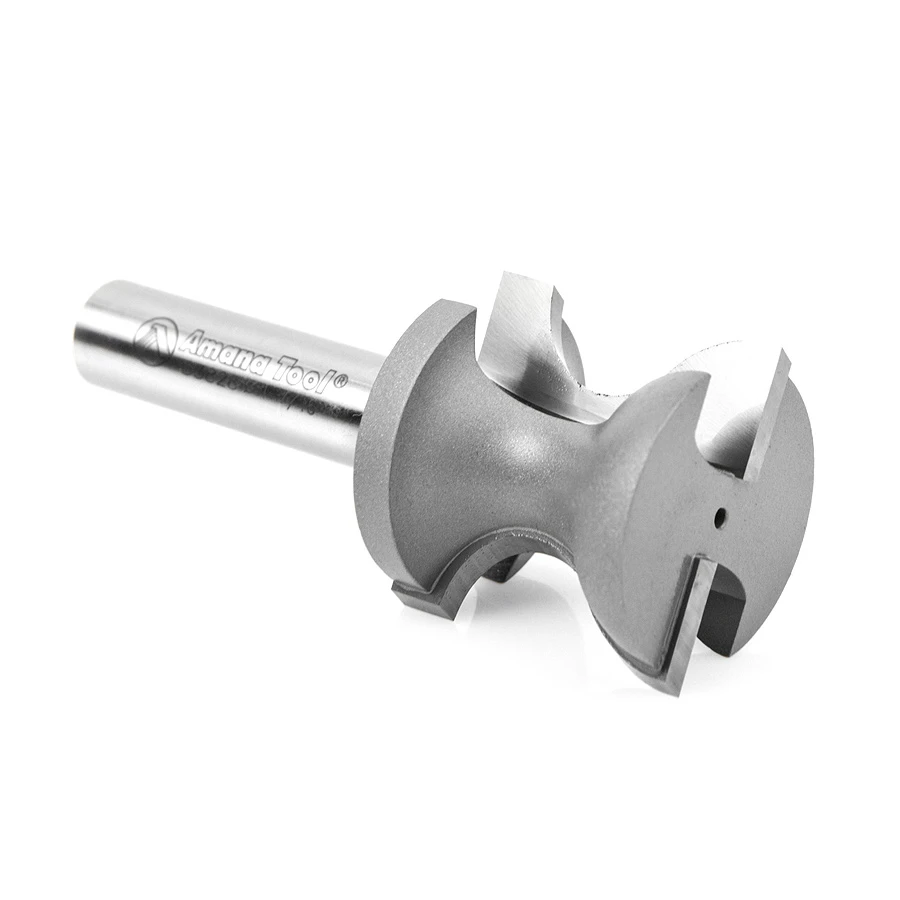

53828 Carbide Tipped Window Sill Edge 23/64 Radius x 1-7/16 Dia x 1-3/8 x 1/2 Inch Shank
$156.87
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-7/16 |
|---|---|
| D1 | 11/16 |
| Radius (R) | 23/64 |
| (B) Cutting Height | 1-3/8 |
| B1 | 1-1/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-3/8 |
| R1 | 9/16 |
| Flutes | 2 |
| C | 3/8 |
Description
These bits shape a flowing ogee edge for creating traditional window sills.
Specifications
| Diameter (D) | 1-7/16 |
| D1 | 11/16 |
| Radius (R) | 23/64 |
| Cutting Height (B) | 1-3/8 |
| B1 | 1-1/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-3/8 |
| R1 | 916 |
| Flutes | 2 |
| C | 3/8 |
