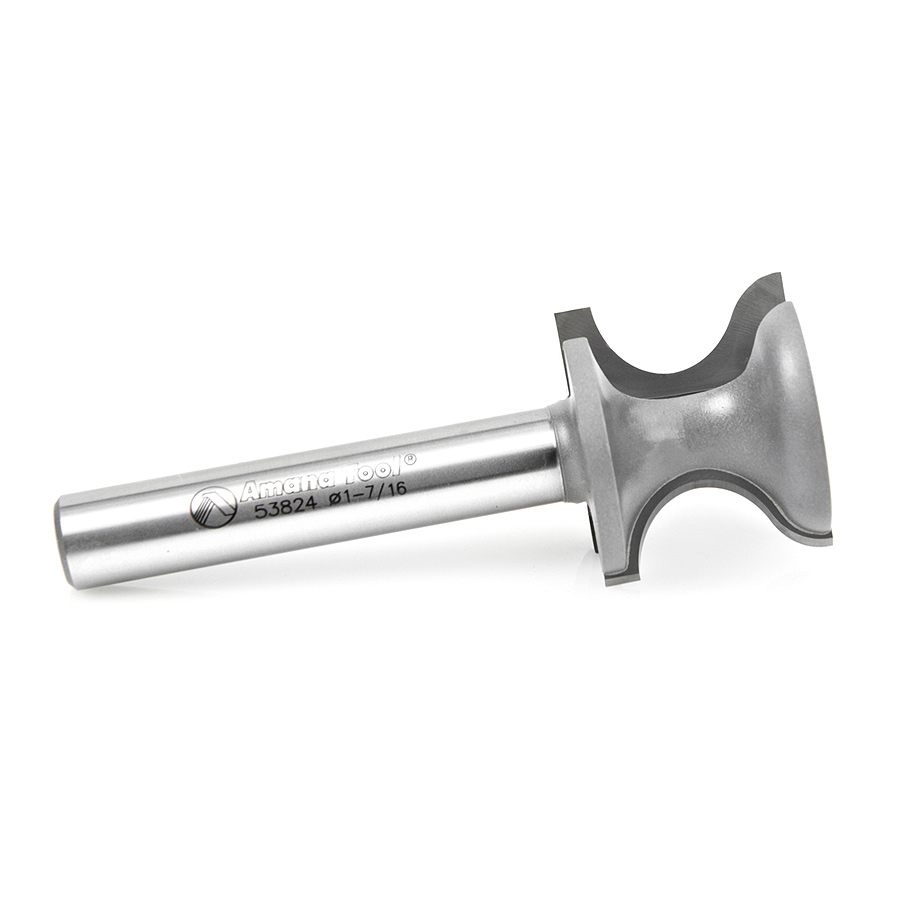

53824 Carbide Tipped Window Sill Edge 3/8 Radius x 1-7/16 Dia x 1-1/8 x 1/2 Inch Shank
$97.23
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-7/16 |
|---|---|
| D1 | 5/8 |
| Radius (R) | 3/8 |
| (B) Cutting Height | 1-1/8 |
| B1 | 1 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-7/8 |
| R1 | 5/16 |
| Flutes | 2 |
| C | 13/32 |
Description
These bits shape a flowing ogee edge for creating traditional window sills.
Specifications
| Diameter (D) | 1-7/16 |
| D1 | 5/8 |
| Radius (R) | 3/8 |
| Cutting Height (B) | 1-1/8 |
| B1 | 1 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-7/8 |
| R1 | 5/16 |
| Flutes | 2 |
| C | 13/32 |
