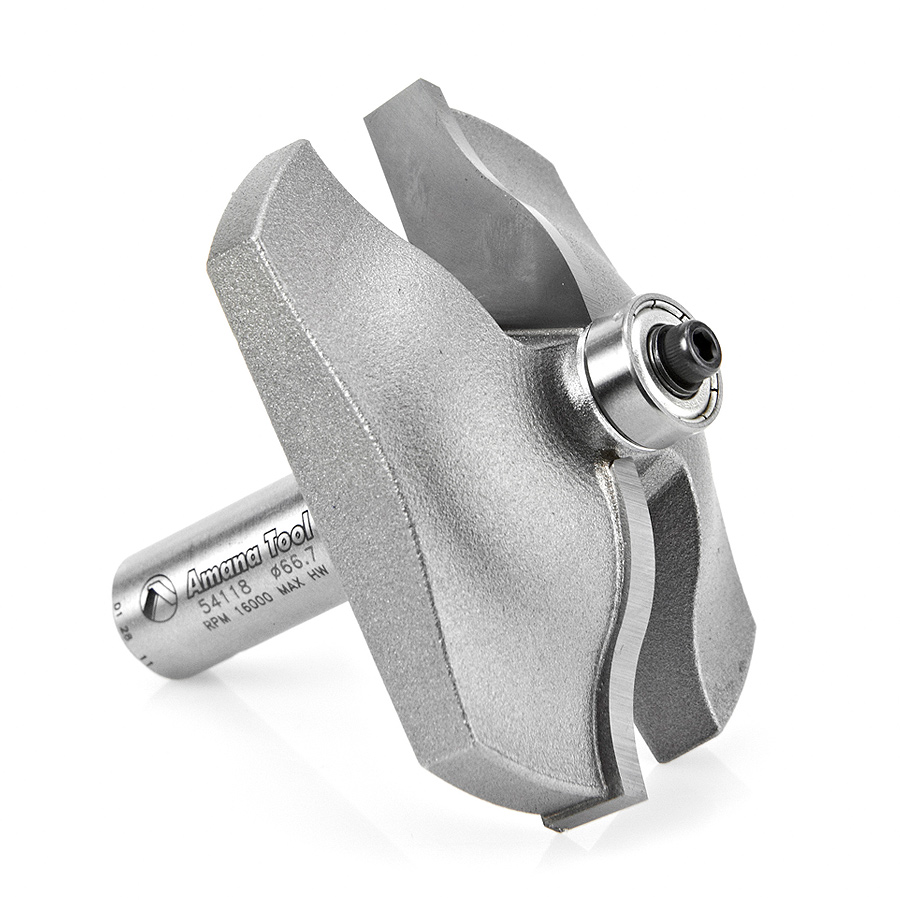

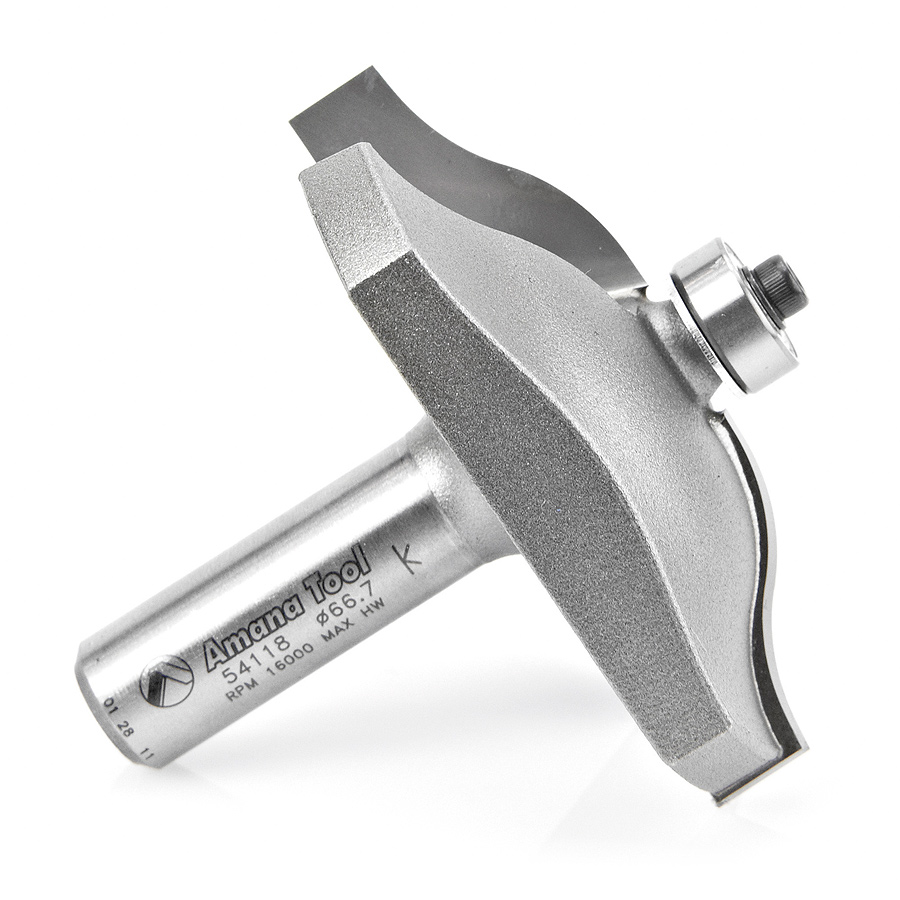

54118 Carbide Tipped Ogee Raised Panel 3/4 Radius x 2-5/8 Dia x 5/8 x 1/2 Inch Shank

$179.51

Usually ships on the 2nd business day from order date.

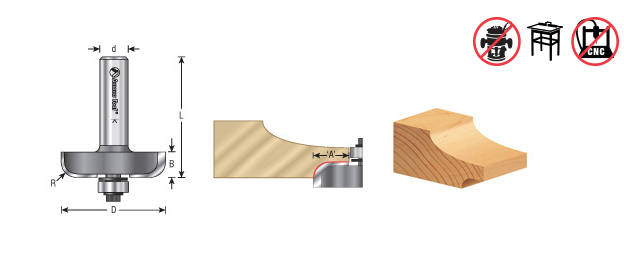

(A) Cut Depth	1-1/16
Diameter (D)	2-5/8
Radius (R)	3/4
(B) Cutting Height	5/8
B1	5/16
Shank (d)	1/2
Overall Length (L)	2-1/2
Replacement Bearing	47706
Flutes	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

54118 Carbide Tipped Ogee Raised Panel 3/4 Radius x 2-5/8 Dia x 5/8 x 1/2 Inch Shank quantity

+ Add to cart

UPC: 738685941188.0 SKU: 54118 Categories: Router Bits, Raised Panel Router Bits, Door Making Router Bits - Industrial Quality, Rattle-Free from Amana Tool

Share:

Description

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended.
