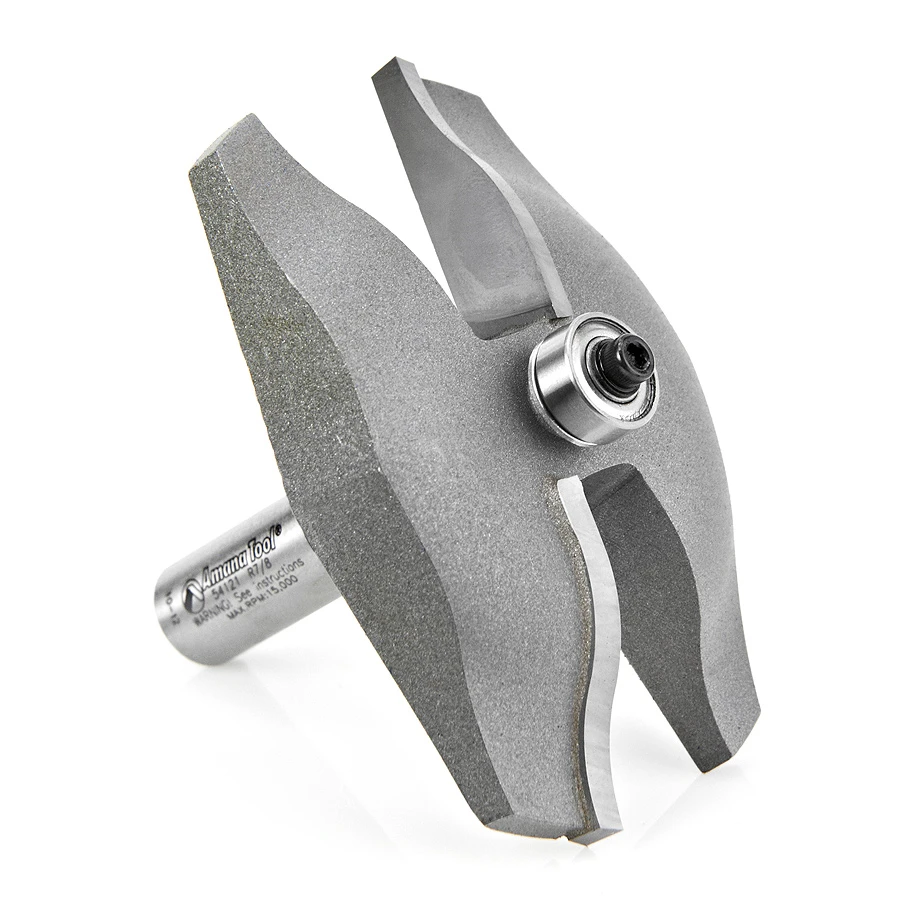

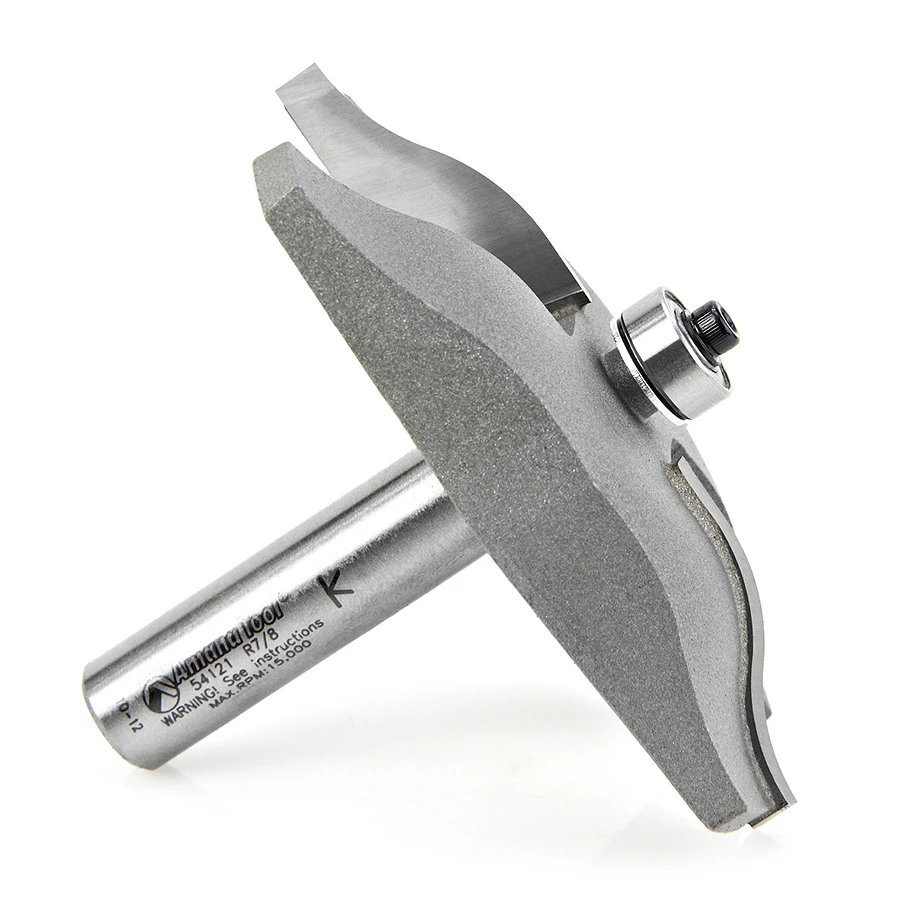

54121 Carbide Tipped Ogee Raised Panel 7/8 Radius x 3-3/8 Dia x 9/16 x 1/2 Inch Shank

$183.33

Usually ships on the 2nd business day from order date.
(A) Cut Depth 1-7/16
Diameter (D) 3-3/8
Radius (R) 7/8
(B) Cutting Height 9/16
B1 3/8
Shank (d) 1/2
Overall Length (L) 2-1/2
Replacement Bearing 47706
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Maximum RPM 14,000.

Specifications

Cut Depth (A) 1-7/16
Diameter (D) 3-3/8
Radius (R) 7/8
Cutting Height (B) 9/16
B1 3/8
Shank (d) 1/2
Overall Length (L) 2-1/2
Replacement Bearing 47706
Flutes 2
