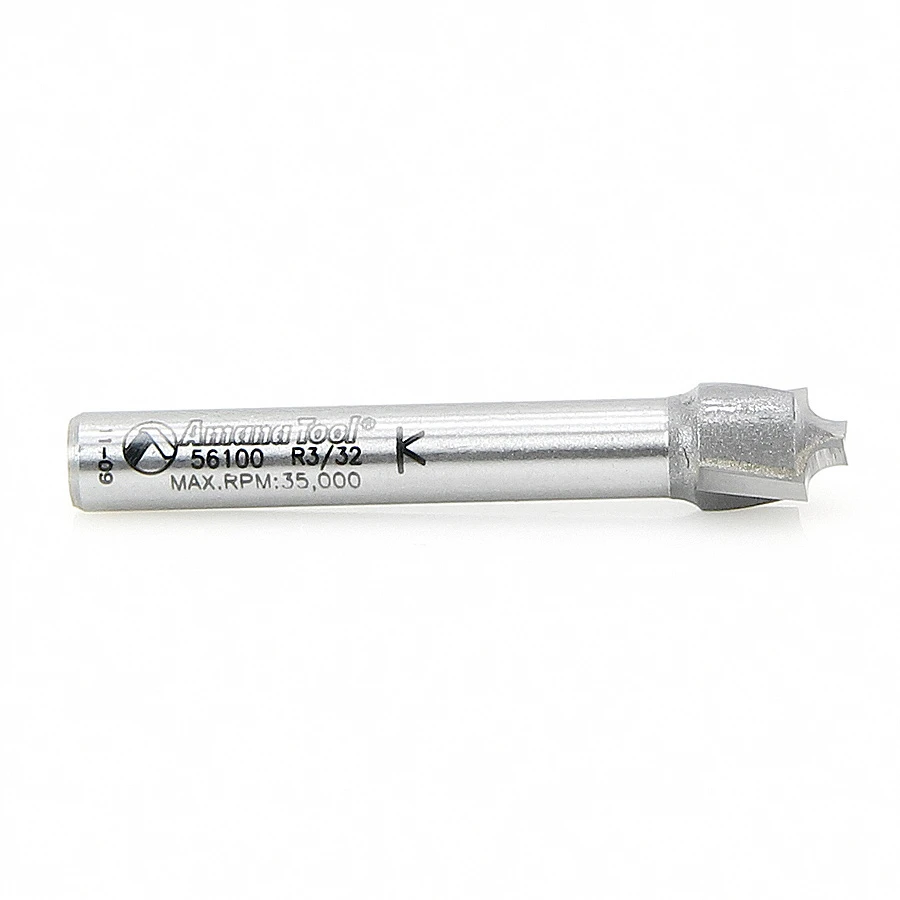

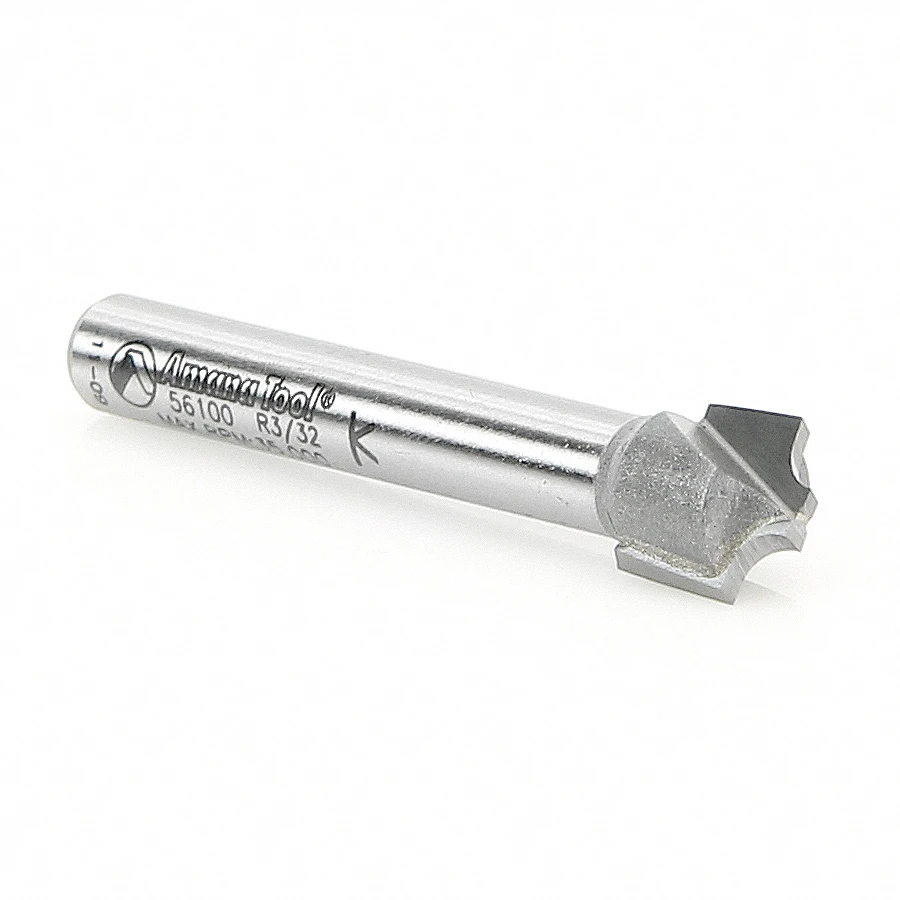

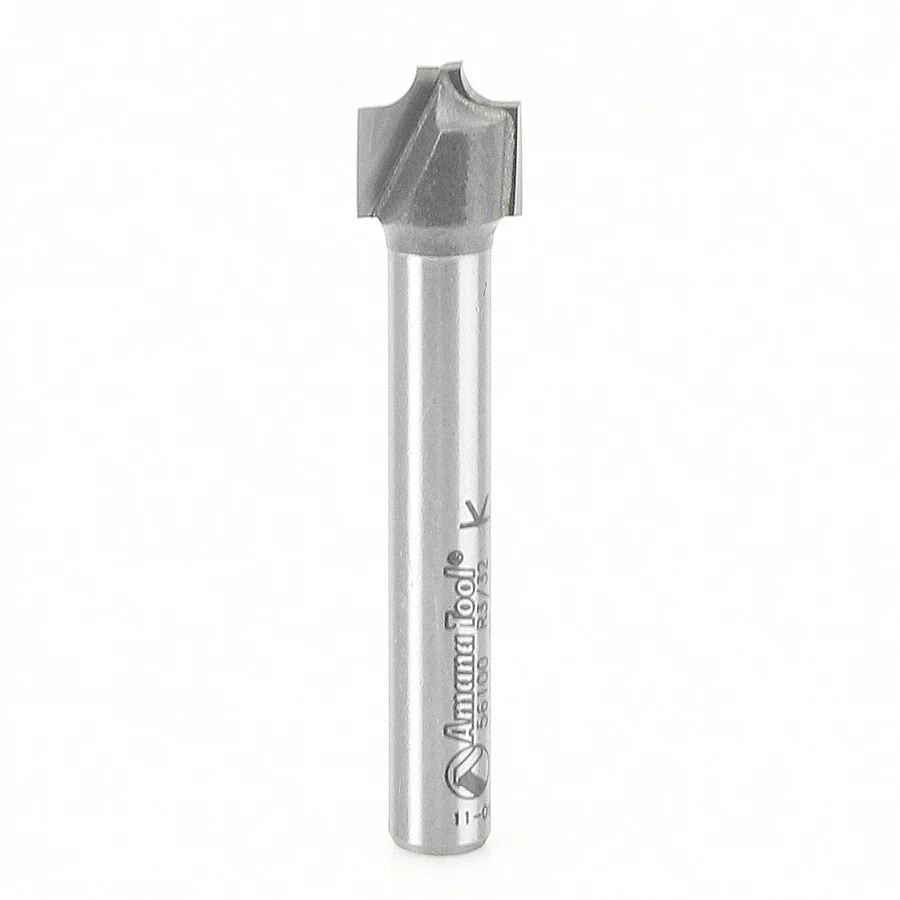

56100 Carbide Tipped Plunge Beading 3/32 Radius x 3/8 Dia x 5/16 x 1/4 Inch Shank
$52.00
Usually ships on the 2nd business day from order date.
| Diameter (D) | 25/64 |
|---|---|
| D1 | 1/8 |
| Radius (R) | 3/32 |
| (B) Cutting Height | 23/64 |
| B1 | 1/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-29/32 |
| Flutes | 2 |
Description
Quarter-round profiles are formed by this bit as it grooves, one on each side of a flat. Used with a fence or edge guide, this beading bit can be used as an edge former.
Maximum RPM 14,000.
Use in a table-mounted router. Not for use in a handheld router!
Specifications
| Diameter (D) | 25/64 |
| D1 | 1/8 |
| Radius (R) | 3/32 |
| Cutting Height (B) | 23/64 |
| B1 | 1/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-29/32 |
| Flutes | 2 |
