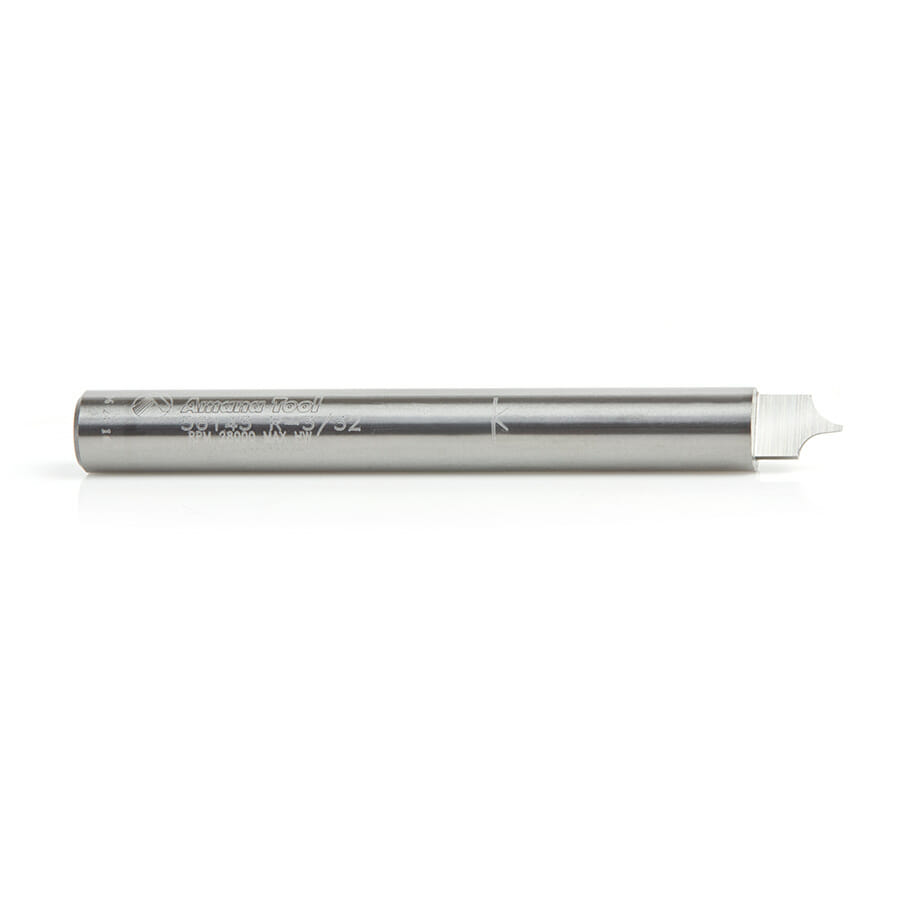

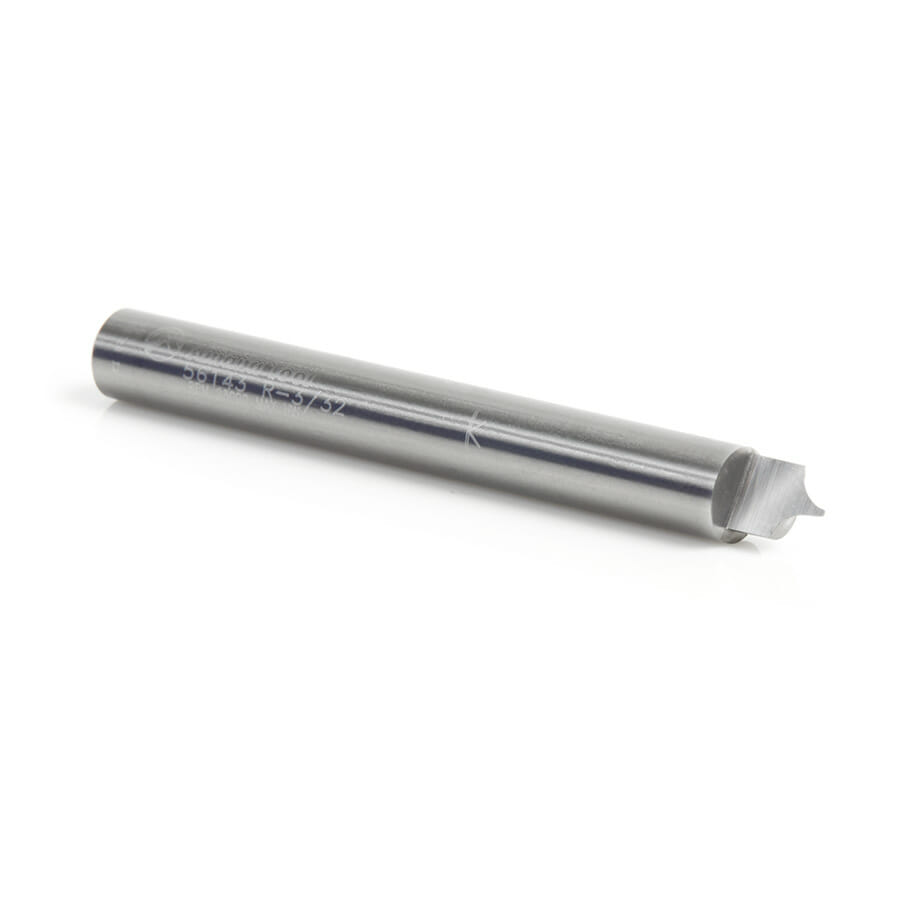

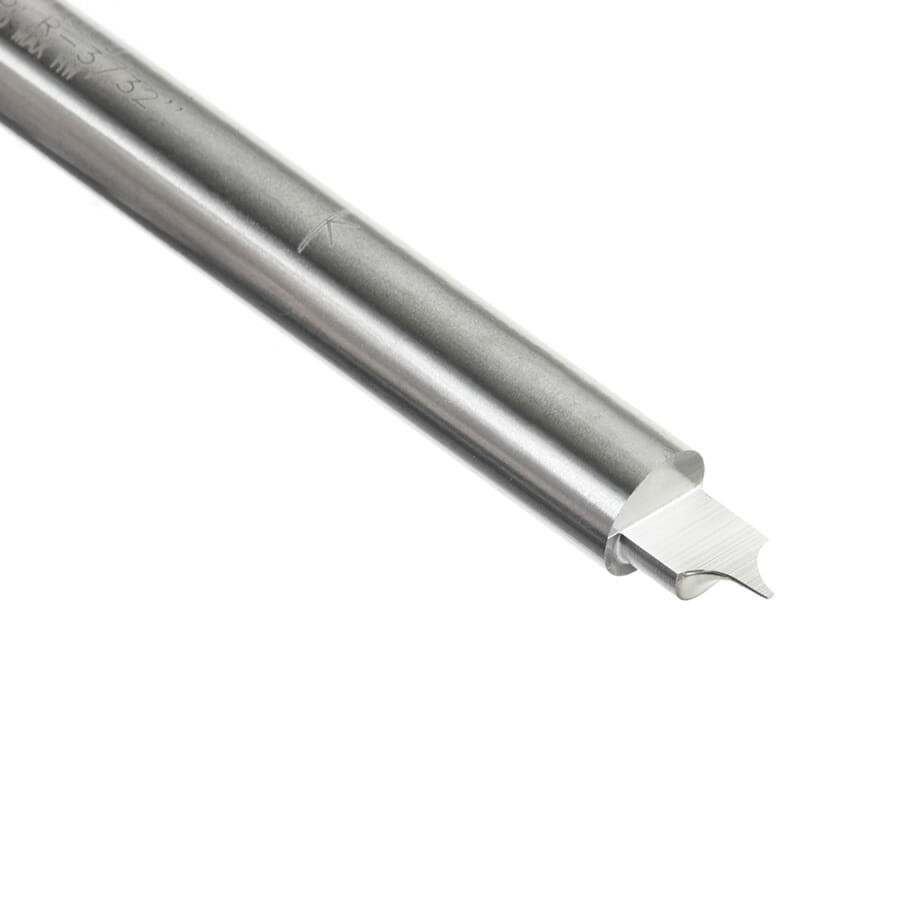

Solid Carbide Point Cutting Roundover 3/32 Radius x 13/64 Dia x 1/4 x 1/4 Shank Router Bit
$66.07
Usually ships on the 2nd business day from order date.
| Diameter D | 13/64 |
|---|---|
| Radius R | 3/32 |
| Cutting Height B | 1/4 |
| B1 | 3/32 |
| Shank D | 1/4 |
| Overall Length L | 2-1/4 |
| Type | Solid Carbide |
| Flutes | 1 |
Description
For lettering, engraving, signmaking, fluting and decorative trimming. Due to very fine plunge point, bit is not guaranteed against breakage. Note:
Vectric compatible tool file for 56143 available for download, . click here
Specifications
| Diameter (D) | 13/64 |
| Radius (R) | 3/32 |
| Cutting Height (B) | 1/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/4 |
| B1 | 3/32 |
| Type | Solid Carbide |
| Flutes | 1 |
| D1 | .02" |
