61307 Insert Carbide Steel Adjustable Chamfer -90 to +90 x 150mm (5-7/8) Dia x 50mm (2) x 1-1/4 Bore

$588.92

Usually ships on the 2nd business day from order date.

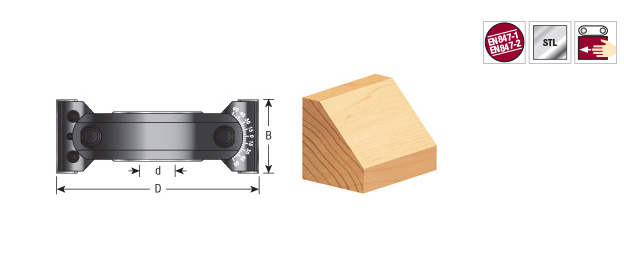

Diameter (D)	150mm (5-7/8)
(d) Bore	1-1/4
(a°) Angle	-/+90°
(B) Cutting Height	50mm (2)
RPM	5,100-7,400
Cutter Body	Steel
Replacement Knives	ICK-50

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

61307 Insert Carbide Steel Adjustable Chamfer -90 to +90 x 150mm (5-7/8) Dia x 50mm (2) x 1-1/4 Bore quantity

+ Add to cart

UPC: 738685613078 SKU: 61307 Categories: Insert Shaper Cutters - Industrial Insert Carbide Shaper Cutters by Amana Tool, Shaper Cutters, Insert Adjustable Chamfer Shaper Cutters, Profiling Insert Shaper Cutters

Share:

Description

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Aluminum.
