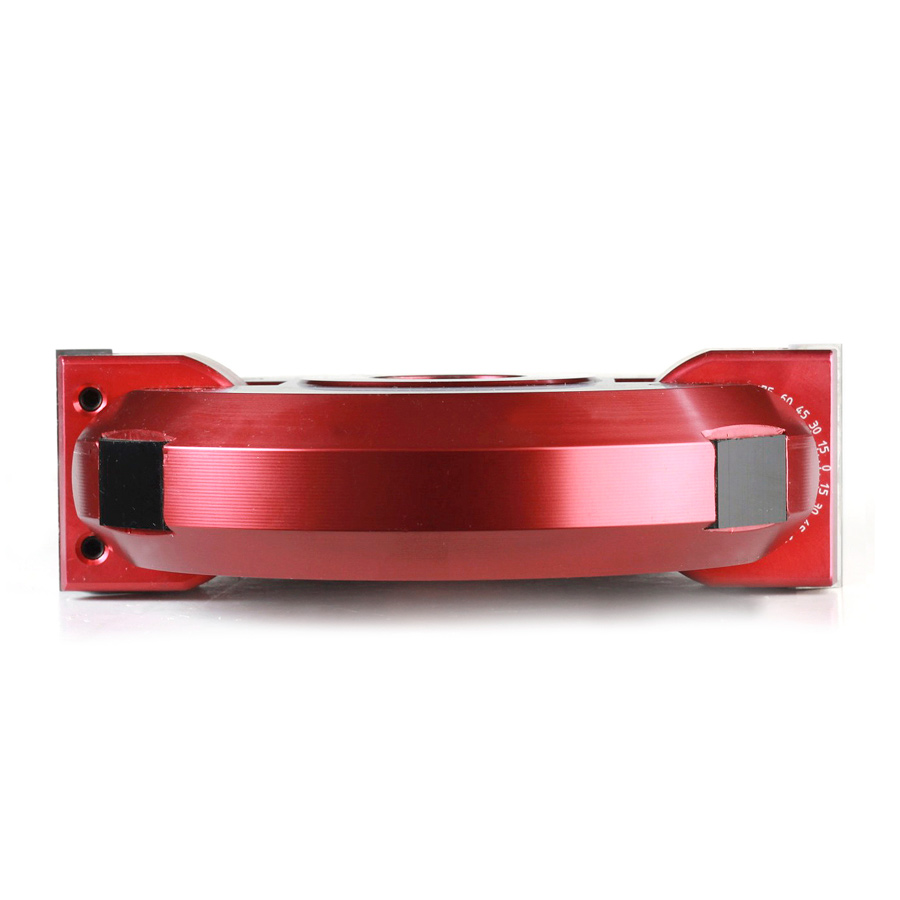

61310 Insert Carbide Aluminum Adjustable Chamfer -90 to +90 x 160mm (6-5/16) Dia x 50mm (2) x 1-1/4 Bore

$657.41

Usually ships on the 2nd business day from order date.

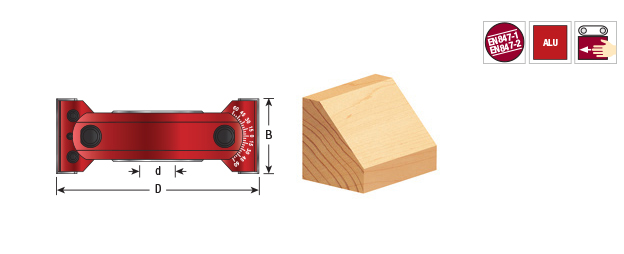

Diameter (D) 160mm (6-5/16)
(d) Bore 1-1/4
(a°) Angle -/+90°
(B) Cutting Height 50mm (2)
RPM 4,800-6,000
Cutter Body Aluminum
Replacement Knives ICK-50
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Aluminum.

Specifications

(D) Diameter 160mm (6-5/16)
(d) Bore 1-1/4
(a°) Angle -/+90°
(B) Cutting Height 50mm (2)
RPM 4,800-6,000
Cutter Body Aluminum
Replacement Knives ICK-50
