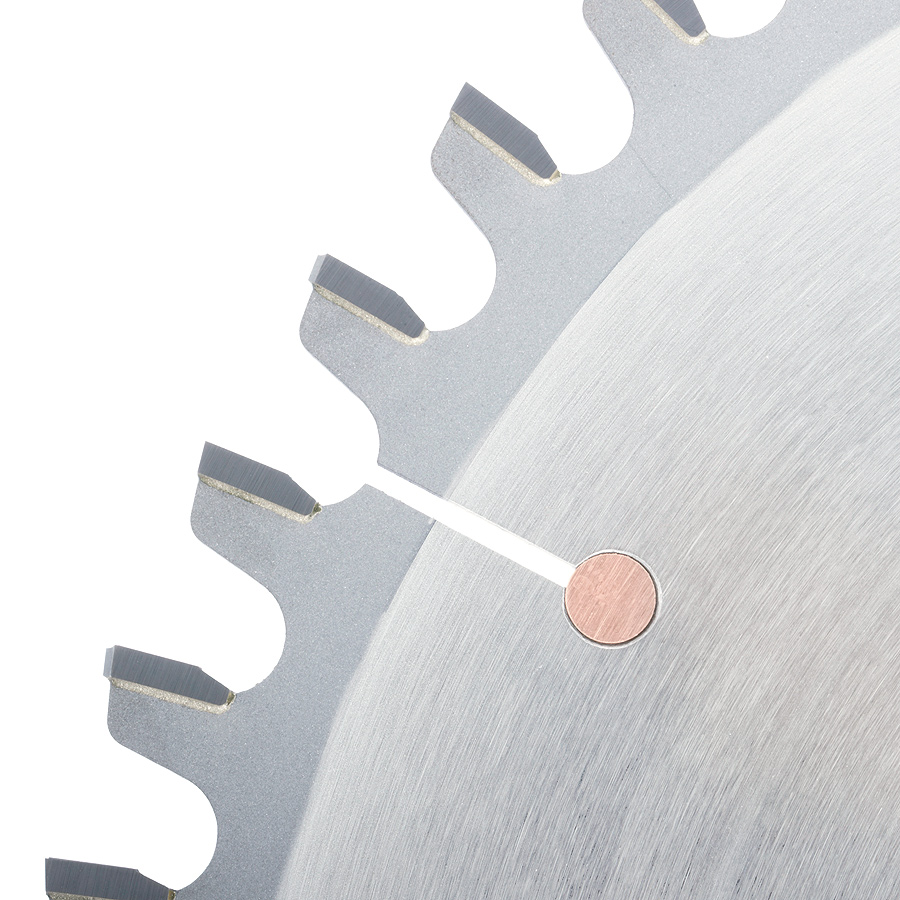

HG10480 Carbide Tipped Hollow Ground 10 Inch Dia x 48T HG, -6 Deg, 5/8 Bore

$271.80

Usually ships on the 2nd business day from order date.
Diameter (D) 10 (253mm)
Teeth 48
(d) Bore 5/8
Tooth Grind HG
Hook Angle -6°
Kerf (B) .126 (3.2mm)
Plate (c) .087 (2.2mm)
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685104804.0 SKU: HG10480 Categories: , ,

Description

This specially designed saw blade makes exceptionally smooth cuts in melamine and other coated boards, without the need for scoring. The unique hollow grind, which pairs a triple-chip tooth with a raker tooth that’s ground to a concave profile, produces crisp, clean cuts. The grind is commonly used in vertical panel saws, such as those made by Striebig® and Holz-Her®. The negative hook angle is particularly suitable for vertical panel saws.

Specifications

(D) Diameter 10 (253mm)
Teeth 48
(d) Bore 5/8
Tooth Grind HG
Hook Angle -6°
Kerf (B) .126 (3.2mm)
Plate (C) .087 (2.2mm)
