HG12600-30 Carbide Tipped Hollow Ground 12 Inch Dia x 60T HG, -6 Deg, 30mm Bore

$280.46

Diameter (D) 12 (303mm)
Teeth 60
(d) Bore 30mm
Tooth Grind HG
Hook Angle -6°
Kerf (B) .126 (3.2mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Machine Holz-Her
Plate (c) .087 (2.2mm)
SKU: #HG12600-30 Categories: , ,

Description

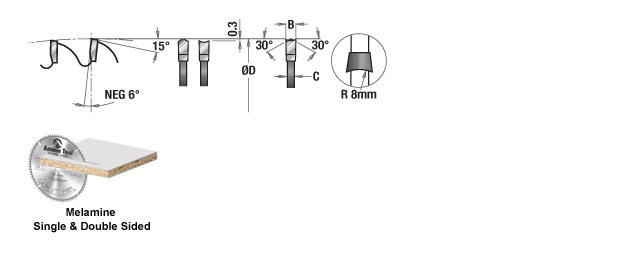

This specially designed saw blade makes exceptionally smooth cuts in melamine and other coated boards, without the need for scoring. The unique hollow grind, which pairs a triple-chip tooth with a raker tooth that’s ground to a concave profile, produces crisp, clean cuts. The grind is commonly used in vertical panel saws, such as those made by Striebig® and Holz-Her®. The negative hook angle is particularly suitable for vertical panel saws.

Specifications

(D) Diameter 12 (303mm)
Teeth 60
(d) Bore 30mm
Tooth Grind HG
Hook Angle -6°
Kerf (B) .126 (3.2mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Machine Holz-Her
Plate (C) .087 (2.2mm)
