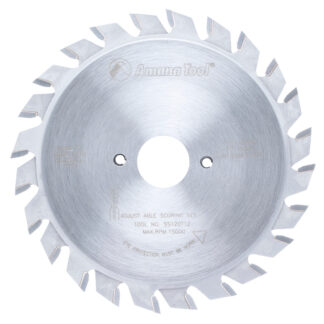

SS120T14 Carbide Tipped Adjustable Type Scoring 120mm Dia x 24T ATB, 12 Deg, 22mm Bore, Scoring Set
$162.65
Usually ships on the 2nd business day from order date.
| Diameter (D) | 120 |
|---|---|
| Teeth | 12 x 2 |
| (d) Bore | 22mm |
| Tooth Grind | ATB |
| Hook Angle | 12° |
| Kerf (B) | .110 - .142 (2.8 - 3.6mm) |
| Machine | Altendorf, Martin, Mrozek |
| Plate (c) | .078(x2) (2.0(x2)mm) |
Description
Used on panel saws and sliding table saws with separate scoring units for chip-free cuts on both sides of the material. Adjustable scoring sets consist of two 12-tooth saw blades with shims to adjust the kerf width (2.8mm to 3.6mm). Used in combination with our industrial saw blades ‘6’ series only. (Example: #614721, #616961, etc.).
Note: Due to many different scoring machine sizes (particularly arbor sizes), it is advisable to measure both the scoring and main blades that are presently on your machine (diameter, bore, kerf, etc.).
Specifications
| (D) Diameter | 120 |
| Teeth | 12 x 2 |
| (d) Bore | 22mm |
| Tooth Grind | ATB |
| Hook Angle | 12° |
| Kerf (B) | .110 - .142 (2.8 - 3.6mm) |
| Altendorf, Martin, Mrozek | |
| Plate (C) | .078(x2) (2.0(x2)mm) |
