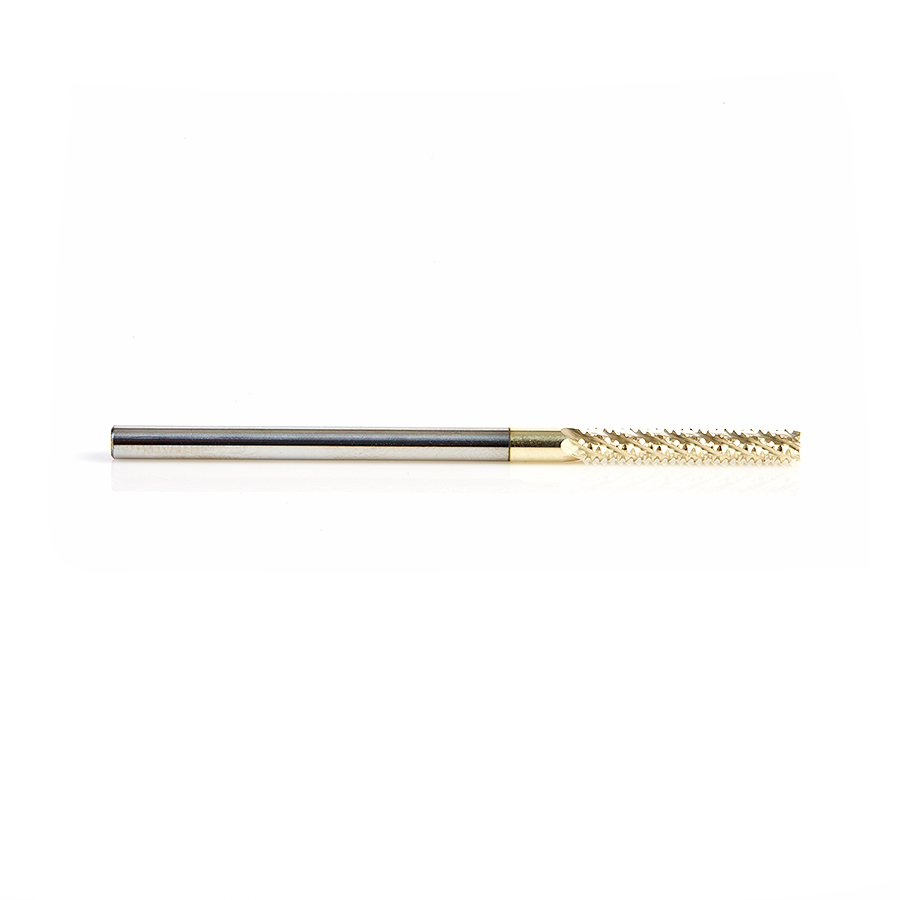

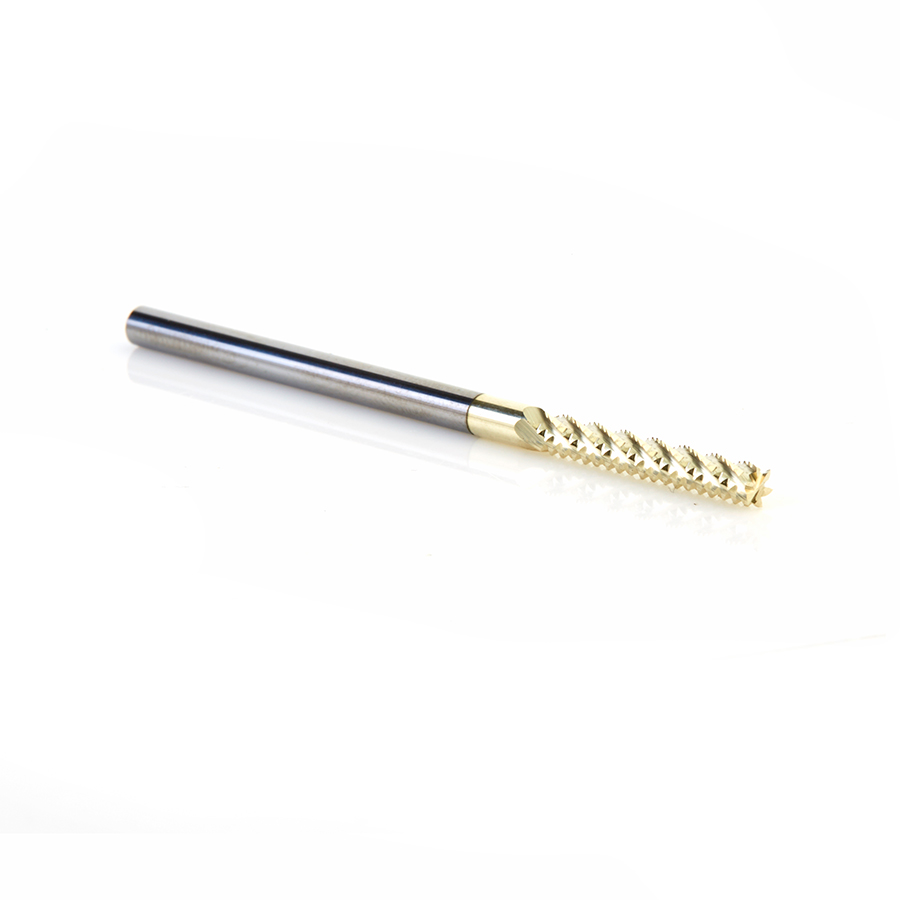

40304 CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/8 Dia x 13/16 x 1/8 Shank x 2-1/2 Inch Long x 6-Flute
$70.62
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1/8 |
|---|---|
| (B) Cutting Height | 13/16 |
| Shank (d) | 1/8 |
| Overall Length (L) | 2-1/2 |
| Max Rpm | 25,000 |
| Flutes | 6 |
Description
Designed to cut a large variety of honeycomb materials, hogger geometry is excellent for shredding and chip evacuation while maintaining a smooth surface.

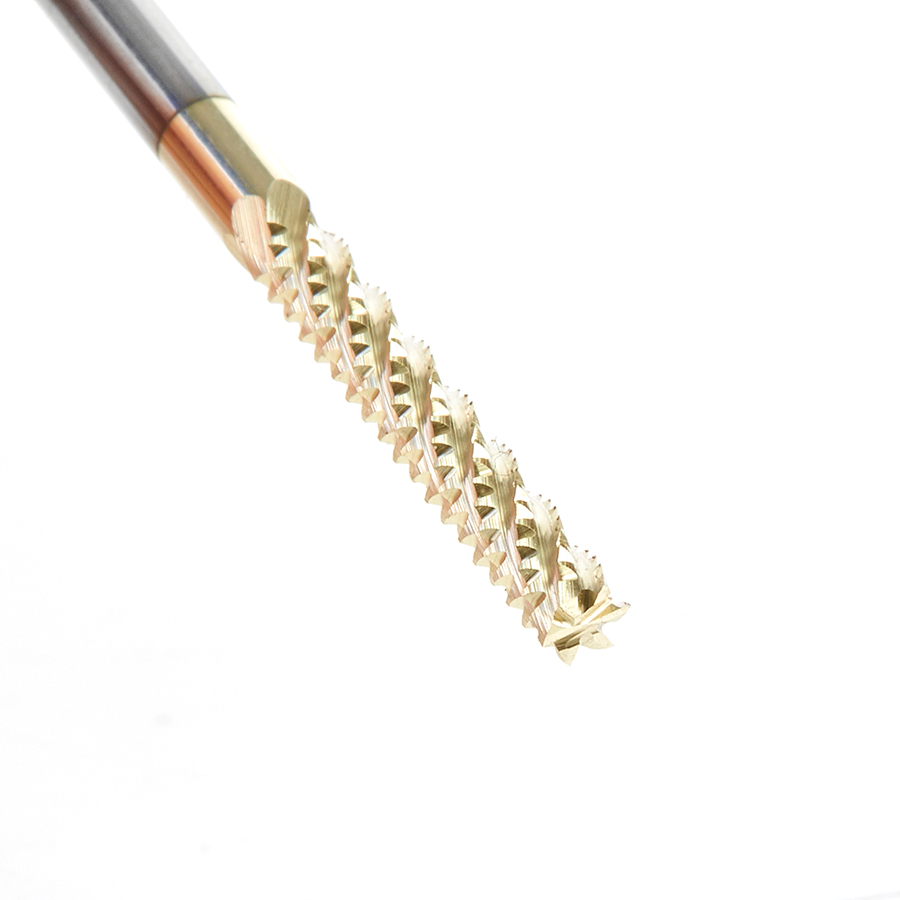

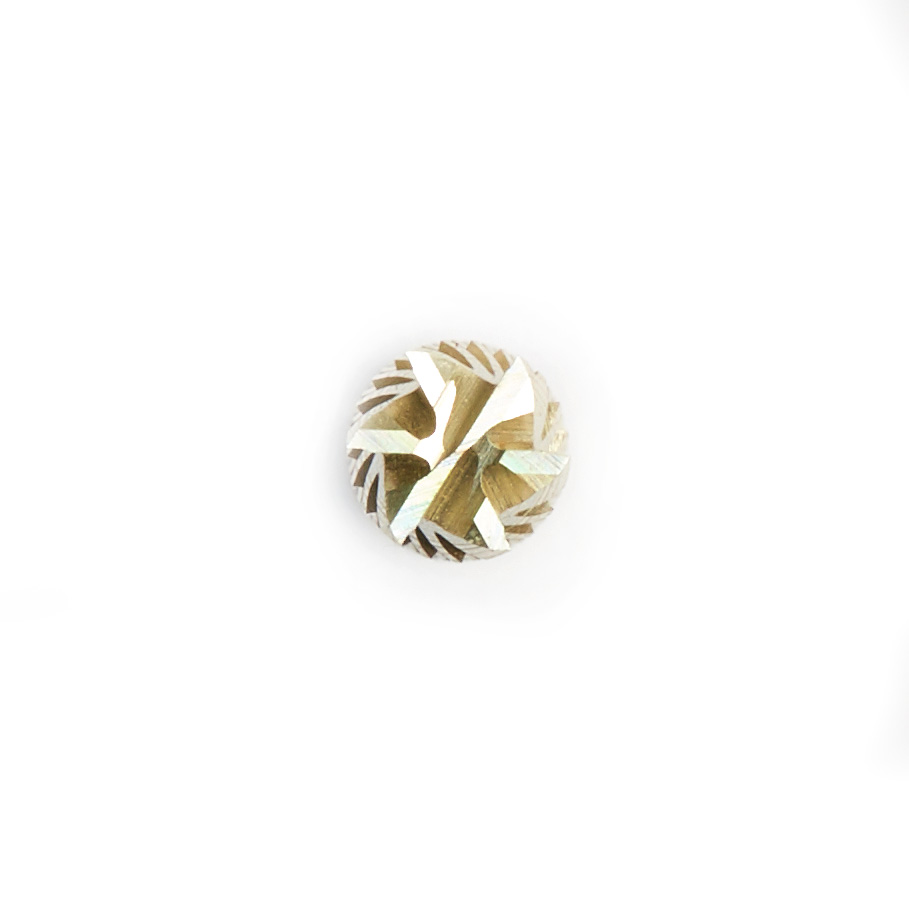

Amana Tool’s “hogger” style routers for honeycomb composites incorporate a precision-ground “knuckle” profile, allowing a freer-cutting action that reduces power requirements and less sidewall pressure in low output spindles while giving impressive gains in feed-rates. ZrN coating greatly enhances durability in highly abrasive composites.
Excellent for cutting:
- Honeycomb
- Composite Materials
- Acrylonitrile-Butadiene-Styrene (ABS)
- Lexan™
Benefits of ZrN Coating:
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
- High resistance to wear
- Extended tool life
- Less friction & heat buildup
- High resistance to wear
Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.
Specifications
| Diameter (D) | 1/8 |
| (B) Cutting Height | 13/16 |
| Shank (d) | 1/8 |
| Overall Length (L) | 2-1/2 |
| Max RPM | 25,000 |
| Flutes | 6 |
