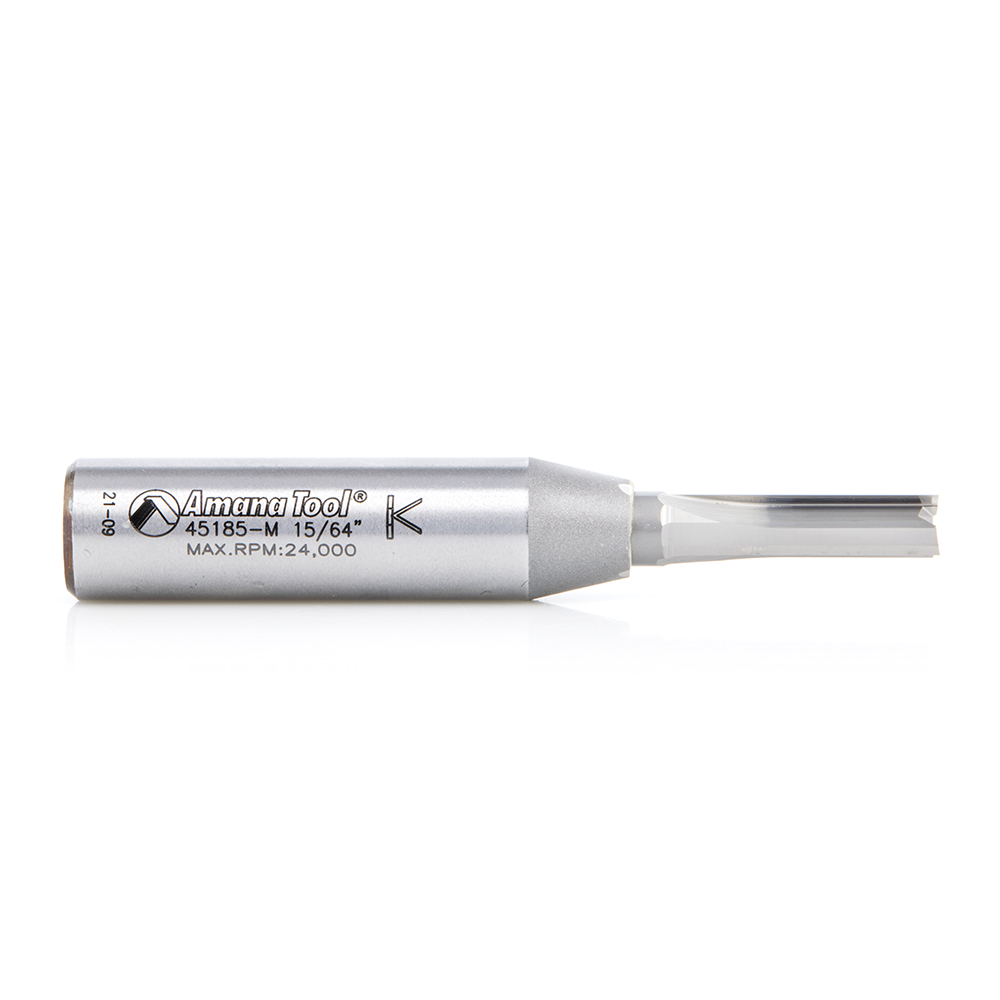

45185-M CNC In-Presta™ 3 Flute Solid Carbide Cutting Edge Straight Plunge High Production 6mm Dia x 21mm x 12mm Shank

$62.79

Diameter (D) 6mm
Cutting Height (B) 21mm
Shank (d) 12mm
Overall Length (L) 77mm
Flutes 3

Description

Up to 800 inches per minute!*

For cutting 3/4″ material thickness in one pass

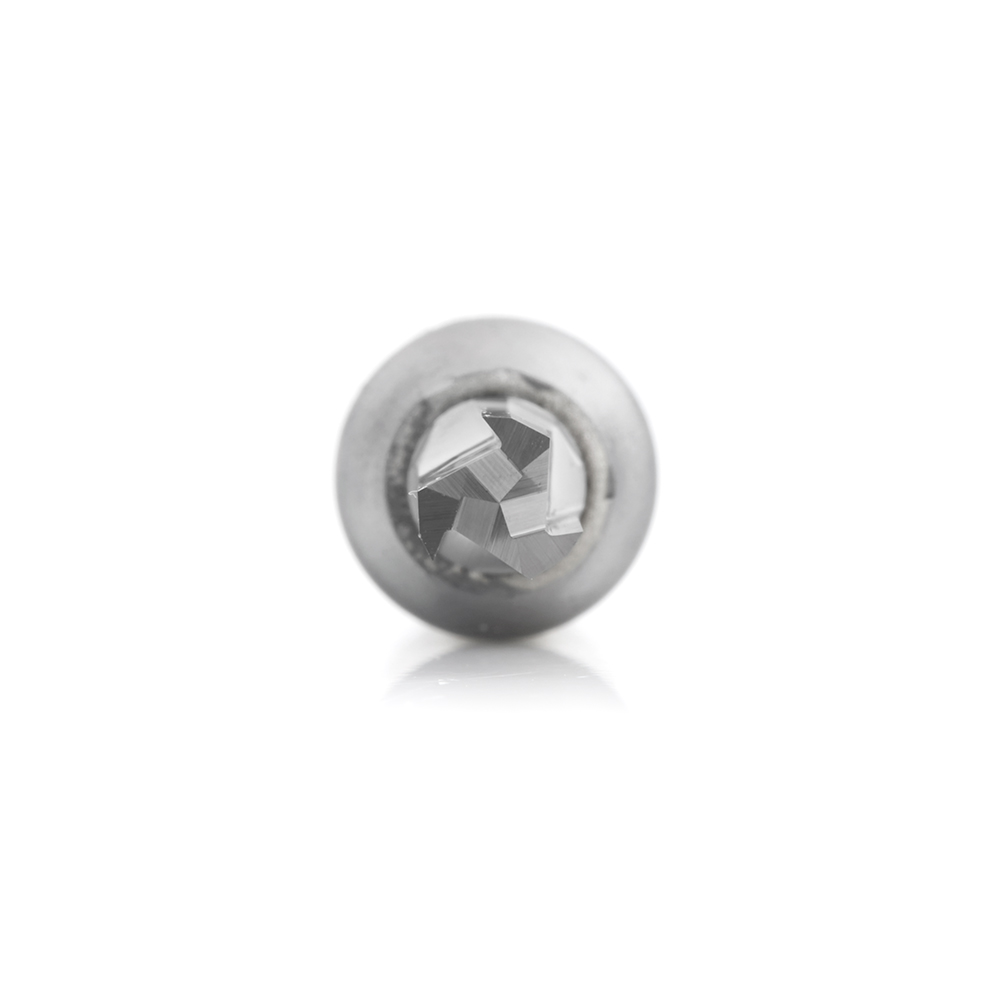

3 Flute for improved surface finish

Only 6mm diameter equals minimal material waste

Use a three-flute bit where fine finish is paramount. Three flutes balance the bit, eliminating vibration that degrades the cut finish. Three cuts per revolution yield a smooth surface and increased feed rates. 45185-M features a solid carbide cutting edge.

  • Excellent for nesting and grooving at an extremely fast feed rate which increases cost savings
  • 6mm cutting diameter CNC nesting router bit with solid carbide cutting edges brazed into steel 12mm shank
  • The unique design contributes to superb performance and excellent cutting results
  • Designed primarily for high speed CNC production
  • Long lasting, fine micrograin extra hard carbide resulting in long tool life before re-sharpening

Excellent for Cutting:

  • Laminated Particle Board, MDF & Melamine: Feed rate up to 800 IPM** at 18,000 RPM***
  • Plywood: Feed rate up to 500 IPM** at 18,000 RPM***

*Up to 800 IPM feed rate at 18,000 RPM cutting laminated particle board. Rate may change depending on material and CNC machine type.

**IPM: Inches Per Minute

***RPM: Revolutions Per Minute

Specifications

Diameter (D) 6mm
Cutting Height (B) 21mm
Shank (d) 12mm
Overall Length (L) 77mm
Flutes 3
