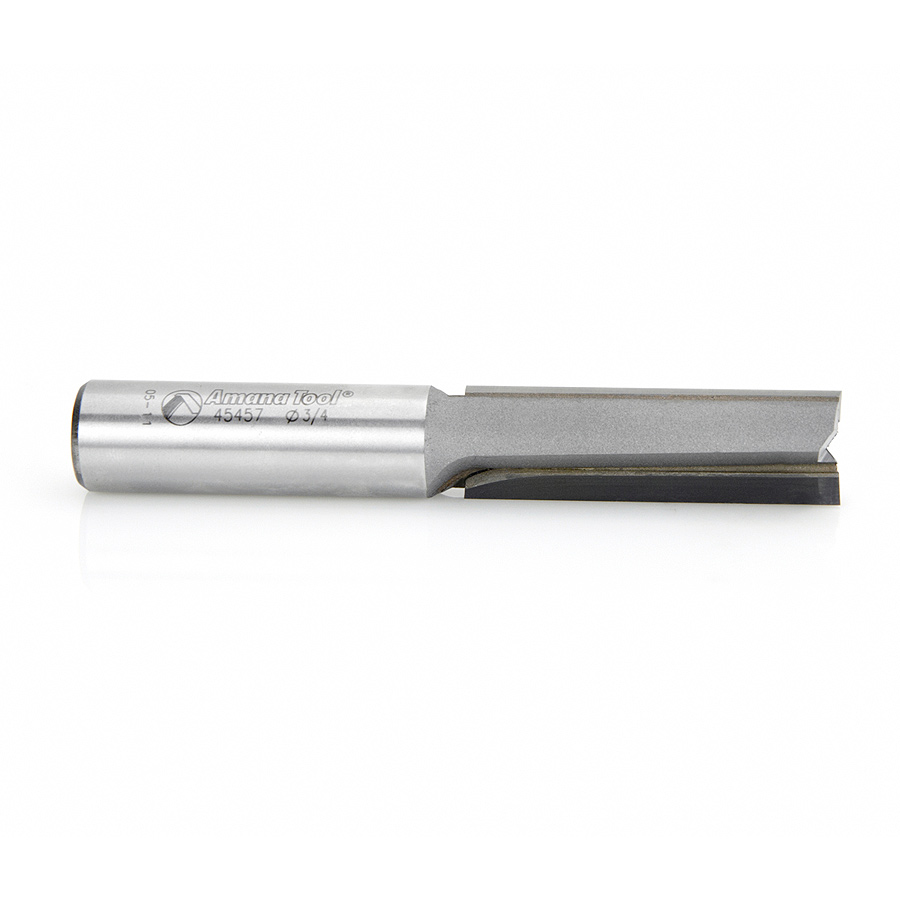

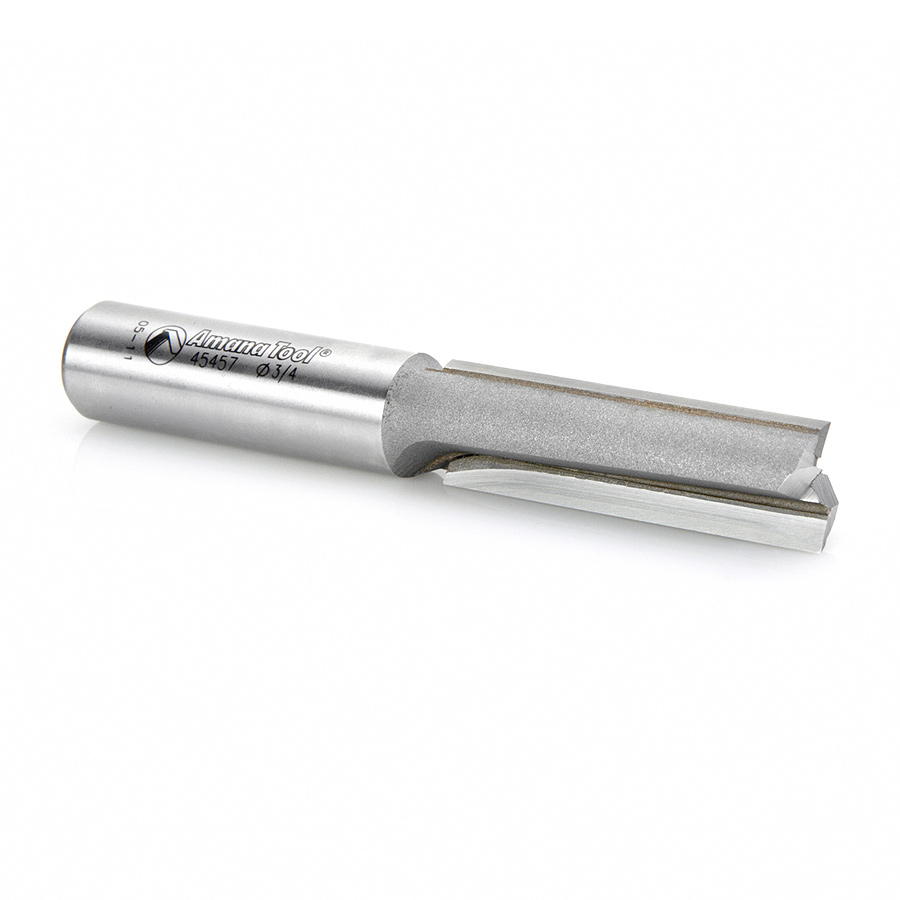

45457 CNC Carbide Tipped Straight Plunge High Production 3/4 Dia x 2-1/2 x 3/4 Shank L/H

$96.08

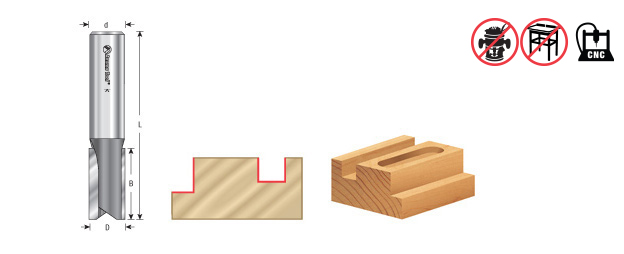

Diameter (D) 3/4
(B) Cutting Height 2-1/2
Shank (d) 3/4
Overall Length (L) 5
Type Left Hand
Flutes 2

Description

For high-volume production work with a CNC router use one of these plunge-cutting straights. Long, 3/4″ shanks extend the bit’s reach enhancing its versatility. Open-flute design promotes rapid chip clearance, necessary for high feed rates. Left-hand configuration for counter-clockwise rotation “Topmaster” machines.

Note: Chipbreaker option (special order): Designed to cut chipboard and MDF at high automatic feed rates found on CNC machines. Each flute is ground so that the chipbreakers are staggered to each other, giving a straight cut. To order, add ‘CB’ suffix (ie: #45454-CB).

Specifications

Diameter (D) 3/4
Cutting Height (B) 2-1/2
Shank (d) 3/4
Overall Length (L) 5
Type Left Hand
Flutes 2
