45508 Carbide Tipped Panel Pilot Concave Grind 3/8 Dia x 1 Inch x 3/8 Shank Single Flute
$24.36
Usually ships on the 2nd business day from order date.

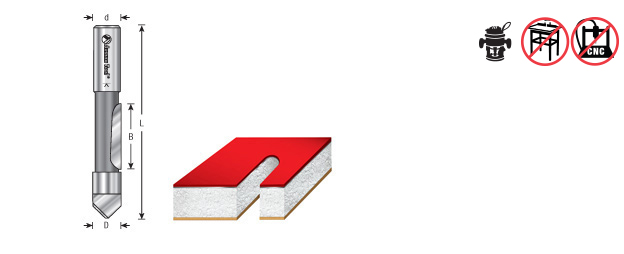

| Diameter (D) | 3/8 |
|---|---|
| Cutting Height (B) | 1 |
| Shank (d) | 3/8 |
| Overall Length (L) | 3 |
| Flutes | 1 |
Description
These panel pilot bits have a pointed tip for plunge cuts and a special grind for speed and an integral solid pilot. It is designed for fast cut-out work and is used extensively in the movile/motor homes, caravans, star wagons, trailers, coaches, RV industries and shed manufacturers.
The single-flute version cuts fast and produces an excellent finish.
Specifications
| Diameter (D) | 3/8 |
| Cutting Height (B) | 1 |
| Shank (d) | 3/8 |
| Overall Length (L) | 3 |
| Flutes | 1 |
