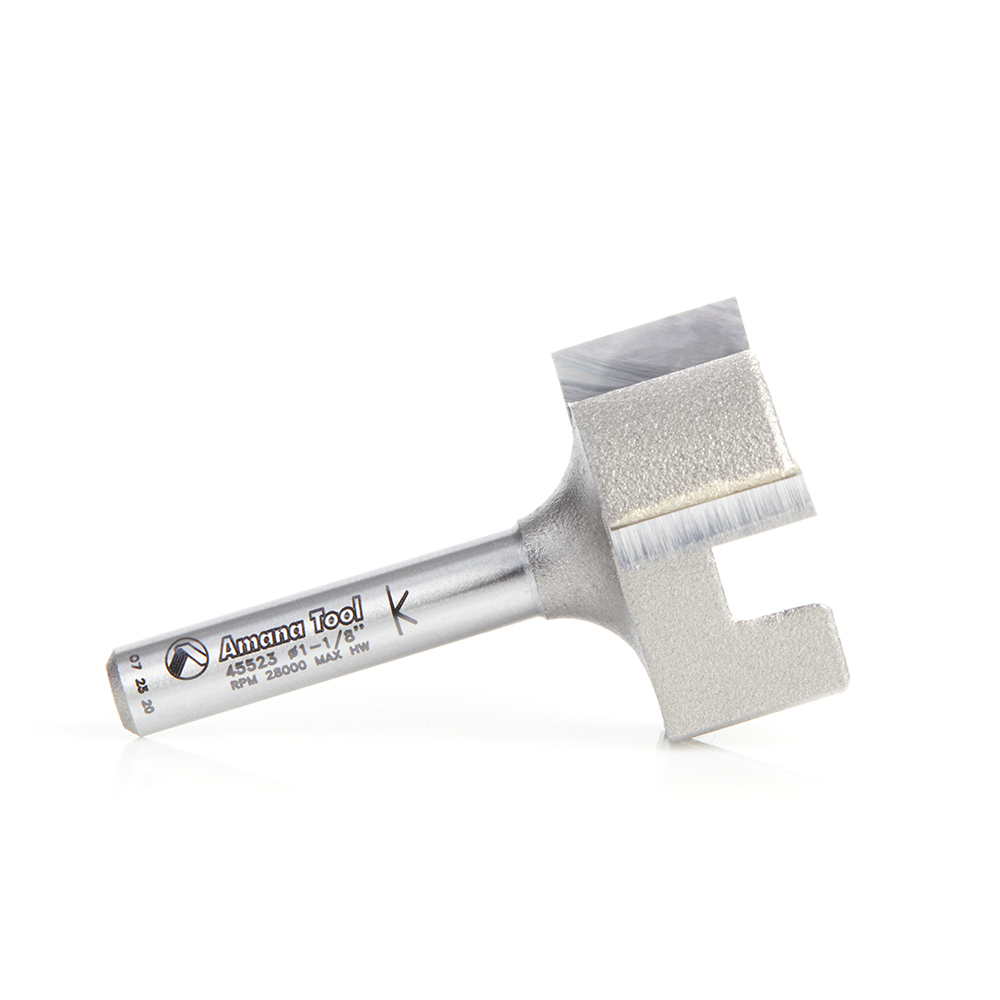

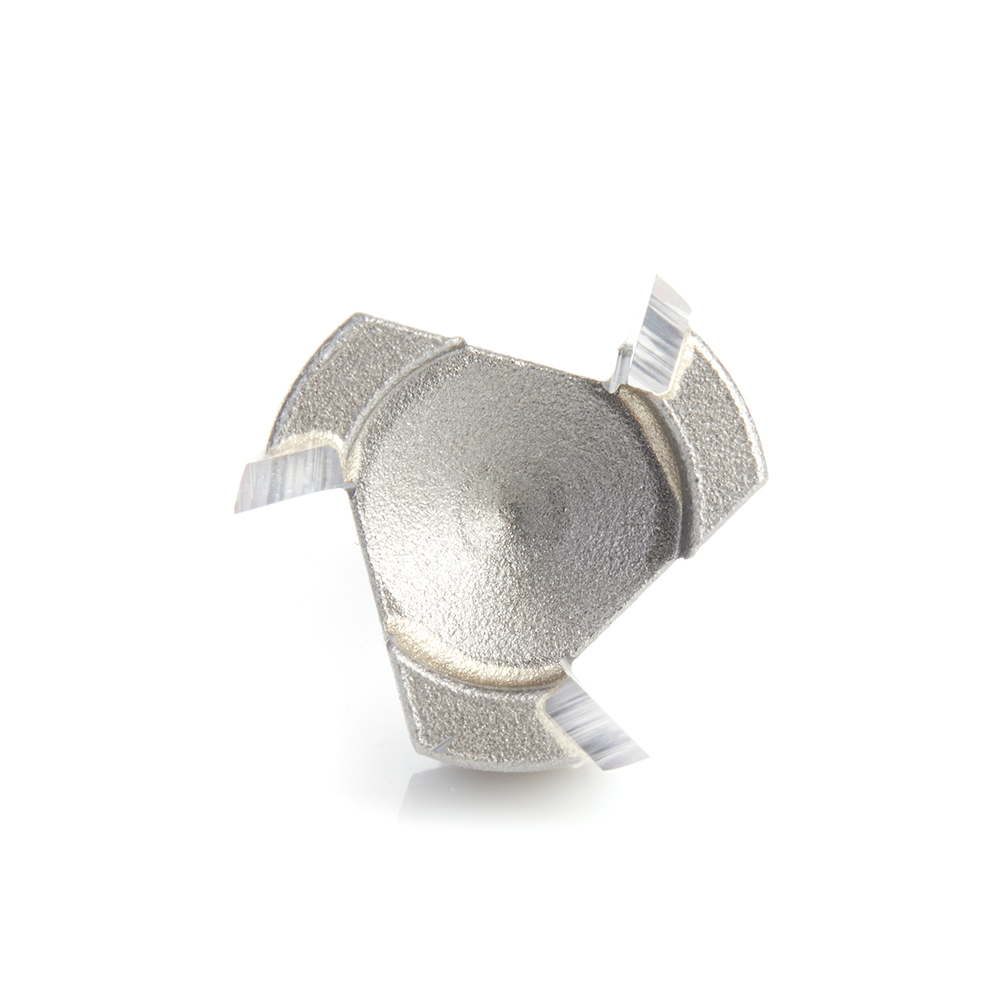

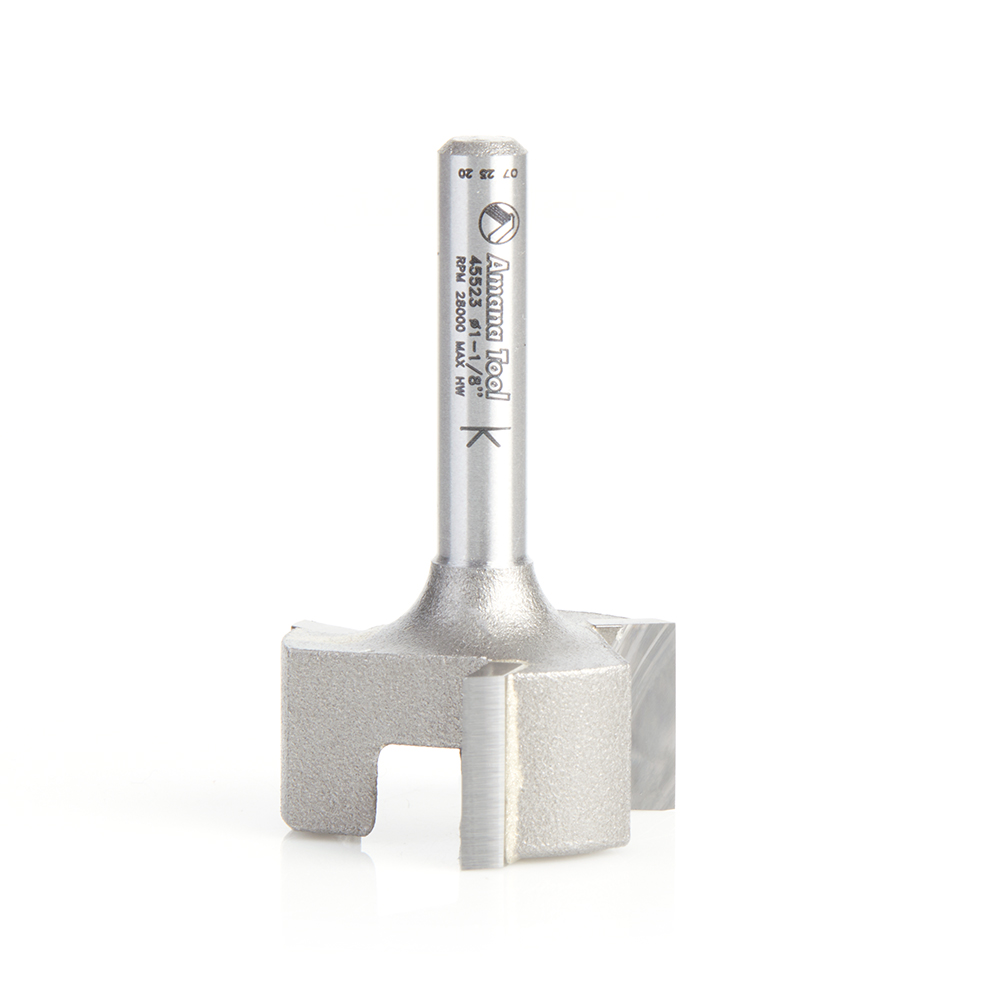

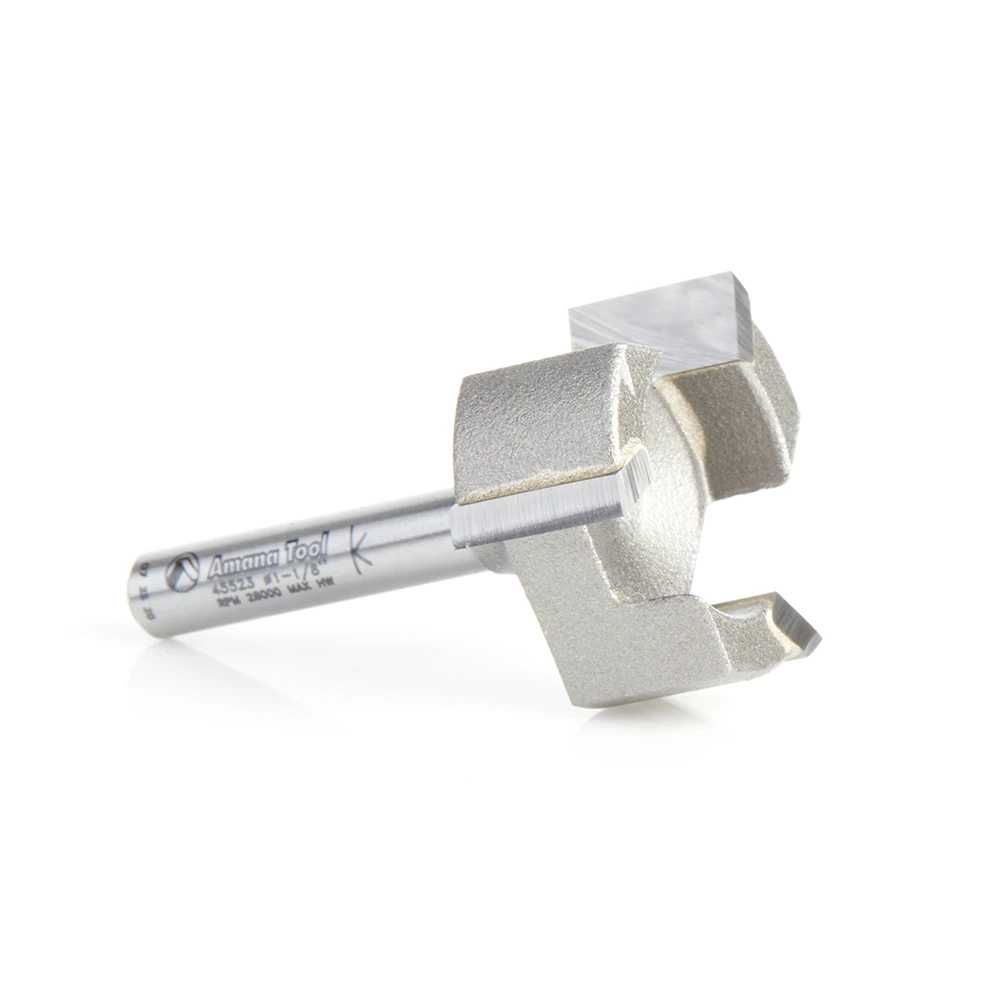

45523 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 28.5mm Dia x 12.5mm x 6mm Shank Router Bit

$46.98

Usually ships on the 2nd business day from order date.

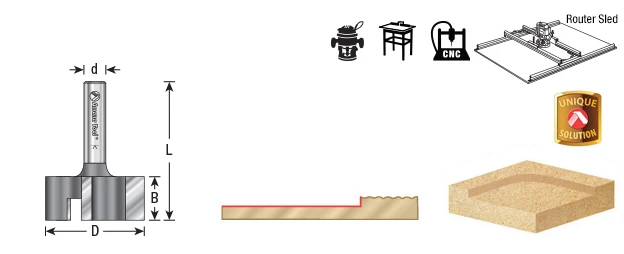

(D) Diameter 28.5mm
(B) Cutting Height 12.5mm
(d) Shank 6mm
Overall Length (L) 46mm
Max Rpm 28,000
Flutes 3
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685455234 SKU: 45523 Categories: , ,

Description

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

  • Resurfacing spoilboards using CNC
  • Planing large glued up panels using CNC
  • Surfacing and finishing wood using timber slab machines
  • Rabbeting or slotting

Designed for planing & rabbeting the following materials:

  • MDF
  • Fiberboard
  • HDF/LDF
  • Balsa Core
  • Plastic/Acrylic**
  • Chipboard
  • Hardwood/Softwood

**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.

Featuring:

  • Exclusive carbide grade for highest quality of cut
  • Maximum cutting efficiency
  • Faster material removal process

Specifications

(D) Diameter 28.5mm
(B) Cutting Height 12.5mm
(d) Shank 6mm
Overall Length (L) 46mm
Max RPM 28,000
Flutes 3
