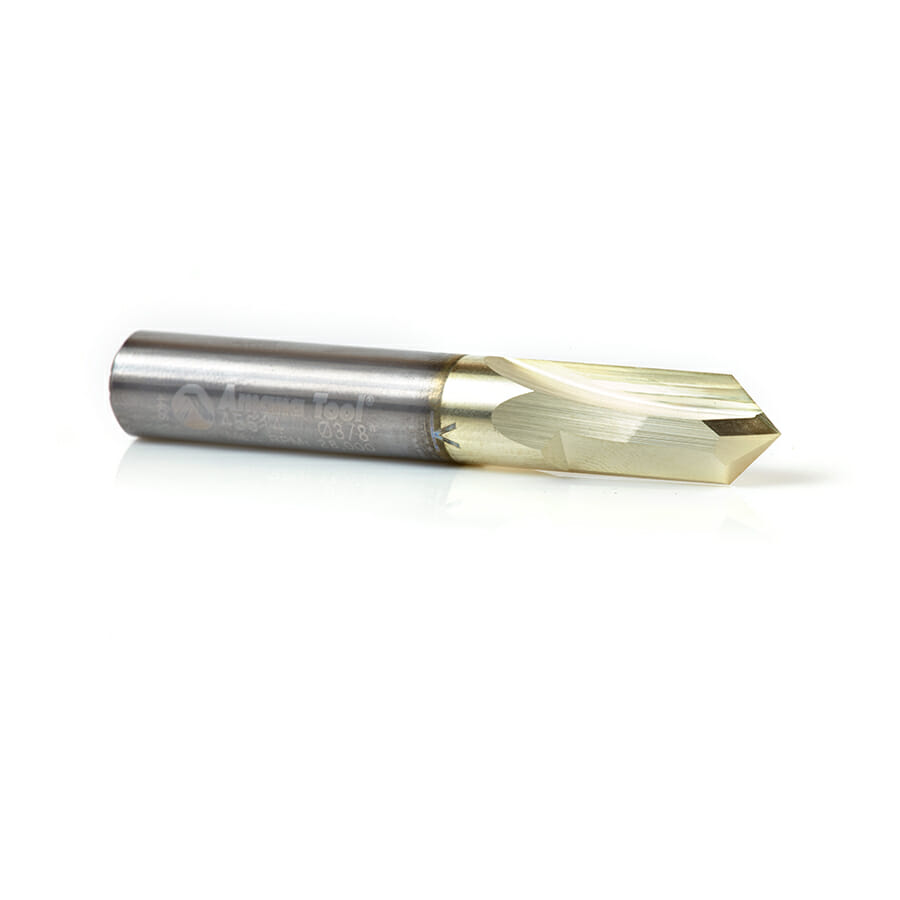

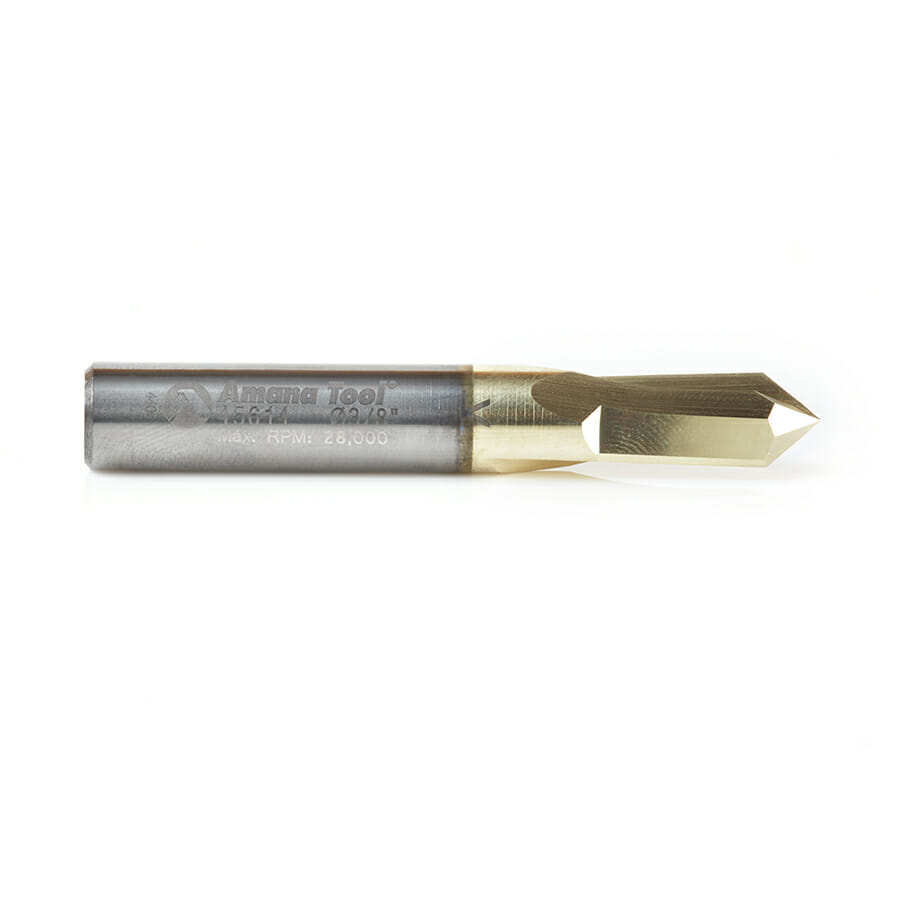

Zero-Point” 90 Degree Engraving 3/8 Dia x 3/16 x 3/8 Shank ZrN Coated Router Bit

$108.72

A Angle 90°
D Diameter 3/8
B Cutting Height 3/16
B1 3/4
D Shank 3/8
Overall Length L 2-1/2
Flutes 2
Chip Load 0.003" - 0.006"

Description

Designed for beveling or V-Grooving 90° the following materials:

Acrylonitrile-Butadiene-Styrene (ABS) Aluminum, Brass, Bronze, Copper, Gold & Silver Aluminum 5052 Composites Fomex® with Aluminum Face Hard Plastics Hardwood Laminated Chipboard/Plywood

MDF Non-Ferrous Metals P olycarbonate (Lexan™) † Solid Surfaces (Corian® Formica® ect) Soft Plastics Softwood Veneer

† Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™. Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting High resistance to wear Extended tool life Less friction & heat buildup High resistance to wear

Specifications

Diameter (D) 3/8
(a°) Angle 90°
Cutting Height (B) 3/4
Shank (d) 3/8
Overall Length (L) 2-1/2
b1 3/16
Flutes 2
Chip Load 0.003" - 0.006"
