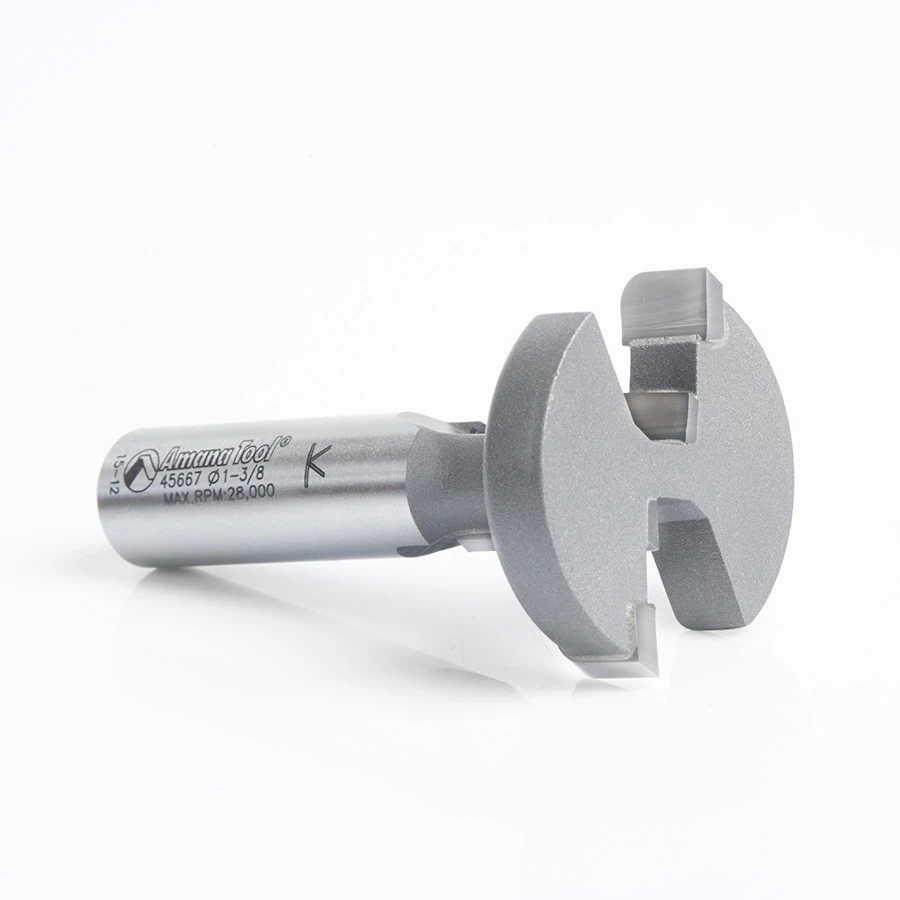

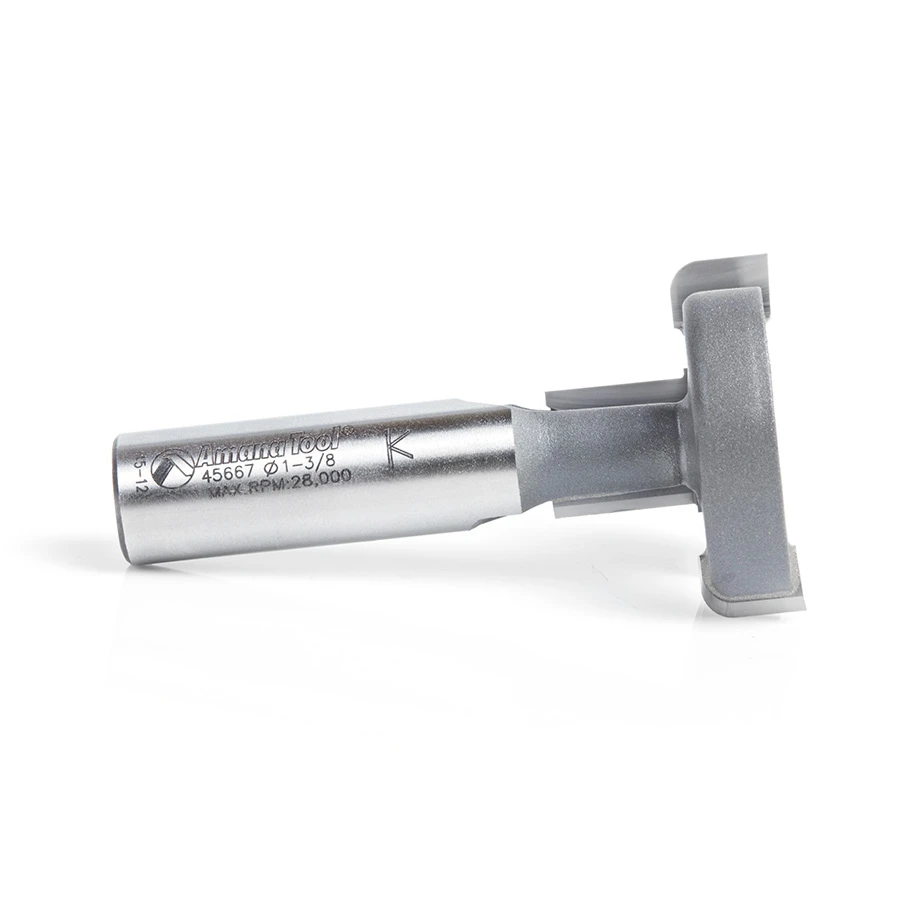

45667 T-Slot Rounded Edge 1-3/8 Dia x 7/8 x 1/2 Inch Shank

$104.52

Diameter (D) 1-3/8
D1 1/2
Radius (R) 1/8
(B) Cutting Height 7/8
B1 3/8
Shank (d) 1/2
Overall Length (L) 2-1/2
Type Radius
SKU: #45667 Categories: , ,

Description

Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.

Note: These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.

Specifications

Diameter (D) 1-3/8
D1 1/2
Radius (R) 1/8
Cutting Height (B) 7/8
B1 3/8
Shank (d) 1/2
Overall Length (L) 2-1/2
Type Radius
