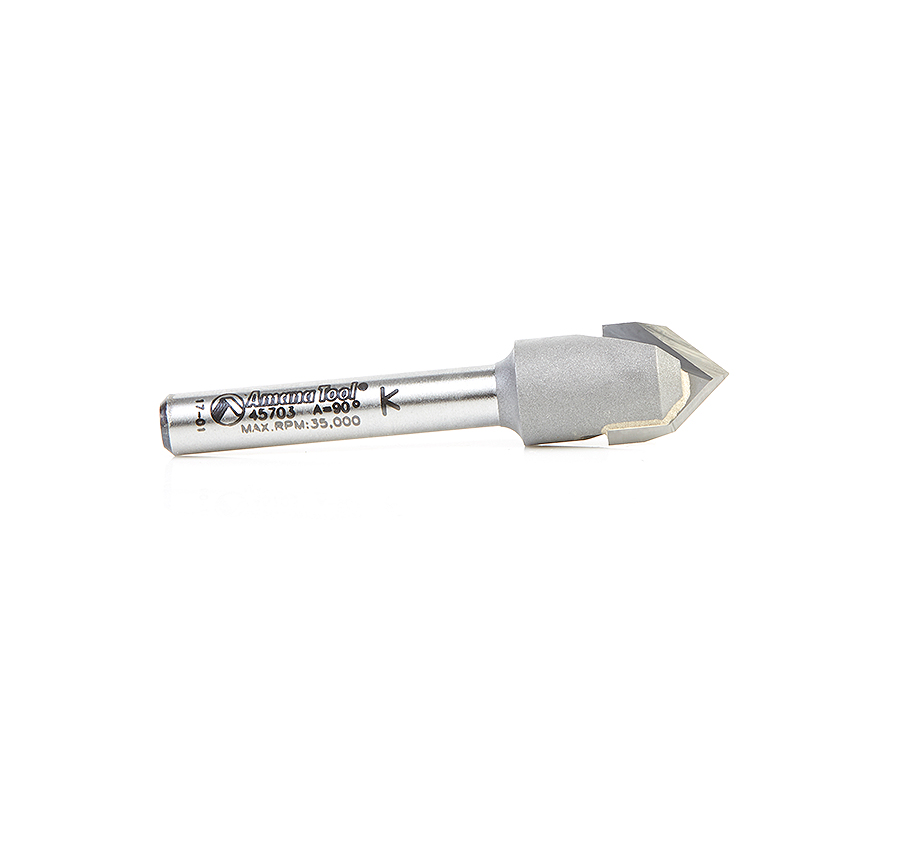

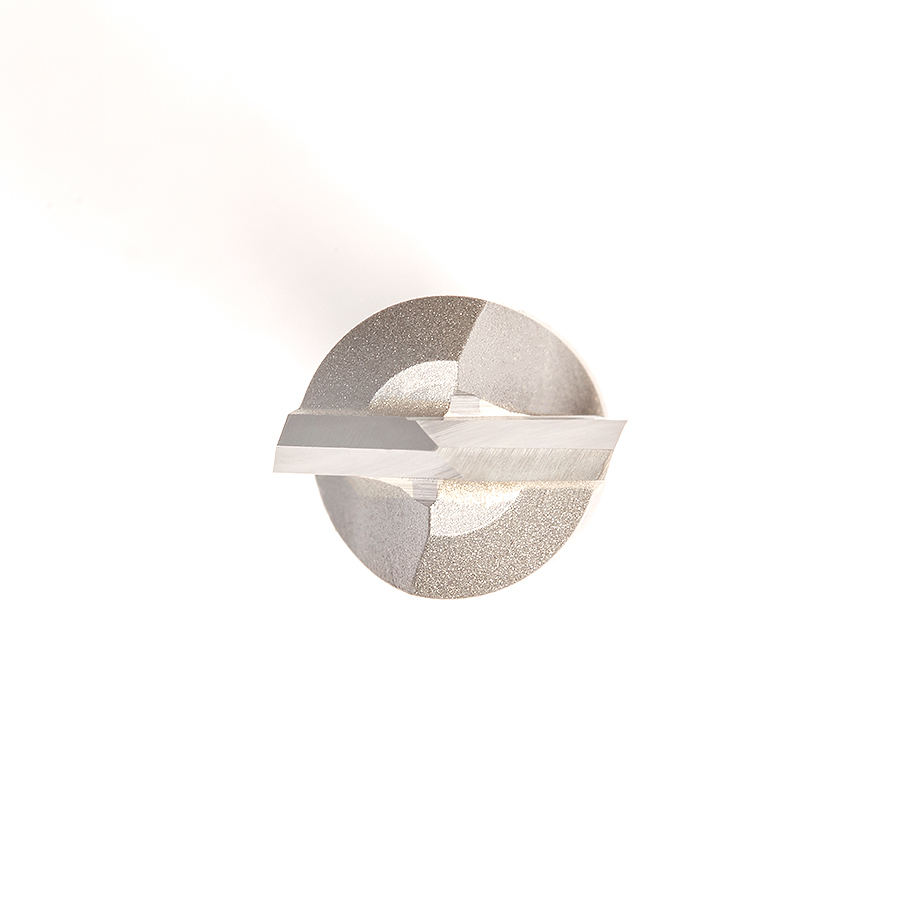

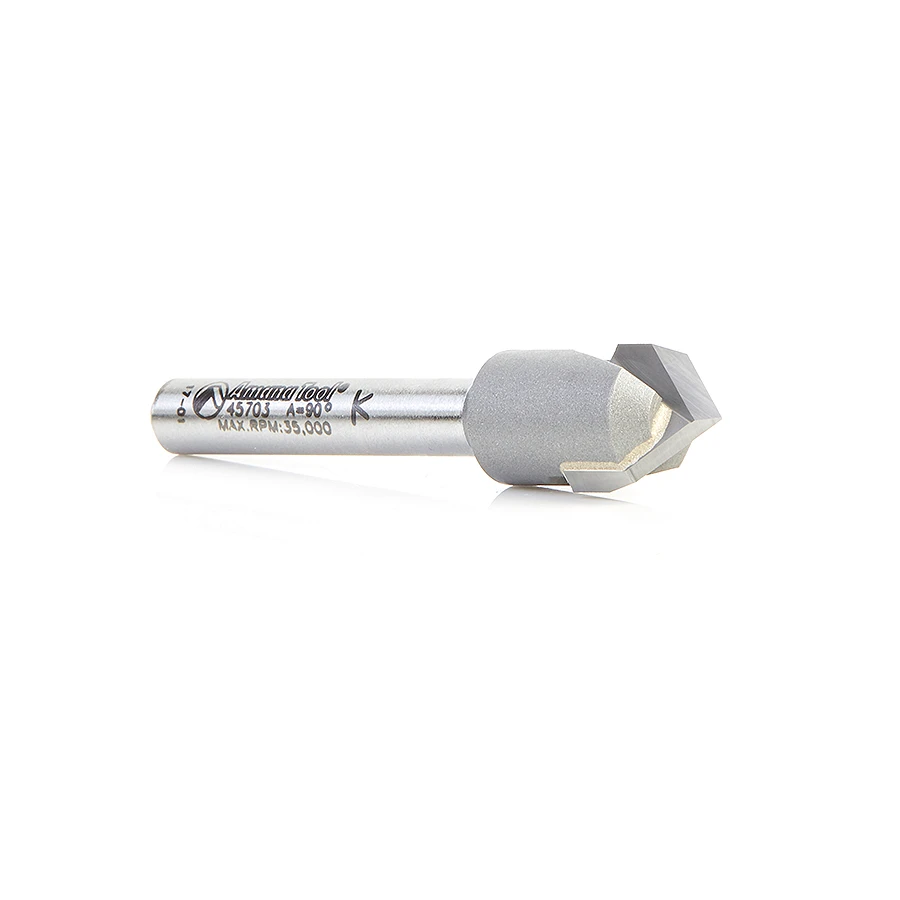

45703 Carbide Tipped “Zero Point” V-Groove 90 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank
$62.68
Usually ships on the 2nd business day from order date.
| D-diameter | 1/2 |
|---|---|
| A-angle | 90° |
| B-cutting-height | 1/2 |
| D-shank | 1/4 |
| Overall-length-l | 2-1/4 |
| B1 | 15/64 |
| Flutes | 2 |
Description
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
Specifications
| Diameter (D) | 1/2 |
| Angle (a°) | 90° |
| Cutting Height (B) | 1/2 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/4 |
| Overall Length (L) | 15/64 |
| Flutes | 2 |
