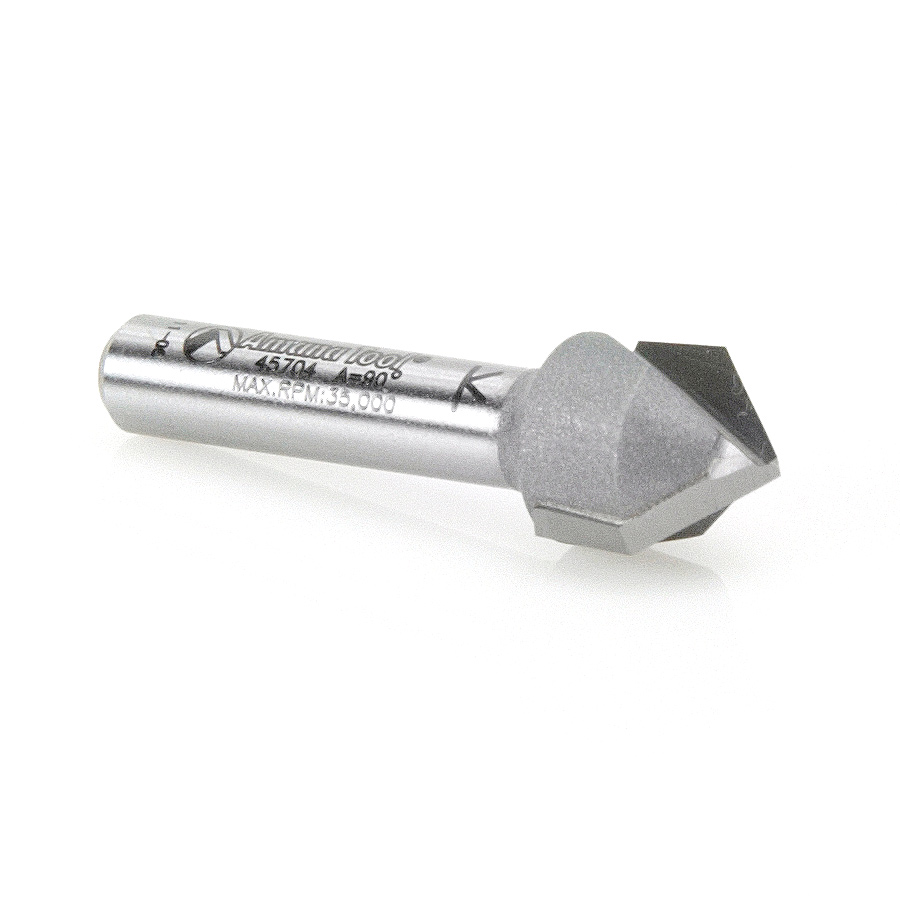

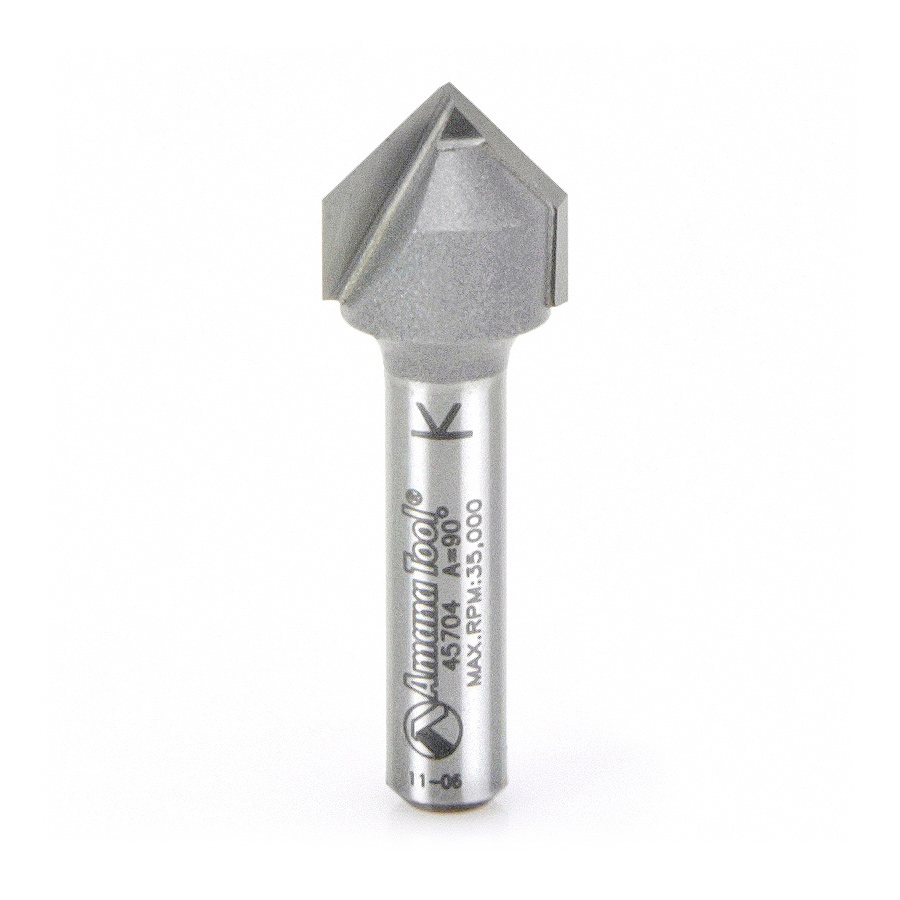

45704 Carbide Tipped V-Groove 90 Deg x 1/2 Dia x 1/4 x 1/4 Inch Shank

$58.53
Usually ships on the 2nd business day from order date.
Diameter-d 1/2
Angle-a 90°
Cutting-height-b 1/4
Shank-d 1/4
Overall-length-l 1-5/8
B1 1/2
Flutes 2
UPC: 738685857045.0 SKU: 45704 Categories: , ,
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

  • 20lbs High Density Urethane
  • Acrylic
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • PVC Plastic
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board

Specifications

Diameter (D) 1/2
Angle (a°) 90°
Cutting Height (B) 1/4
Shank (d) 1/4
Overall Length (L) 1-5/8
B1 1/2
Flutes 2
