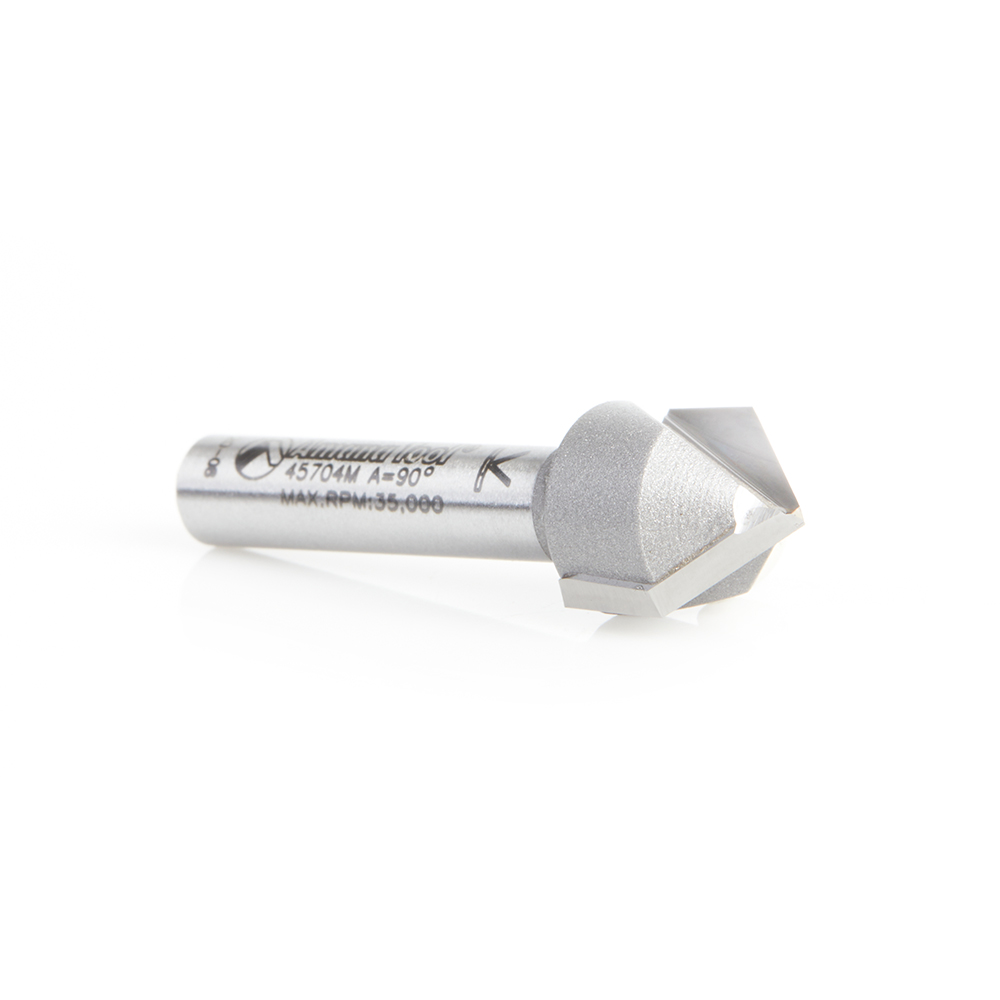

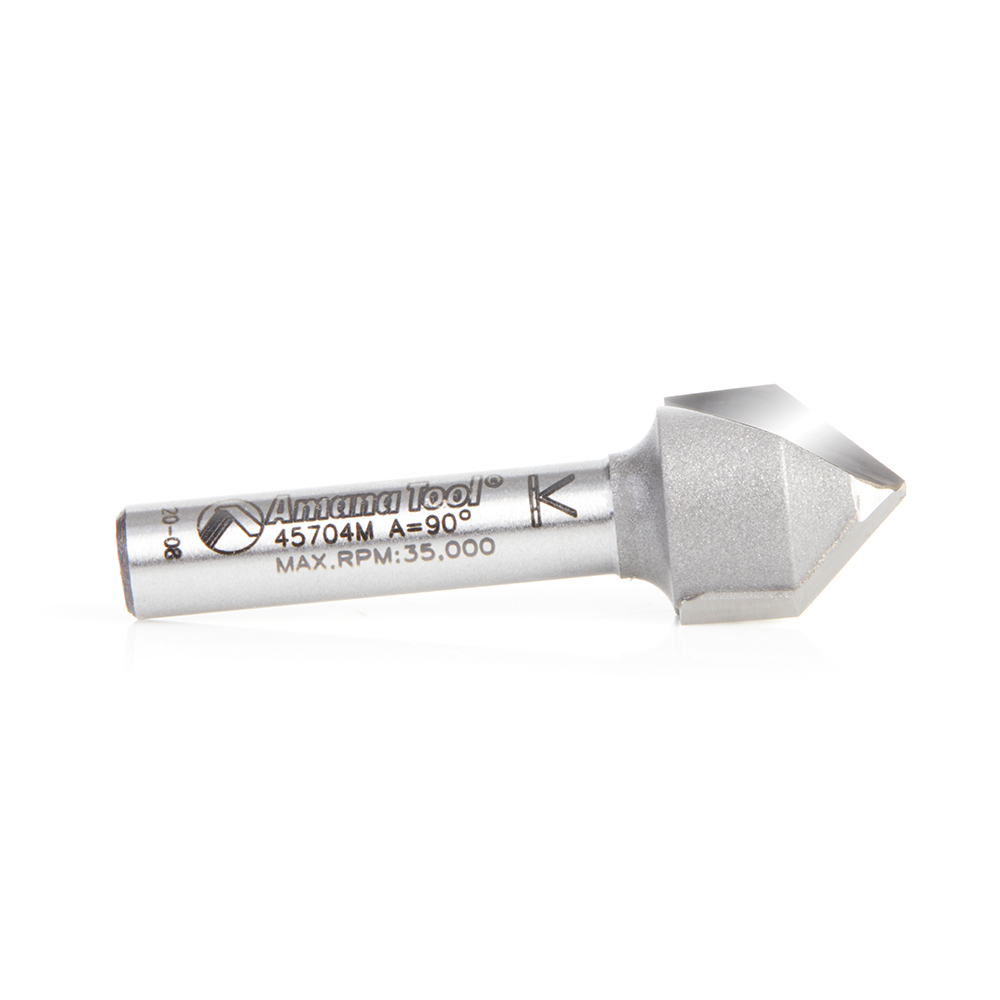

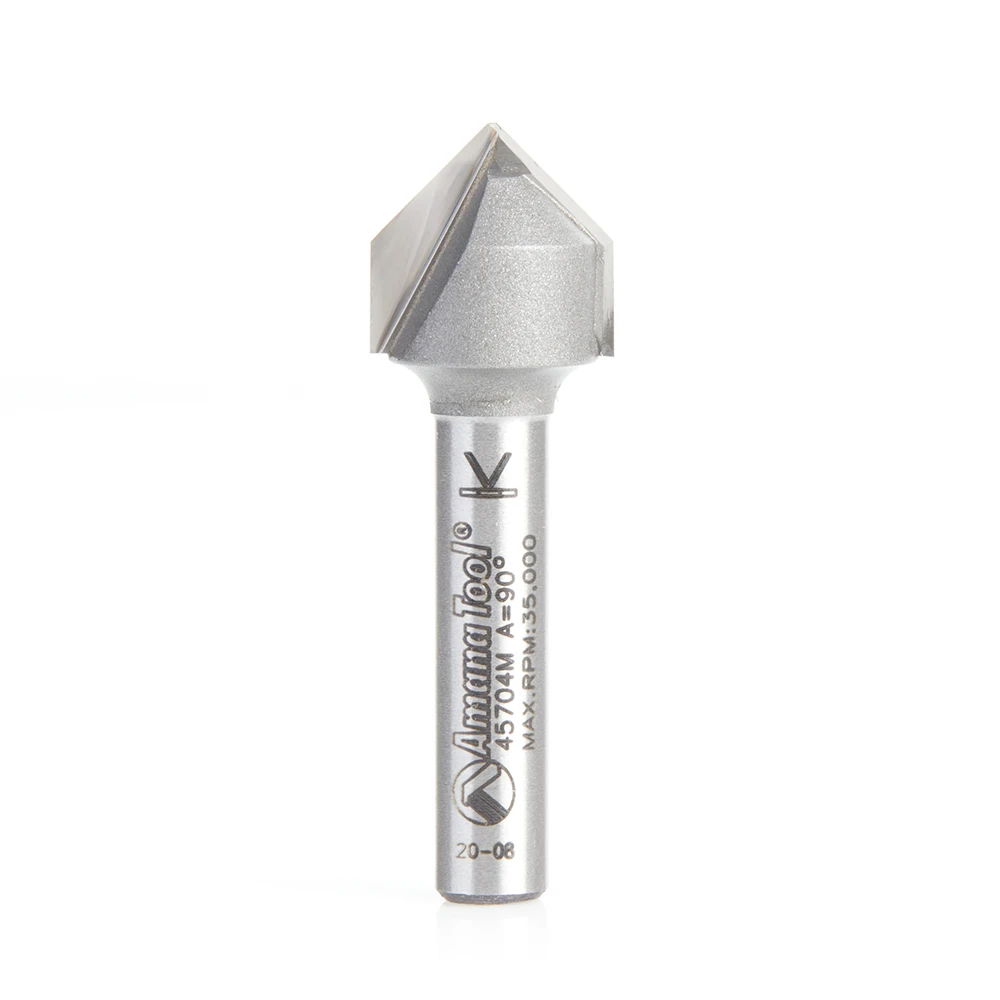

45704M Carbide Tipped V-Groove 90 Deg x 12.7mm Dia x 6mm x 6mm Shank
$64.36
Usually ships on the 2nd business day from order date.

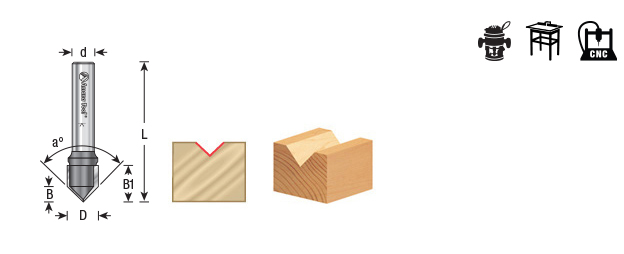

| Diameter-d | 12.7mm |
|---|---|
| Angle-a | 90° |
| Cutting-height-b | 6mm |
| Shank-d | 6mm |
| Overall-length-l | 41mm |
| B1 | 12.7mm |
| Flutes | 2 |
Description
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
Specifications
| Diameter (D) | 12.7mm |
| Angle (a°) | 90° |
| Cutting Height (B) | 6mm |
| Shank (d) | 6mm |
| Overall Length (L) | 41mm |
| B1 | 12.7mm |
| Flutes | 2 |
