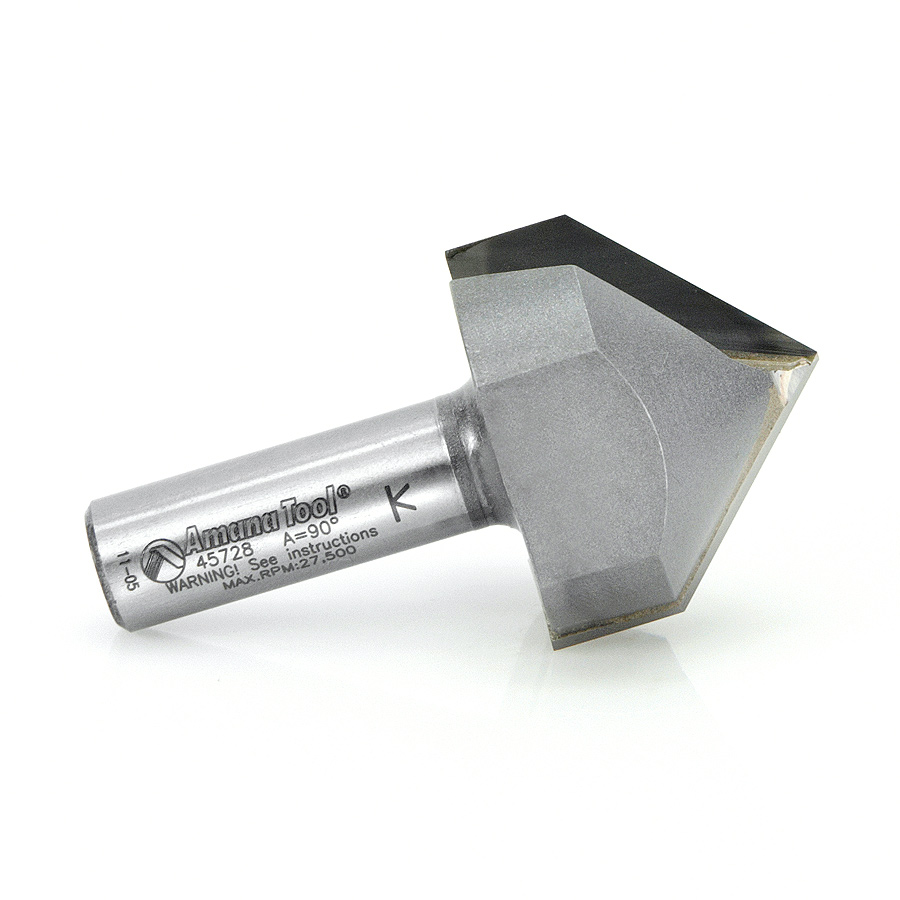

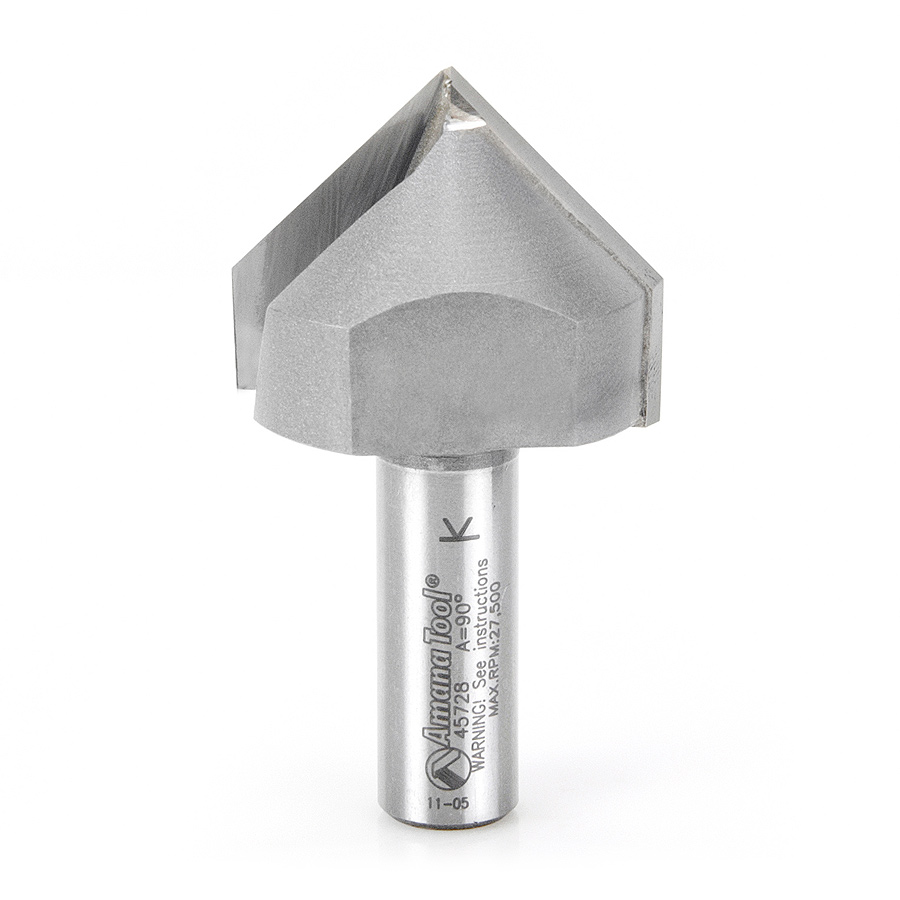

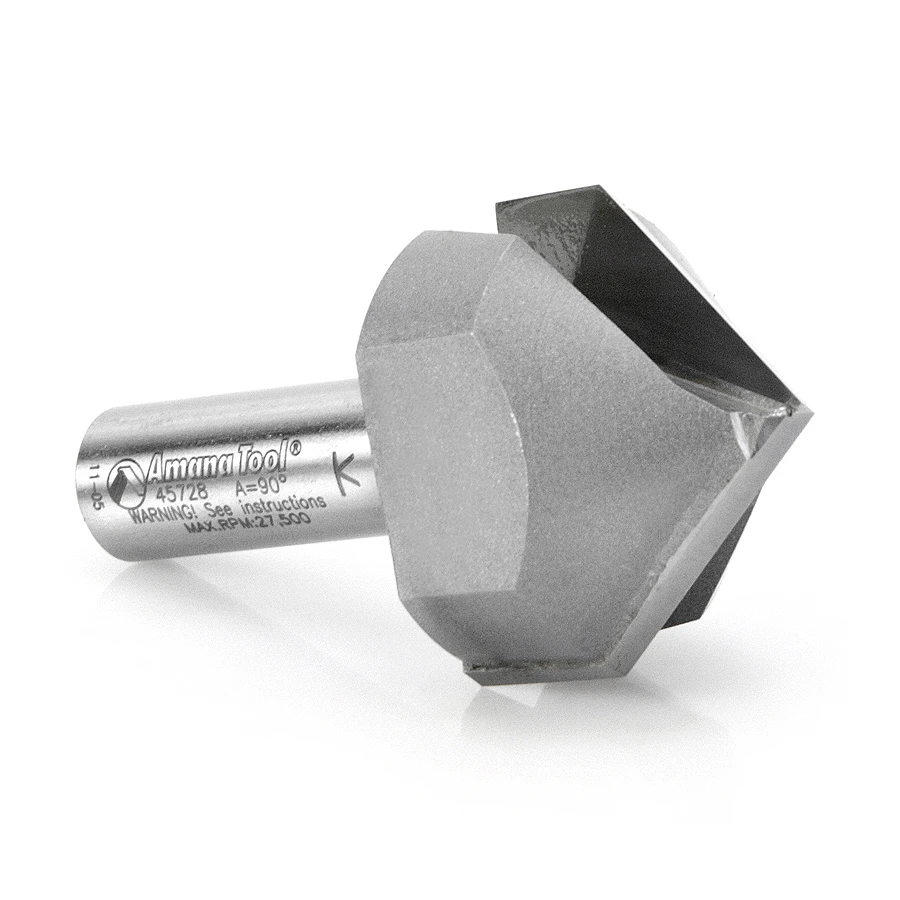

45728 Carbide Tipped V-Groove 90 Deg x 1-1/2 Dia x 3/4 Inch x 1/2 Shank
$147.63
Usually ships on the 2nd business day from order date.
| Diameter-d | 1-1/2 |
|---|---|
| Angle-a | 90° |
| Cutting-height-b | 3/4 |
| Shank-d | 1/2 |
| Overall-length-l | 2-3/4 |
| B1 | 1-1/4 |
| Flutes | 2 |
Description
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
Not for use in a handheld router!
Specifications
| Diameter (D) | 1-1/2 |
| Angle (a°) | 90° |
| Cutting Height (B) | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/4 |
| B1 | 1-1/4 |
| Flutes | 2 |
