45749 Carbide V-Groove 108 Deg. Folding for Composite Material Panels Like SCM & TCM 0.090 Inch Tip Width x 5/32 x 1/2 Dia. x 1/4 Inch Shank AlTiN Coated Router Bit

$104.52

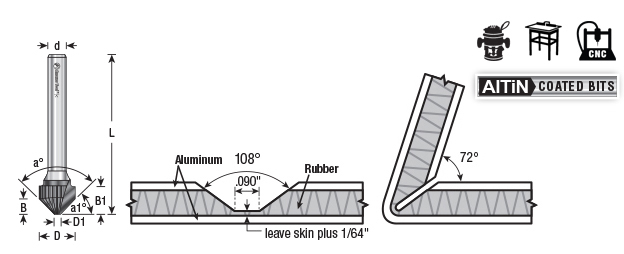

Angle (a°) 108°
A1° 36°
Diameter (D) 1/2
D1 0.090"
Cutting Height (B) 5/32
B1 3/8
Shank (d) 1/4
Overall Length (L) 2-1/8
Max Rpm 28,000
Type AlTiN Coated V-Groove
Flutes 2
RPM 18,000 - 24,000

Description

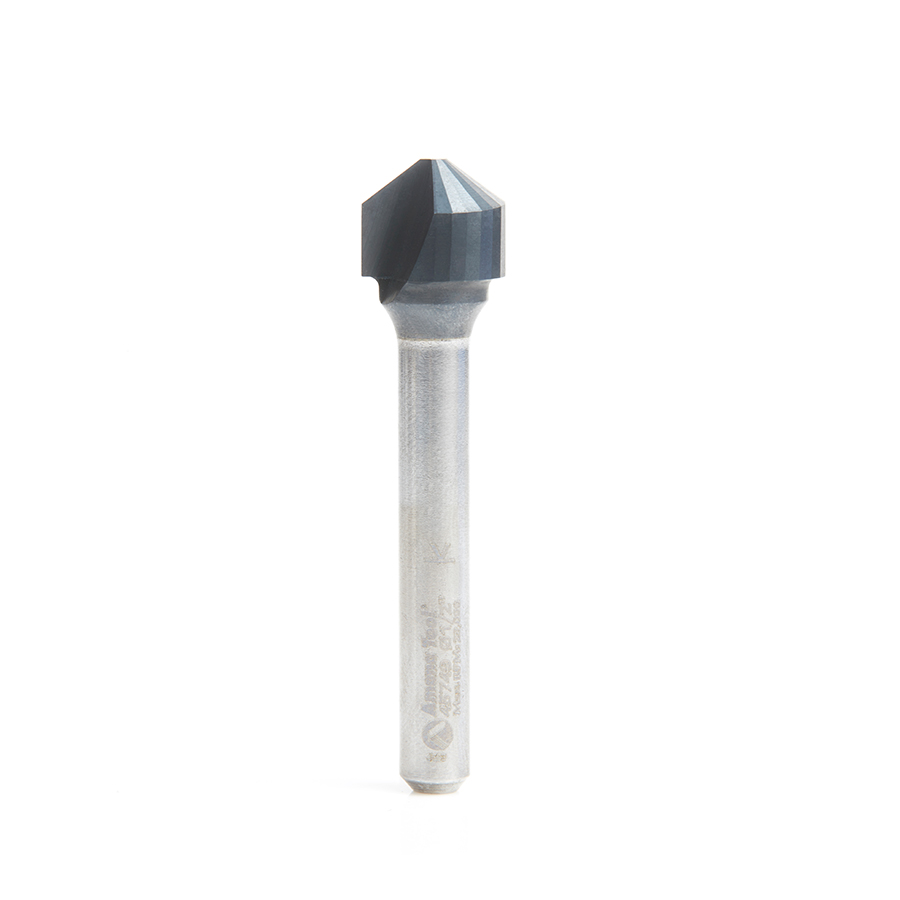

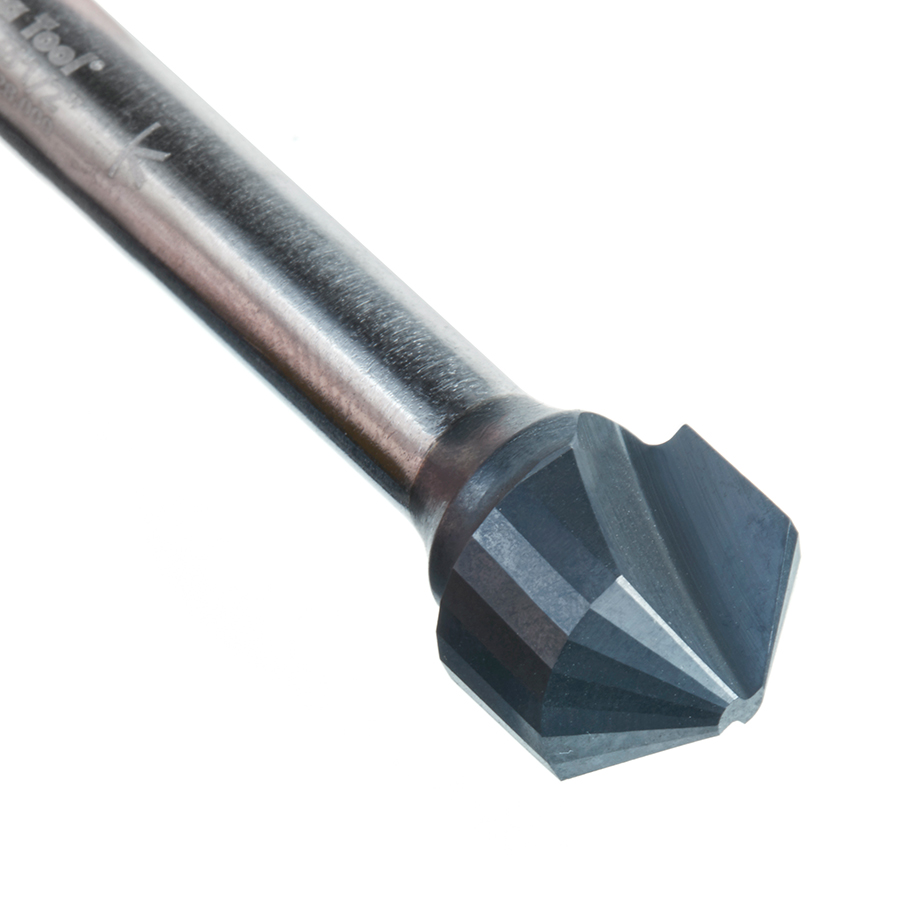

The carbide cutting tip is brazed to a steel shank specially designed to cut grooves in composite building materials. These bits are widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped grooves, whereby the steel cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand.

Designed for cutting and scoring steel sandwich materials including:

  • Metal Composite Material (MCM)
  • Steel Composite Material (SCM)
  • Titanium Composite Material (TCM)

AlTiN coating has many benefits:

  • Extra wear resistance
  • Allows for faster feed and speed rates
  • Cutting edge protected from wear
  • Better chip evacuation
  • Less heat build up
  • Superior cutting quality and extended tool life

Specifications

Angle (a°) 108°
a1° 36°
Diameter (D) 1/2
D1 0.090"
Cutting Height (B) 5/32
B1 3/8
Shank (d) 1/4
Overall Length (L) 2-1/8
Max RPM 28,000
Type AlTiN Coated V-Groove
Flutes 2
RPM 18,000 - 24,000
